SIM800L GSM GPRS Module with PCB Board and Antenna
Negotiable
/ Piece
10 Pieces(Min. Order)
You May Like
-
SIMCOM SIM7000C-N Multi-Band LTE-FDD NB-IoT Module
-
SIM7600E Multi-Band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module LTE CAT4 Mini PCIE SIM7600E-H
-
GSM GPRS Module SIM800C
-
Sierra Wireless AirPrime WISMO228 Module
-
SIM800C Development Board GSM GPRS Module
-
SIMCOM 5G Module SIM8200EA-M2, SIM8200CE-M2 SIM8200EA 5G IoT Module
Product Description
Product Description

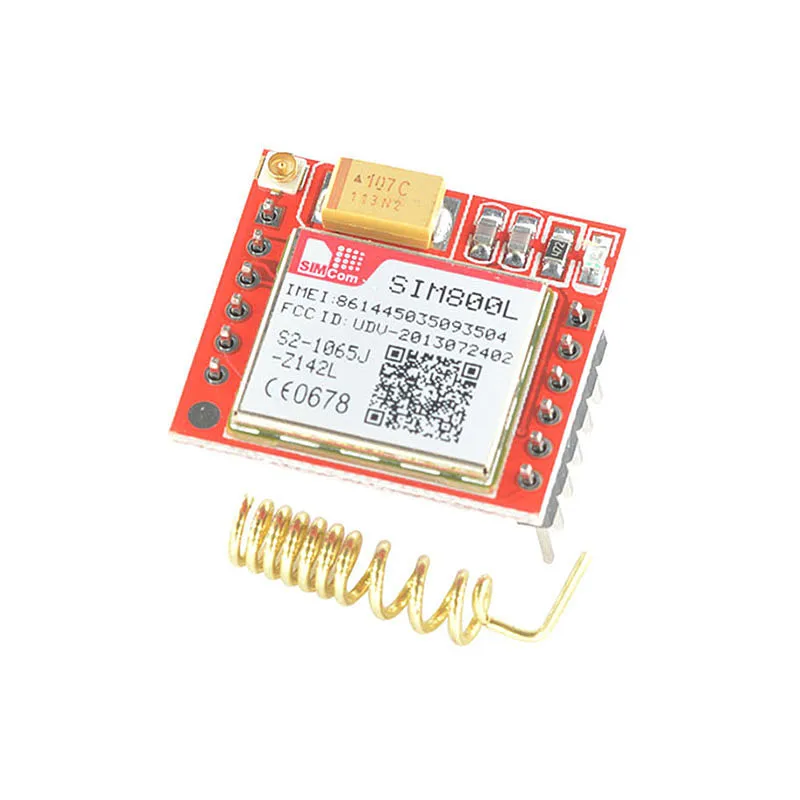

SIMCOM SIM800L Quad-band GSM GPRS Module with PCB Board and Antenna
• Module Type: SIM800L (latest module performance over SIM900 / M590);
• Operating voltage: 3.7 ~ 4.2V (peak current 1A, please do processing);
• Support Network: quad-band global network;
• Module size: 2.5cmx2.3cm;
• Serial to TTL serial port can be used with a direct link to the microcontroller;
• The module is powered automatic start, homing network;
• Onboard signal lights all the way (the signal slow flash, no flash signal);
• The world's smallest size, by no less than the module of the GSM module;
• Full chip processing machine, reflow soldering, stable performance Factory Outlet;
• Lithium battery power supply can supply power directly, can also use the 5V power supply.
• Operating voltage: 3.7 ~ 4.2V (peak current 1A, please do processing);
• Support Network: quad-band global network;
• Module size: 2.5cmx2.3cm;
• Serial to TTL serial port can be used with a direct link to the microcontroller;
• The module is powered automatic start, homing network;
• Onboard signal lights all the way (the signal slow flash, no flash signal);
• The world's smallest size, by no less than the module of the GSM module;
• Full chip processing machine, reflow soldering, stable performance Factory Outlet;
• Lithium battery power supply can supply power directly, can also use the 5V power supply.
General features
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900 MHz)
– Class 1 (1 W @ 1800/1900MHz)
• FM: 76~109MHz worldwide bands with 50KHz tuning step
• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40°C~85°C
• AT cellular command
• Certifications(Plan): CE, GCF, FCC, ROHS, REACH
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900 MHz)
– Class 1 (1 W @ 1800/1900MHz)
• FM: 76~109MHz worldwide bands with 50KHz tuning step
• Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40°C~85°C
• AT cellular command
• Certifications(Plan): CE, GCF, FCC, ROHS, REACH
