Home > Electrical & Electronics > Telecommunication & Broadcasting > WiFi Products > SIM5300E 3G Module Development Board Quad-band GSM GPRS GPS SMS SIM5300E EVB KIT

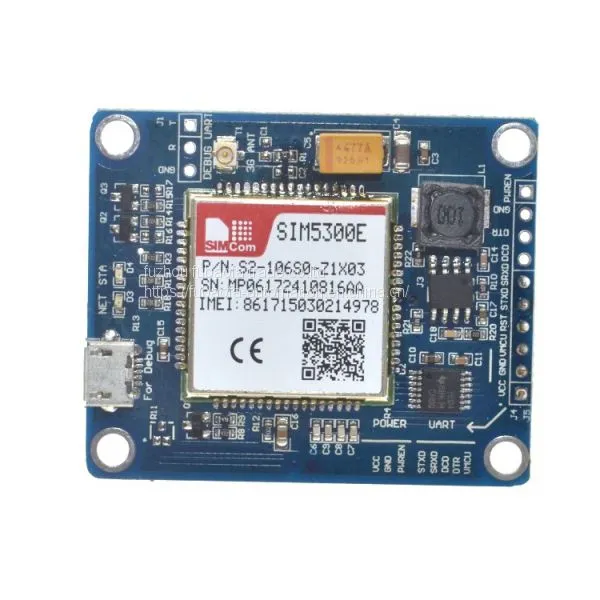

SIM5300E 3G Module Development Board Quad-band GSM GPRS GPS SMS SIM5300E EVB KIT
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2006
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIM7020 SIM7020E Development Board B1/B3/B5/B8/B20/B28 Development KIT LTE NB-IoT SMT Type M2M ModuleNegotiableMOQ: 10 Pieces -
SIM7600G-H-PCIE Multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module, SIM7600G-H (LCC) With PCIE Adapter BoardNegotiableMOQ: 10 Pieces
-
SIM7500JE-PCIE WCDMA 3G 4G LTE Module LTE-FDD B1/B8 GNSS GPS Module, SIM7500JE With MINI PCIENegotiableMOQ: 10 Pieces
-
Sierra Mc9090 Gsm Gprs Wireless Rf Quad-Band Receiver Charger ModuleNegotiableMOQ: 10 Pieces
-
HUAWEI LTE B2B Module ME909s-821 PCIENegotiableMOQ: 10 Pieces
WCDMA/HSPA ModuleThe SIM5300E is a Dual-Band HSPA/WCDMA and Dual-Band GSM/GPRS/EDGE module in a SMT type which supports HSPA up to 7.2Mbps for downlink and 5.76Mbps for uplink data transfer.It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, etc. With abundant application capability like TCP/UDP/PPP/HTTP/FTP/MMS/EMAIL, the module providesmuch flexibility and ease of integration for customer’s application. General features•Dual-Band UMTS/HSPA900/2100MHz Dual-Band GSM/GPRS/EDGE 900/1800MHz •GPRS multi-slot class 12 •EDGE downlink only •Output power -UMTS 900/2100: 0.25W -GSM900: 2W -DCS1800: 1W •Control Via AT Commands •Supply voltage range: 3.4V~ 4.4V •Operation temperature: -40℃to +85℃ •Dimension: 24X24X 2.4mm •Weight: 3.0gSpecifications for Data transfer•HSPA -Max. 7.2Mbps(DL), Max.5.76Mbps(UL) •WCDMA -Max.384Kbps(DL), Max.384Kbps(UL) •EDGE Class: -Max. 236.8Kbps(DL), •GPRS -Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)Specifications for SMS•Point to point MO and MT •Text and PDU mode
Other features•USB Driver for Microsoft Windows Vista/7/8/10 •USB Driver for Linux/Android •Firmware update via USB •TCP/IP/PPP •HTTP/FTP •MMS/EMAILInterfaces •USB2.0 •UART •SIM card •I2C •GPIO •RTC •ADC Certifacations•CE
