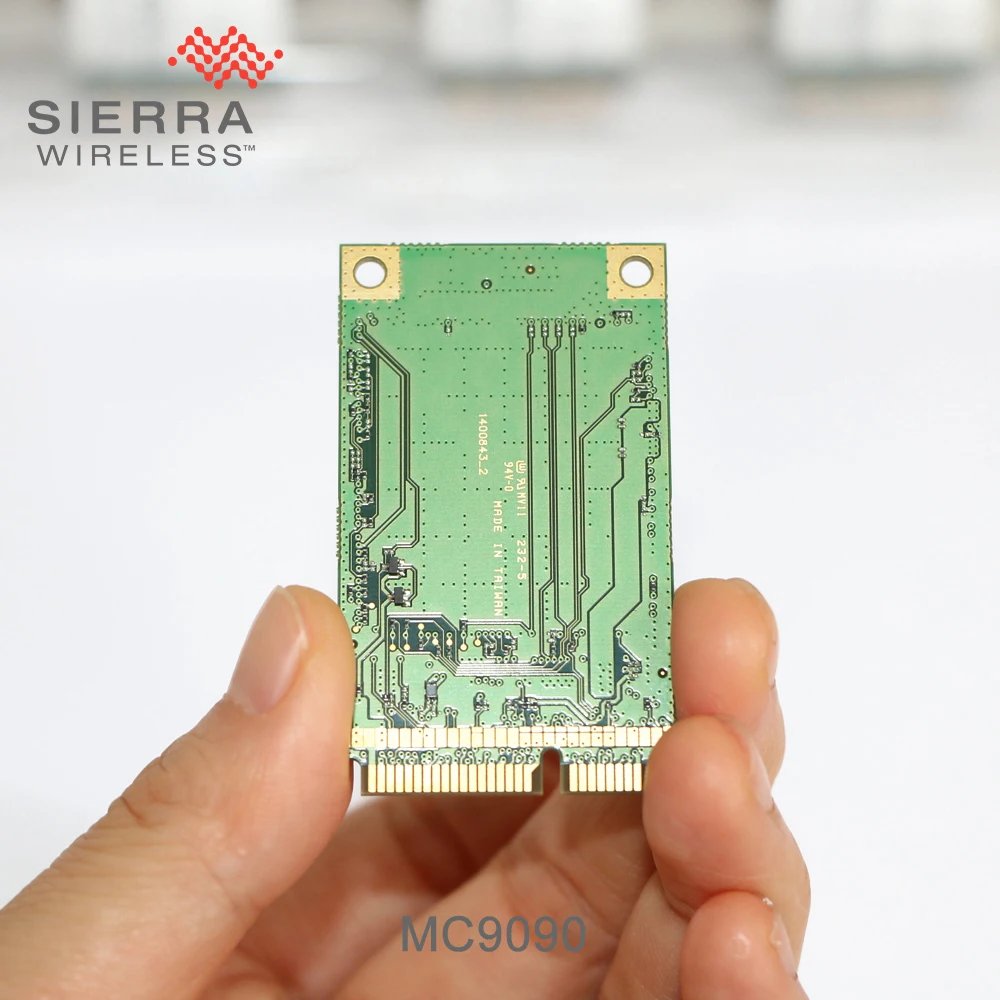

Sierra Mc9090 Gsm Gprs Wireless Rf Quad-Band Receiver Charger Module
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2006
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HUAWEI LTE B2B Module ME909s-821 PCIENegotiableMOQ: 10 Pieces -
Wireless Module EM7455 EM7430 EM7305 3G 4G LTE GPS ModuleNegotiableMOQ: 10 Pieces
-
Wireless Lan Card for Intel Centrino Advanced-N 6235 6235ANHMW 6235AN Bluetooth 4.0 Mini PCI-E 2.4G/5Ghz Wlan+BT 4.0 05K9GJNegotiableMOQ: 10 Pieces
-
Atheros QCA9377 Dual Band AC WIFI Module Adapter WIFI Mini PCI-E 2.4G / 5GNegotiableMOQ: 10 Pieces
-
IPX IPEX I-PEX U.Fl MHF4 To SMA Female Extension CableNegotiableMOQ: 10 Pieces
Features
· Air interface: 3G-HSPA+ with Rx Diversity, 3G-CDMA EVDO Rev A, 2G-GSM/GPRS/EDGE, GPS
· 3G-HSPA+ bands: 800/850/1900/2100 MHz
· 3G-CDMA EVDO bands: 800/1900 MHz
· 2G bands: 850/900/1800/1900 MHz
· Peak data rate: DL 14.4 Mbps, UL 5.76 Mbps
· GPS: Qualcomm
· Form factor: PCIe Mini Card F1, 51x30x4.5mm
· Supply Voltage: 3.3 V nominal
· Operating Temperature: -40C to +85C
Control, software and features
· Control options: AT Commands, Gobi API, Linux SDK
· Drivers: Android, Linux, Windows
· Internet services: TCP, UDP
Connectors
· System connector: 52 position Mini PCIe
· Antenna RF connector: 3x U.FL (Main RF, Aux RF, GPS)
Interfaces
· UART: 1x 8 wire
· USB: 1x 2.0 High Speed
· Main Radio Disable
· Vref: 1.8 V
· GPIO: up to 4
· Flash LED output
· SIM interface: 1.8/3V
Audio
· Digital audio: PCM
· Echo cancellation
· Noise reduction
· DTMF
· Air interface: 3G-HSPA+ with Rx Diversity, 3G-CDMA EVDO Rev A, 2G-GSM/GPRS/EDGE, GPS
· 3G-HSPA+ bands: 800/850/1900/2100 MHz
· 3G-CDMA EVDO bands: 800/1900 MHz
· 2G bands: 850/900/1800/1900 MHz
· Peak data rate: DL 14.4 Mbps, UL 5.76 Mbps
· GPS: Qualcomm
· Form factor: PCIe Mini Card F1, 51x30x4.5mm
· Supply Voltage: 3.3 V nominal
· Operating Temperature: -40C to +85C
Control, software and features
· Control options: AT Commands, Gobi API, Linux SDK
· Drivers: Android, Linux, Windows
· Internet services: TCP, UDP
Connectors
· System connector: 52 position Mini PCIe
· Antenna RF connector: 3x U.FL (Main RF, Aux RF, GPS)
Interfaces
· UART: 1x 8 wire
· USB: 1x 2.0 High Speed
· Main Radio Disable
· Vref: 1.8 V
· GPIO: up to 4
· Flash LED output
· SIM interface: 1.8/3V
Audio
· Digital audio: PCM
· Echo cancellation
· Noise reduction
· DTMF
