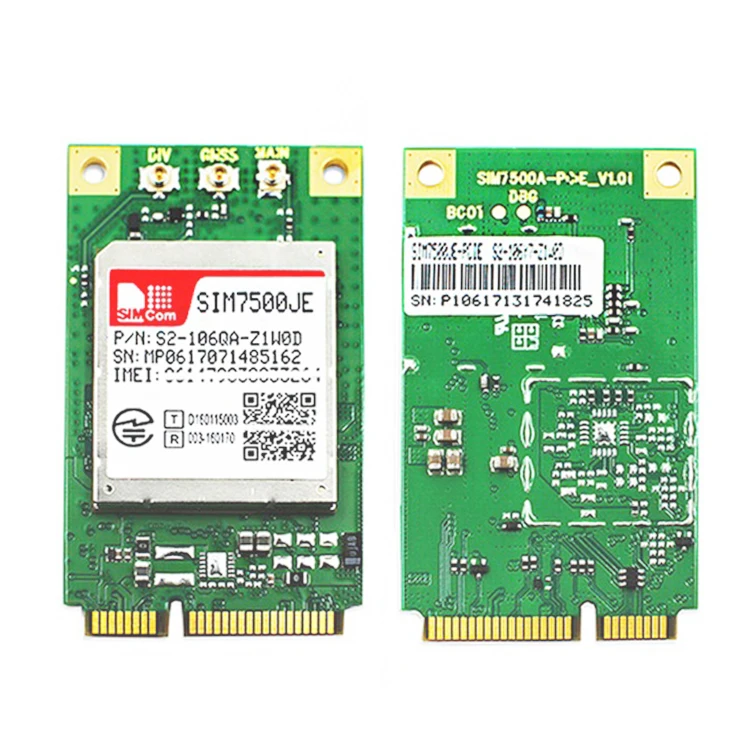

SIM7500JE-PCIE WCDMA 3G 4G LTE module LTE-FDD B1/B8 GNSS GPS Module, SIM7500JE with MINI PCIE
Negotiable
/ Piece
10 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
You May Like
-
Sierra Mc9090 Gsm Gprs Wireless Rf Quad-Band Receiver Charger Module
-
HUAWEI LTE B2B Module ME909s-821 PCIE
-
wireless module EM7455 EM7430 EM7305 3G 4G LTE GPS Module
-
Wireless Lan Card for Intel Centrino Advanced-N 6235 6235ANHMW 6235AN Bluetooth 4.0 Mini PCI-E 2.4G/5Ghz Wlan+BT 4.0 05K9GJ
-
Atheros QCA9377 Dual band AC WIFI Module adapter WIFI mini PCI-E 2.4G / 5G
-
IPX IPEX I-PEX U.Fl MHF4 To SMA Female Extension Cable
Product Description
SIMCOM SIM7500X LTE Cat-1 Module
Variant for EMEA/Korea/Thailand
SIM7500E:
•LTE-FDD B1/B3/B7/B8/B20
•UMTS/HSPA+ B1/B8
•GSM/GPRS/EDGE 900/1800MHz
Variant for North America
SIM7500A:
•LTE-FDD B2/B4/B12
•UMTS/HSPA+ B2/B5
SIM7500V:
•LTE-FDD B4/B13
Variant for Australia/New Zealand/South America
SIM7500SA:
•LTE-FDD B1/B3/B5/B7/B8/B28
•UMTS/HSPA+ B1/B5
Variant for Japan
SIM7500JC:
•LTE-FDD B1/B18/B19/B26
SIM7500JE:
•LTE-FDD B1/B3/B8
Specifications for Data transfer
•LTE CAT1
- Uplink up to 5Mbps
- Downlink up to 10Mbps
•HSPA+
- Uplink up to 5.76 Mbps
- Downlink up to 42 Mbps
•UMTS
- Uplink/Downlink up to 384Kbps
•EDGE
- Uplink/Downlink up to 236.8Kbps
•GPRS
- Uplink/Downlink up to 85.6Kbps
General features
•LGA Package
•Control Via AT Commands
•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical
•Operation temperature: -40℃ to +85℃
•Dimension: 24*27*2.75mm
•Weight: 4.0g
•Bandwidth: 1.4/3/5/10/15/20MHz
•3GPP E-UTRA Release 11
Other features
•USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS
/HTTP/HTTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA
Interfaces
•USB2.0 with High speed up to 480Mbps
•UART
•GPIO
•Antenna: Solder pads for Primary, Rx-diversity and
GNSS antennas
•(U)SIM card (1.8V/3.0V)
•Digital Audio through PCM
•ADC
•GNSS: GPS/GLONASS/Beidou/Galileo*
Approvals
•RoHS Compliant
•CE (SIM7500E/SIM7500SA)
•FCC/PTCRB/AT&T(SIM7500A)
•FCC/GCF/Verizon* (SIM7500V)
•Jate/Telec/Softbank(SIM7500JE)
•Jate/Telec/Docomo* /Kddi* (SIM7500JC)
•ACMA (SIM7500SA)
*Under Development/Testing
