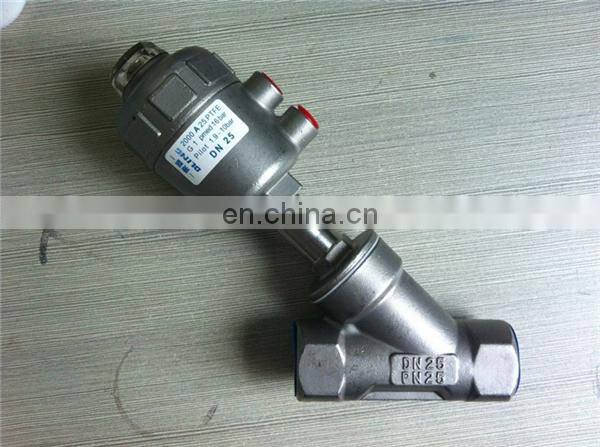

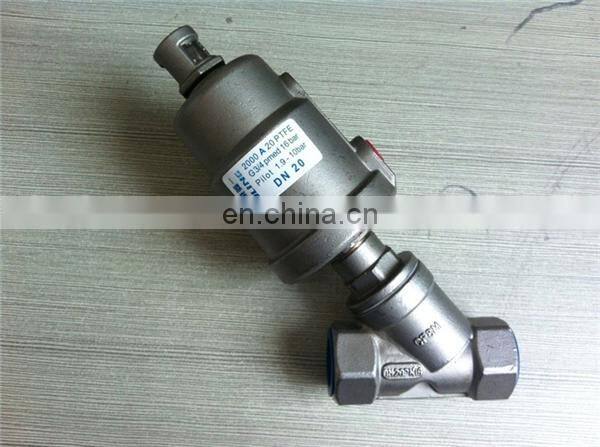

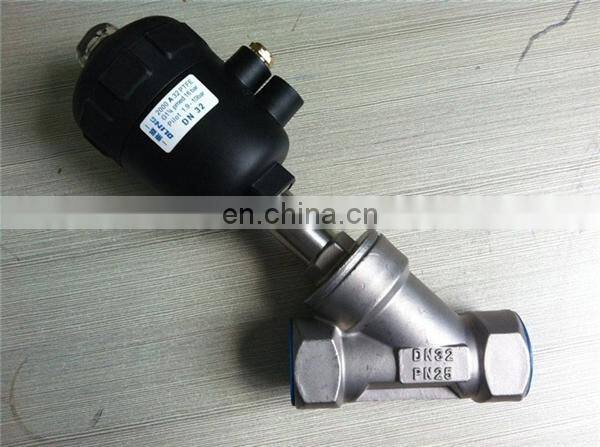

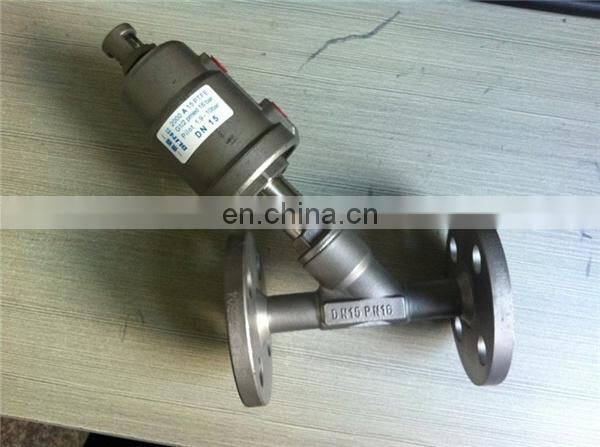

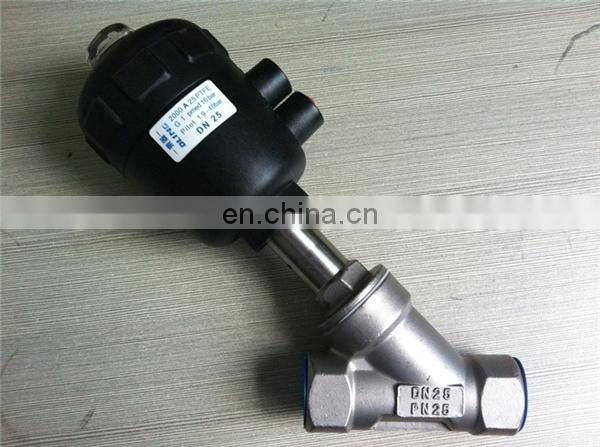

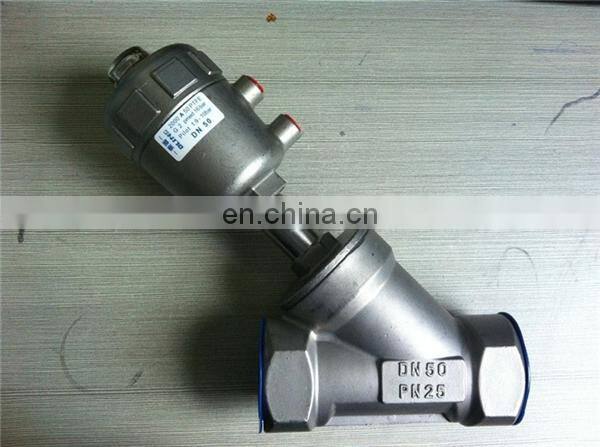

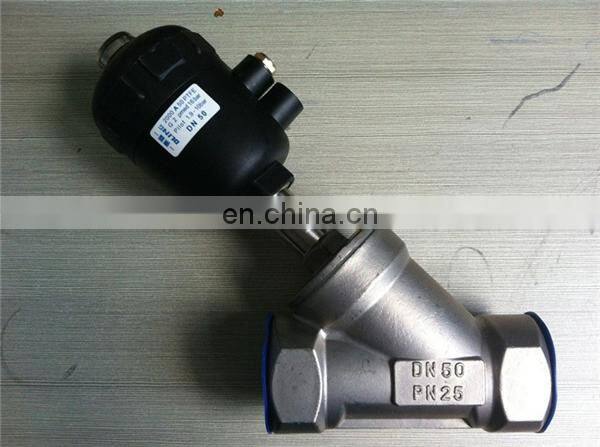

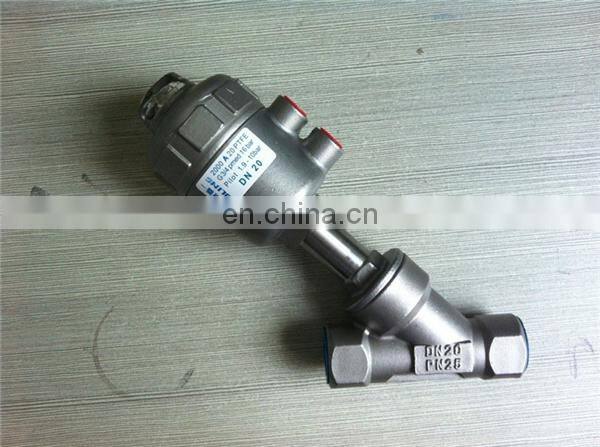

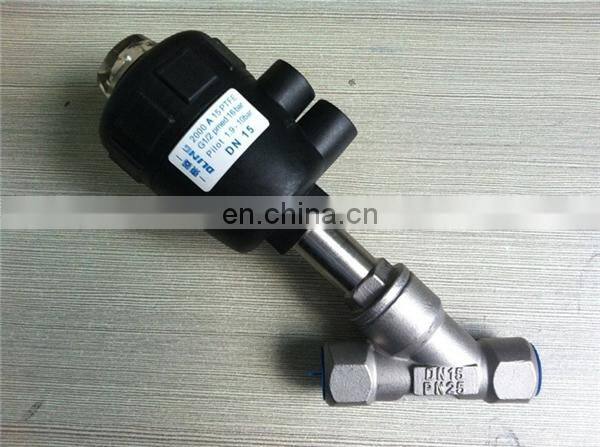

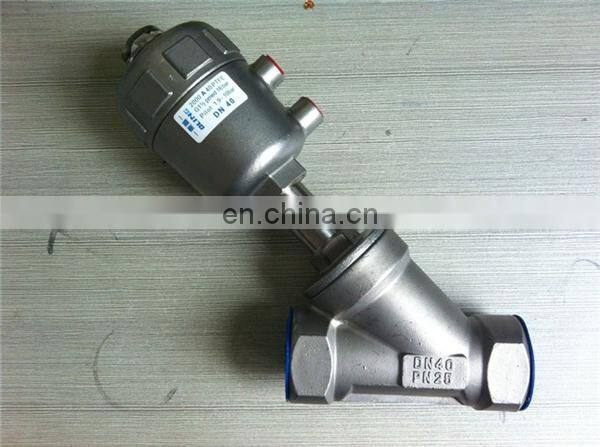

Lixin Solenoid Valve
US$ 1 - 40
/ Piece
20 Pieces(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Brand Name | ATC | Place of Origin | Zhejiang, China | |
| Model Number | Pls check below | |||
| Structure | Shutoff | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/2"1/4"1/6"1/8" | Media | Gas | |
| Temperature of Media | Medium Temperature |
Product Description
solenoid valve
Model:
Working Medium
Compressed air,natural gases,water,hydraulic oil
Working Temperature
-5~+130°C
Working Pressure
0~0.9 Mpa
Orifice Size
2.3mm
Port Size
1/4" 3/8"
Voltage
DC12V 24V AC110V 220V 380V
| 3V110-M5/06 |
| 3V210-08/06 |
| 3V310-10/08 |
| 3V410-15/10 |
| 3V120-M5/06 |
| 3V220-08/06 |
| 3V320-10/08 |
| 3V420-15/10 |
Technical Data:
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | 3V210-06 | 3V220-06 | 3V210-08 | 3V220-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | 3A210-06 | 3A220-06 | 3A210-08 | 3A220-08 | |
| Valve type | 5/2way | 5/3way | 5/2way | 5/3way | 3/2way | |||||||||
| Effective Cross Section Area | 14mm2(CV=0.78) | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 12mm2(CV=0.67) | 14mm2 (CV=0.78) | 16mm2 (CV=0.89) | ||||||||
| Port Size | In=Out=Exhaust=G1/8" | In=Out=G1/4" Exhaust=G1/8" | In=Out= Exhaust=G1/8" | In=Out= Exhaust=G1/4" | ||||||||||
| Working Medium | 40μ Micron filtered air | |||||||||||||
| Acting Type | Internal Piloted | |||||||||||||
| Working pressure | 0.15~0.8MPa | |||||||||||||
| Max. Test Pressure | 1.2MPa | |||||||||||||
| Ambient Temperature | 5~50oC | |||||||||||||
| Operating Voltage Tolerance | ±10% | |||||||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||||||
| Insulation | F Class | |||||||||||||
| Protection | IP65 | |||||||||||||
| Wiring/Connector | Lead wire or DIN Connector type | |||||||||||||
| Switching Frequency | 5 cycle/sec | |||||||||||||
| Response Time | 0.05 sec | |||||||||||||
1.Since 2002.About 20 years of manufacturing and export.8 years Gold Supplier of Alibaba.
2.Main products:Solenoid Valve,Actuator,Air cylinder,Air source treatment
3. Main markets: America, Europe, Brazil and so on.
4.we accept Paypal, Western Union, bank T.T,LC payment.
5. Expert packing to protect products in shipment
6. OEM is accepable.
7. Sample order is accepable
