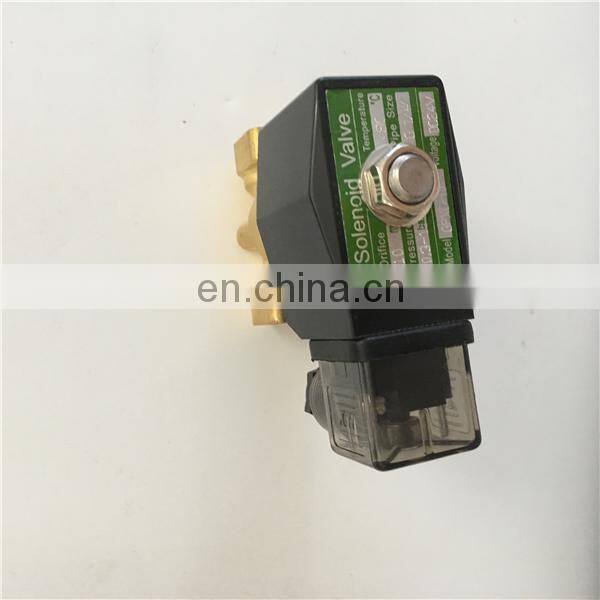

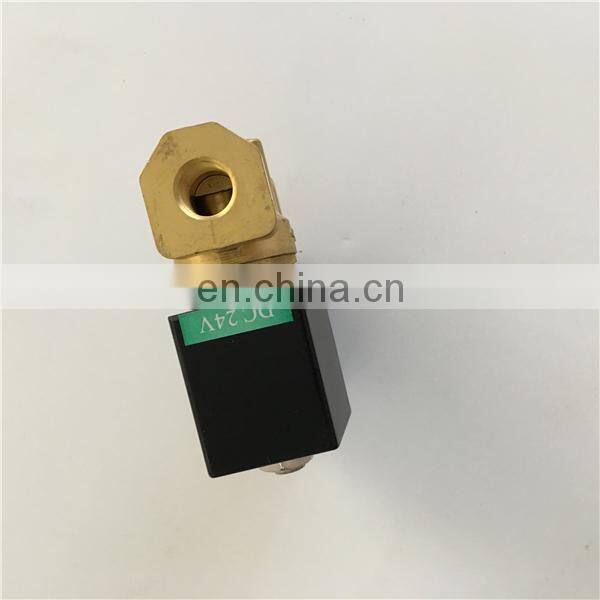

namur solenoid valve

FOB Price

USD $1 - $40 / Piece

20 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ATC	Place of Origin	Zhejiang, China
Model Number	Pls check below
Structure	Shutoff	Standard or Nonstandard	Standard
Pressure	Medium Pressure	Power	Solenoid
Port Size	1/2"1/4"1/6"1/8"	Media	Gas
Temperature of Media	Medium Temperature

Product Description

solenoid valve

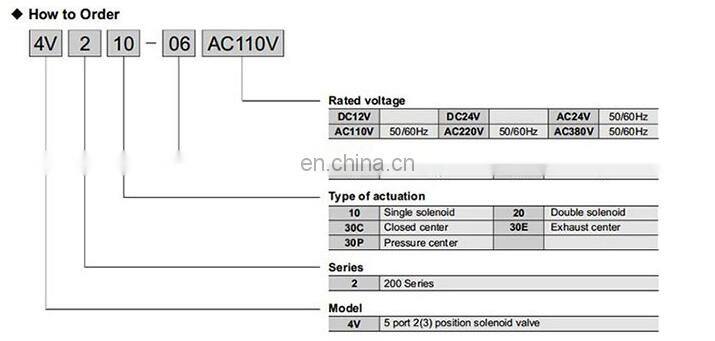

Model:

4V110-M5/06

4V210-08/06

4V310-10/08

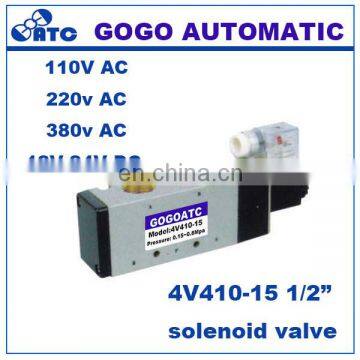

4V410-15/10

4V120-M5/06

4V220-08/06

4V320-10/08

4V420-15/10

3V110-M5/06

3V210-08/06

3V310-10/08

3V410-15/10

3V120-M5/06

3V220-08/06

3V320-10/08

3V420-15/10

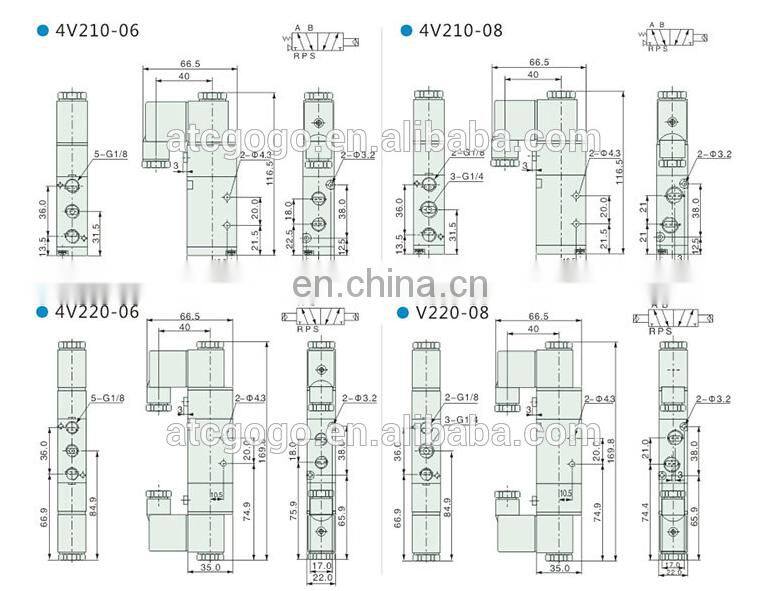

Technical Data:

Model

4V210-06

4V220-06

4V230C-06

4V230E-06

4V230P-06

4V210-08

4V220-08

4V230C-08

4V230E-08

4V230P-08

3V210-06

3V220-06

3V210-08

3V220-08

4A210-06

4A220-06

4A230C-06

4A230E-06

4A230P-06

4A210-08

4A220-08

4A230C-08

4A230E-08

4A230P-08

3A210-06

3A220-06

3A210-08

3A220-08

Valve type

5/2way

5/3way

5/2way

5/3way

3/2way

Effective Cross Section Area

14mm2(CV=0.78)

12mm2(CV=0.67)

16mm2(CV=0.89)

12mm2(CV=0.67)

14mm2

(CV=0.78)

16mm2

(CV=0.89)

Port Size

In=Out=Exhaust=G1/8"

In=Out=G1/4" Exhaust=G1/8"

In=Out=

Exhaust=G1/8"

In=Out=

Exhaust=G1/4"

Working Medium

40μ Micron filtered air

Acting Type

Internal Piloted

Working pressure

0.15~0.8MPa

Max. Test Pressure

1.2MPa

Ambient Temperature

5~50oC

Operating Voltage Tolerance

±10%

Power Consumption

AC:5.5VA DC:4.8W

Insulation

F Class

Protection

IP65

Wiring/Connector

Lead wire or DIN Connector type

Switching Frequency

5 cycle/sec

Response Time

0.05 sec

Main features

the direct-acting type diaphragm structure without pressure to open to extend the using field.
Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
Can choose plastic type,. Explosion-proof energy-saving.

1. How to Order?

Normally the customer can order our products by Alibaba platform or contact us representative by Email. After receiving your message, our sales will confirm with you about the specification or other required things, then we will send an official invoice to you via mail, which will be included the details of your order and bank information stamp and signed by manager.

2. How to Pay?

We accept the payment via ESCROW, T/T (bank transfer) and Western Union, even Paypal or Credit card and L/C . Please inquire us about the details in advance.

In 2-4 working days, the payment will be transferred into our account.
