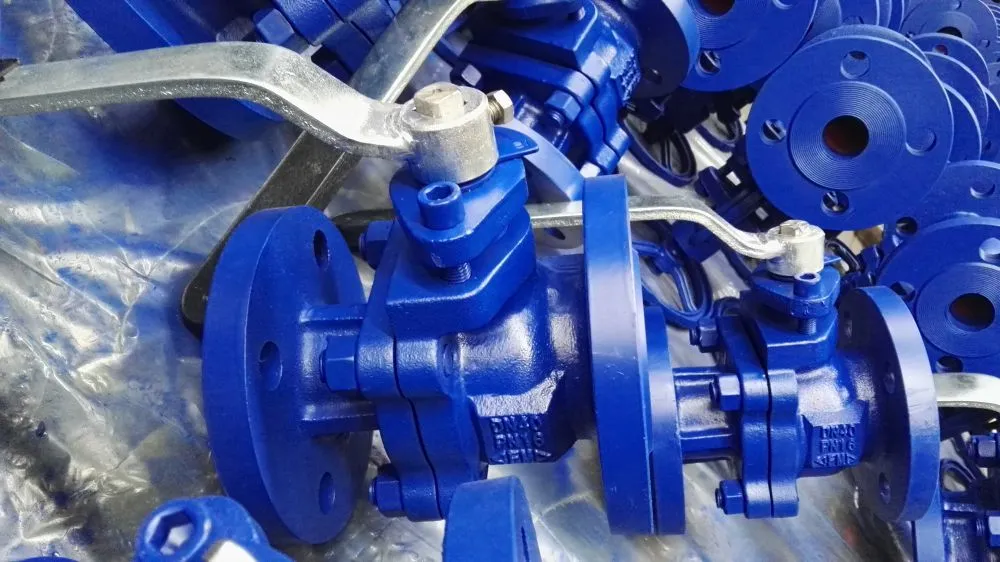

Chengxin Valve's ANSI cast iron ball valve with ASME B16.1 flanges delivers reliable flow control for commercial and industrial building services. Engineered for quick installation and long-term durability, this valve solution minimizes maintenance requirements while ensuring system integrity. Its standardized flange design allows seamless integration with existing piping networks across HVAC, water distribution, and fire protection systems.
Manufactured in our 50,000+ sqm facility since 1993, each valve undergoes rigorous quality checks to meet international standards. With direct export capabilities through major Chinese ports, we ensure timely global delivery to engineering firms and construction contractors worldwide.
KEY TECHNICAL FEATURES:
- Full-bore design minimizes pressure drop across fluid systems
- Fire-safe construction with secondary metal-to-metal sealing
- Blow-out proof stem design prevents failure under high pressure
- Anti-static device ensures electrical continuity
STANDARD SPECIFICATIONS:
| Parameter | Value |
|---|---|
| Body Material | ASTM A126 Class B Cast Iron |
| Ball Material | Chrome Plated Ductile Iron |
| Face-to-Face Dimensions | ASME B16.10 |
| Test Standards | API 598 / EN 12266-1 |
INSTALLATION BENEFITS:
- Pre-drilled flange holes align with standard piping components
- Raised face flanges ensure proper gasket compression
- 360° lever position allows flexible handle orientation
- Compact design saves space in mechanical rooms
Our valves undergo comprehensive factory acceptance testing including hydrostatic shell tests, seat leakage tests, and operational torque verification. Each unit ships with material test certificates and dimensional inspection reports for quality assurance.
Global Project Support: With regional offices worldwide, we provide technical assistance for specification compliance and installation guidance. Our engineering team can advise on proper valve selection for your specific building service requirements.
Request a project consultation to discuss bulk order pricing and delivery schedules. Customized packaging options available for international shipments including seaworthy wooden crates with desiccant protection.
FREQUENTLY ASKED QUESTIONS
Q: What pipe materials are compatible with these valves?
A: The ASME B16.1 flanges connect seamlessly with carbon steel, stainless steel, and ductile iron piping systems using standard flange gaskets and bolts.
Q: Are these suitable for steam applications?
A: While rated for temperatures up to 120°C, we recommend specialized valves for high-temperature steam services exceeding these parameters.
Q: What maintenance is required after installation?
A: These valves feature maintenance-free designs with self-lubricating seats. Periodic visual inspection of external components is recommended.
Q: Can I get special coatings for corrosive environments?
A: Epoxy coatings and other surface treatments are available upon request for specific environmental conditions.
Q: What documentation accompanies shipments?
A: All orders include material certificates, test reports, installation manuals, and compliance documentation.
