Home > Products > Ungrouped > Ecas Solenoid Valve Daf

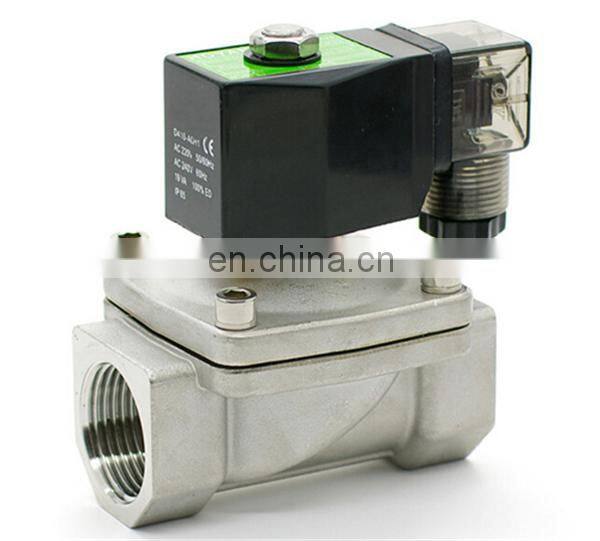

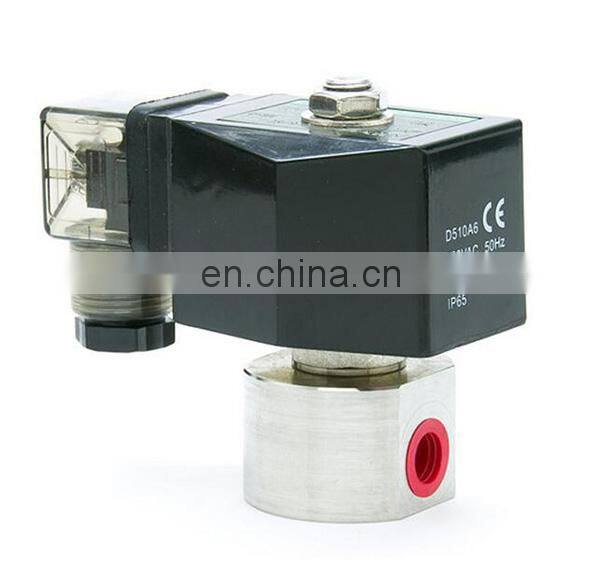

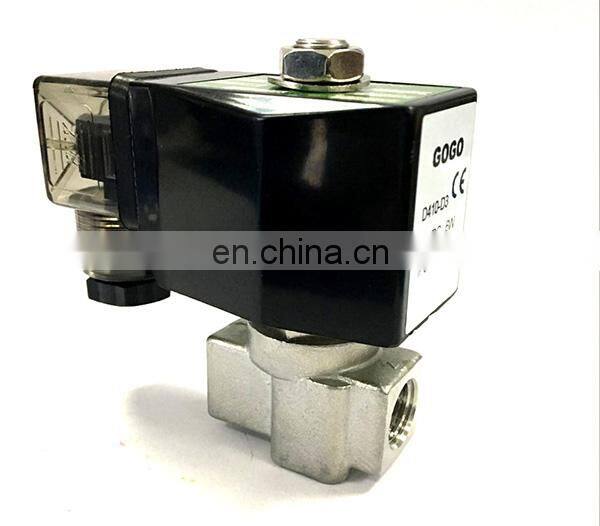

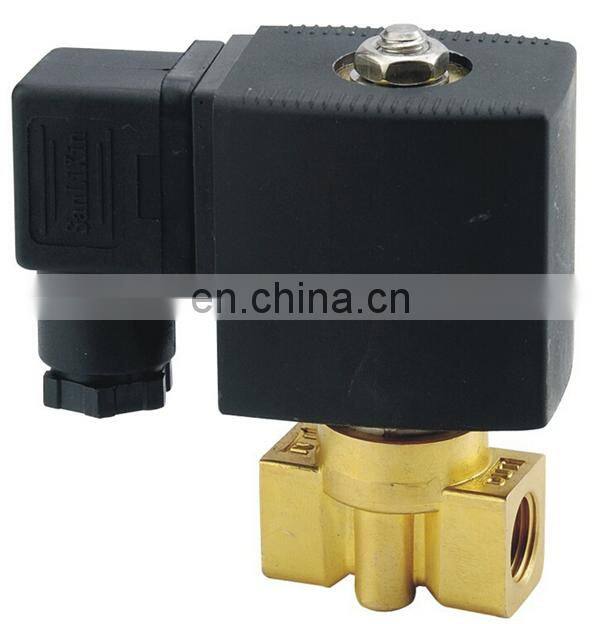

Ecas Solenoid Valve Daf

FOB Price

US$ 1 - 40 / Piece

20 Pieces(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ATC	Place of Origin	Zhejiang, China
Model Number	Pls check below
Structure	Shutoff	Standard or Nonstandard	Standard
Pressure	Medium Pressure	Power	Solenoid
Port Size	1/2"1/4"1/6"1/8"	Media	Gas
Temperature of Media	Medium Temperature

Product Description

solenoid valve

Model:

LPG, natural, butan, propane gas solenoid valve Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304

3V110-M5/06

3V210-08/06

3V310-10/08

3V410-15/10

3V120-M5/06

3V220-08/06

3V320-10/08

3V420-15/10

One-stop service:We always focus on one stop service which enable us to provide you and this

means faster and easier for you!

2. What spare parts can you supply?

All kinds of spare parts of XCMG,Zoomlion,Sany,Shantui,Shacman,Lugong,Sdlg,XGMA,CUMMINS ENGINE,etc.

3. What kind of payment terms are available?

We prefer T/T in advance. But if you have any other payment terms, we are so willing to make adjustment for you.

Technical Data:

Model

4V210-06

4V220-06

4V230C-06

4V230E-06

4V230P-06

4V210-08

4V220-08

4V230C-08

4V230E-08

4V230P-08

3V210-06

3V220-06

3V210-08

3V220-08

4A210-06

4A220-06

4A230C-06

4A230E-06

4A230P-06

4A210-08

4A220-08

4A230C-08

4A230E-08

4A230P-08

3A210-06

3A220-06

3A210-08

3A220-08

Valve type

5/2way

5/3way

5/2way

5/3way

3/2way

Effective Cross Section Area

14mm2(CV=0.78)

12mm2(CV=0.67)

16mm2(CV=0.89)

12mm2(CV=0.67)

14mm2

(CV=0.78)

16mm2

(CV=0.89)

Port Size

In=Out=Exhaust=G1/8"

In=Out=G1/4" Exhaust=G1/8"

In=Out=

Exhaust=G1/8"

In=Out=

Exhaust=G1/4"

Working Medium

40μ Micron filtered air

Acting Type

Internal Piloted

Working pressure

0.15~0.8MPa

Max. Test Pressure

1.2MPa

Ambient Temperature

5~50oC

Operating Voltage Tolerance

±10%

Power Consumption

AC:5.5VA DC:4.8W

Insulation

F Class

Protection

IP65

Wiring/Connector

Lead wire or DIN Connector type

Switching Frequency

5 cycle/sec

Response Time

0.05 sec

One-stop service:We always focus on one stop service which enable us to provide you and this

means faster and easier for you!

2. What spare parts can you supply?

All kinds of spare parts of XCMG,Zoomlion,Sany,Shantui,Shacman,Lugong,Sdlg,XGMA,CUMMINS ENGINE,etc.

3. What kind of payment terms are available?

We prefer T/T in advance. But if you have any other payment terms, we are so willing to make adjustment for you.

1,5/2 way valve with one head is spring return while for valve with two heads is electric or air controlled.

2,3/2 way valve is mostly used for single action cylinder.

3,5/3 valve can control pneumatic cylinder stopping at any stroke.

4,With both lead wire and connector type.

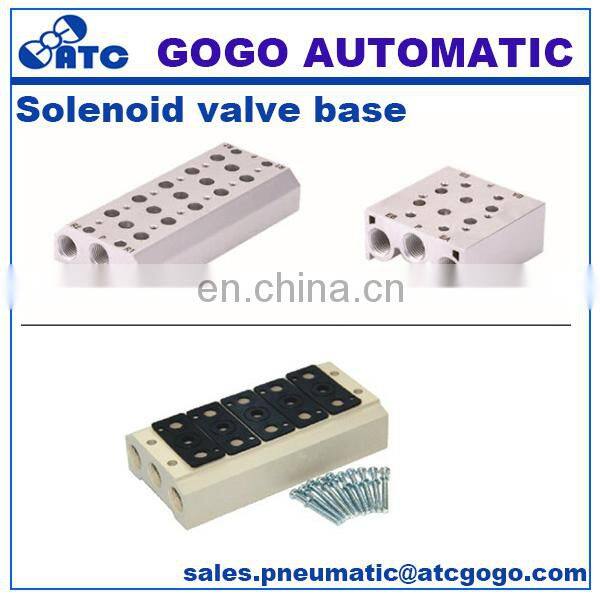

5,Equipped with suitable manifold,can support many valves working together
