Home > Products > Ungrouped > Rotary Solenoid

Rotary Solenoid

FOB Price

US$ 1 - 40 / Piece

20 Pieces(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ATC	Place of Origin	Zhejiang, China
Model Number	Pls check below
Structure	Shutoff	Standard or Nonstandard	Standard
Pressure	Medium Pressure	Power	Solenoid
Port Size	1/2"1/4"1/6"1/8"	Media	Gas
Temperature of Media	Medium Temperature

Product Description

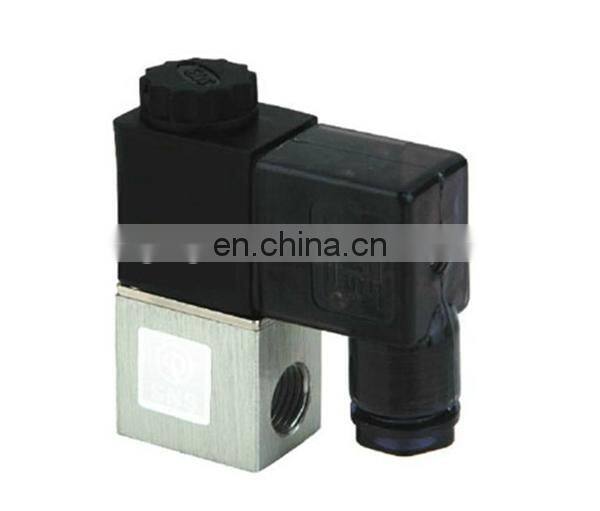

solenoid valve

Model:

4V110-M5/06

4V210-08/06

4V310-10/08

4V410-15/10

4V120-M5/06

4V220-08/06

4V320-10/08

4V420-15/10

3V110-M5/06

3V210-08/06

3V310-10/08

3V410-15/10

3V120-M5/06

3V220-08/06

3V320-10/08

3V420-15/10

Technical Data:

Model

4V210-06

4V220-06

4V230C-06

4V230E-06

4V230P-06

4V210-08

4V220-08

4V230C-08

4V230E-08

4V230P-08

3V210-06

3V220-06

3V210-08

3V220-08

4A210-06

4A220-06

4A230C-06

4A230E-06

4A230P-06

4A210-08

4A220-08

4A230C-08

4A230E-08

4A230P-08

3A210-06

3A220-06

3A210-08

3A220-08

Valve type

5/2way

5/3way

5/2way

5/3way

3/2way

Effective Cross Section Area

14mm2(CV=0.78)

12mm2(CV=0.67)

16mm2(CV=0.89)

12mm2(CV=0.67)

14mm2

(CV=0.78)

16mm2

(CV=0.89)

Port Size

In=Out=Exhaust=G1/8"

In=Out=G1/4" Exhaust=G1/8"

In=Out=

Exhaust=G1/8"

In=Out=

Exhaust=G1/4"

Working Medium

40μ Micron filtered air

Acting Type

Internal Piloted

Working pressure

0.15~0.8MPa

Max. Test Pressure

1.2MPa

Ambient Temperature

5~50oC

Operating Voltage Tolerance

±10%

Power Consumption

AC:5.5VA DC:4.8W

Insulation

F Class

Protection

IP65

Wiring/Connector

Lead wire or DIN Connector type

Switching Frequency

5 cycle/sec

Response Time

0.05 sec

Features:
1) Option of without manual, with manual or flow control.
2) Valve body made of Aging-proof Corrosion-Resistant Reinforced Nylon for the long life duration.
3) Rugged synthetic rubber diaphragm provide the lead-proof seal.
4) Special valve configuration with the self-cleaning function, debris-tolerant.
5) Self-aligning bonnet permits fast and easy maintenance.
6) High-flow, low-friction-loss design.
Feature:

1. The solenoid valve adopts high quality coil, fast response, long service life
2. Can be applied to some special environment sunch as water and oil gas vacuum
3. Various type of manual control valve/machinery
ng.

specification

1)Airtac type 5/2 ,5/3,3/2 way solenoid valve
2)Normally compactly designed G1/4" and G3/8"
3)Directional Control Valve

1,5/2 way valve with one head is spring return while for valve with two heads is electric or air controlled.

2,3/2 way valve is mostly used for single action cylinder.

3,5/3 valve can control pneumatic cylinder stopping at any stroke.

4,With both lead wire and connector type.

5,Equipped with suitable manifold,can support many valves working together
