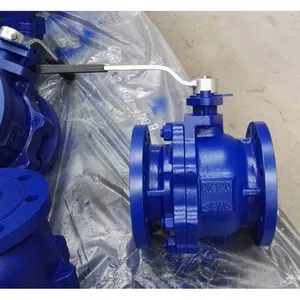

Help CenterANSI Cast Iron Ball Valve Sizes DN15 to DN400 With PN10/PN16 Pressure Ratings for Industrial Pipelines
Related Products
-
Industrial-grade ANSI Cast Iron Ball Valve Designed for Water Treatment and Chemical Processing ApplicationsNegotiableMOQ: 1 Piece -
Versatile ANSI Cast Iron Ball Valve Compatible With Various Fluids, Including EPDM or NBR SeatsNegotiableMOQ: 1 Piece
-
Leak-proof ANSI Cast Iron Ball Valve With PTFE or RPTFE Seats for Superior Sealing in Oil and GasNegotiableMOQ: 1 Piece
-
Durable ANSI Cast Iron Ball Valve Featuring Ductile Iron Body and SS316 Stem for Corrosion ResistanceNegotiableMOQ: 1 Piece
-
Compact ANSI Cast Iron Ball Valve With ASME B16.10 Face-to-face Dimensions for HVAC SystemsNegotiableMOQ: 1 Piece
Engineered for demanding industrial environments, Chengxin Valve's ANSI cast iron ball valves deliver exceptional flow control with reliable sealing performance. Covering DN15 to DN400 sizes and rated for PN10/PN16 pressures, these valves ensure operational safety in critical pipeline systems. With ISO-certified manufacturing since 1993, our valves combine robust construction with cost-effective maintenance for long-term service life.
Core Technical Advantages
- Durable Construction: High-grade cast iron body withstands corrosive media and high-pressure cycling
- Zero-Leak Design: PTFE seats create bubble-tight seals even after 10,000+ operation cycles
- Low-Torque Operation: Precision-machined ball reduces actuation force by 40% compared to standard valves
- Fire-Safe Option: Optional graphite packing available for high-temperature applications
- Bidirectional Flow: Equal pressure handling in both flow directions eliminates installation errors
Technical Specifications
| Parameter | Value Range |
|---|---|
| Temperature Range | -20°C to 200°C |
| Flow Coefficient (Cv) | DN15: 25 | DN400: 12,500 |
| End Connection Standards | ANSI B16.5 / B16.47 |
| Hydrostatic Test Pressure | 1.5 x PN rating |
The reinforced stem design prevents blowout under surge pressures, while the anti-static device ensures safe handling of flammable fluids. Each valve undergoes rigorous QA checks including 3-stage pressure testing before shipment. Custom configurations like extended stems for buried service are available upon request.
For pipeline engineers, these valves offer significant lifecycle cost reduction through:
• 50% lower maintenance frequency vs. gate valves
• No lubrication requirements
• 30-minute average replacement time
Why Choose Chengxin Valves?
With 30+ years of industrial valve manufacturing expertise, we provide technical support for your specific application requirements. Our 20,000+ sqm factory enables flexible production capacities, while global logistics networks ensure timely delivery via major Chinese ports. Request a pressure loss calculation report to optimize your system design.
Frequently Asked Questions
Q: Are these suitable for steam applications?
A: Yes, when equipped with high-temperature packing. Maximum 180°C at PN16 rating.
Q: What is the lead time for DN300 valves?
A: Standard sizes ship in 15 days; non-stock items require 30-45 days production.
Q: Can I get valves with locking devices?
A: Yes, padlockable levers comply with LOTO safety standards.
Q: Are installation gaskets included?
A: Flange gaskets and bolts can be supplied as optional accessories.
Q: How often should maintenance be performed?
A: Recommended 5-year service interval under normal operating conditions.

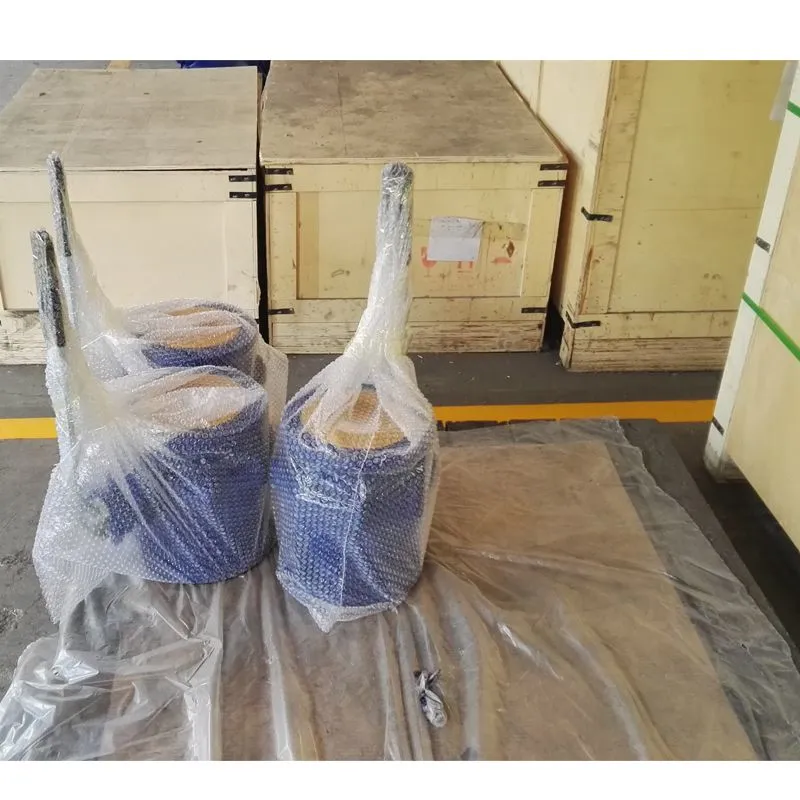

Ready to optimize your pipeline system? Contact our engineers for CAD drawings and material certifications. With annual exports exceeding $1 million, we understand international project requirements and offer customized packaging solutions.
