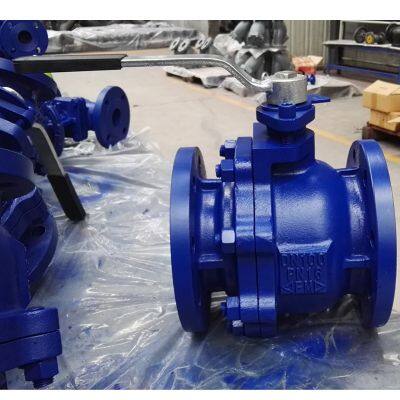

Help CenterCompact ANSI Cast Iron Ball Valve With ASME B16.10 Face-to-face Dimensions for HVAC Systems
Related Products
-
High-performance ANSI Cast Iron Ball Valve Compliant With API 598 Testing Standard for Reliable Shut-offNegotiableMOQ: 1 Piece -
ANSI Cast Iron Ball Valve With ASME B16.1 Flanges for Easy Installation in Building ServicesNegotiableMOQ: 1 Piece
-
Heavy-duty ANSI Cast Iron Ball Valve for Power Plants With Ductile Iron Disc and Carbon Steel StemNegotiableMOQ: 1 Piece
-
Cost-effective ANSI Cast Iron Ball Valve for Municipal Water Supply With PN16 Pressure RatingNegotiableMOQ: 1 Piece
-
ANSI Full Bore Ball Valve 600 Carbon Steel Welded Ball Valve With GearboxNegotiableMOQ: 1 Piece
Engineered for precision flow control in commercial HVAC applications, the Compact ANSI Cast Iron Ball Valve delivers reliable shut-off performance while meeting strict dimensional standards. Manufactured by Chengxin Valve with three decades of industrial expertise, this valve combines robust construction with space-saving design, making it ideal for retrofit projects where installation space is limited.
Key technical advantages include:
- Zero-leakage performance with precision-machined PTFE seats
- Reduced installation time due to standardized face-to-face dimensions
- Corrosion-resistant epoxy-coated cast iron body
- Quarter-turn operation for instantaneous flow control
| Parameter | Specification |
|---|---|
| Size Range | DN15 to DN200 (½" to 8") |
| Pressure Class | ANSI 150 |
| Test Pressure | Shell: 3.0 MPa | Seat: 2.2 MPa |
| Flow Coefficient (Cv) | From 5.5 (DN15) to 1550 (DN200) |
The integrated blow-out proof stem design prevents accidental disassembly under pressure, while the ISO-compliant manufacturing process ensures consistent quality across all production batches. For chilled water systems, the extended temperature range maintains sealing integrity even during thermal cycling.
Installation benefits:
- Direct replacement for other ASME B16.10 compliant valves
- Flange drilling patterns match PN16/ANSI 150 standards
- Compact design reduces required pipe support spacing
Optimize your HVAC system reliability with this maintenance-friendly solution. Chengxin Valve provides global technical support and flexible export options through major Chinese ports. Request your customized quotation today for project-specific configurations.
Frequently Asked Questions
Q: Are these valves suitable for steam applications?
A: While designed primarily for HVAC liquid systems, select configurations can handle low-pressure steam up to 5 bar. Consult our engineering team for application-specific recommendations.
Q: What flange facing is provided?
A: Standard valves feature raised face (RF) flange finish, with flat face (FF) configuration available upon request.
Q: Is locking capability available?
A: Yes, all lever handles include drilled holes for padlock installation in both open and closed positions.
Q: Can I get special epoxy coatings?
A: Custom coating options including FDA-compliant finishes are available for specific project requirements.
Q: What is the lead time for export orders?
A: Standard configurations ship within 30 days EXW from our Hebei facility, with expedited options available.
