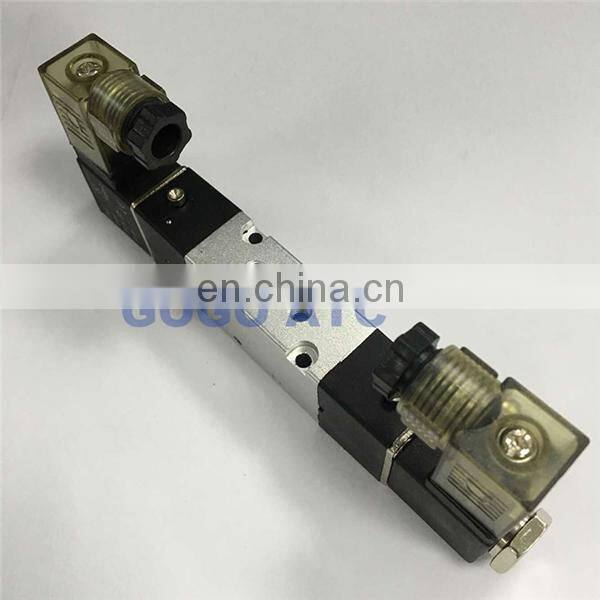

Under Water Solenoid Valve
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Brand Name | ATC | Place of Origin | Zhejiang, China | |
| Model Number | Pls check below | |||
| Structure | Shutoff | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/2"1/4"1/6"1/8" | Media | Gas | |
| Temperature of Media | Medium Temperature |
Product Description

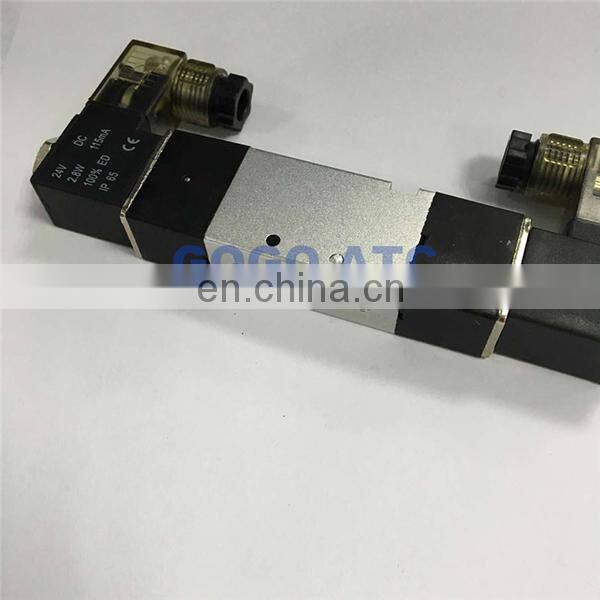

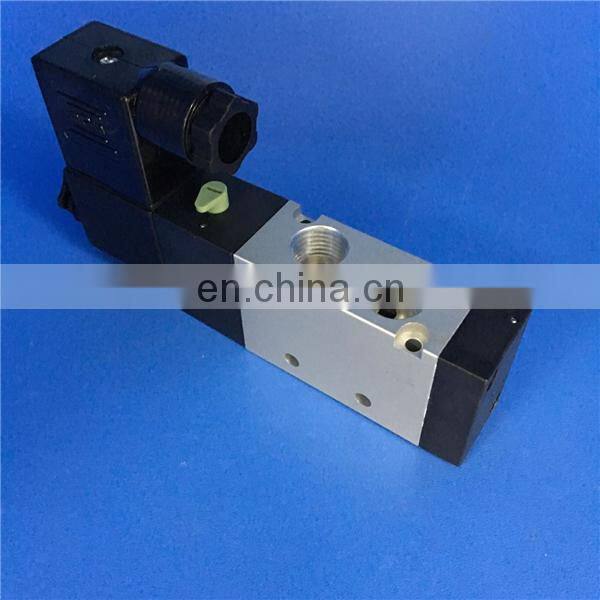

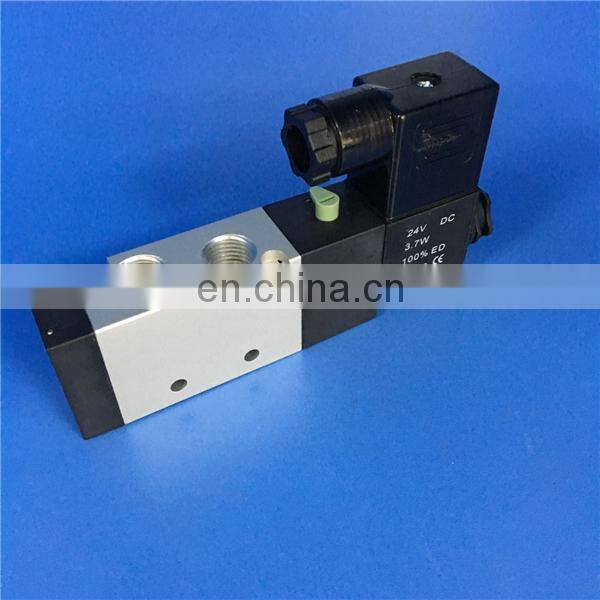

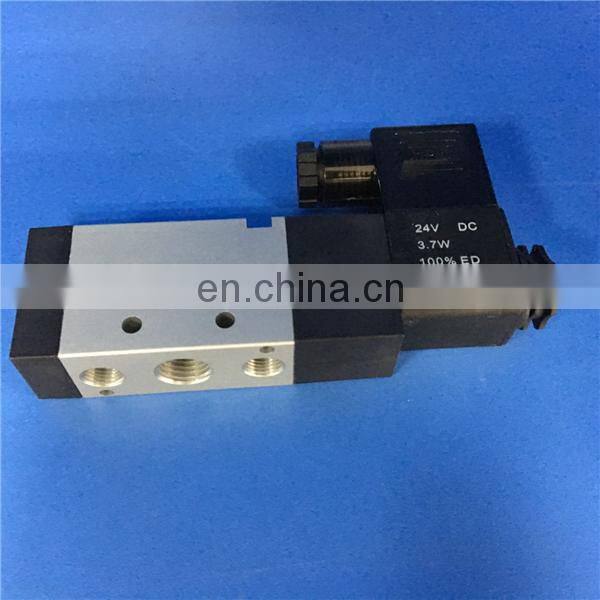

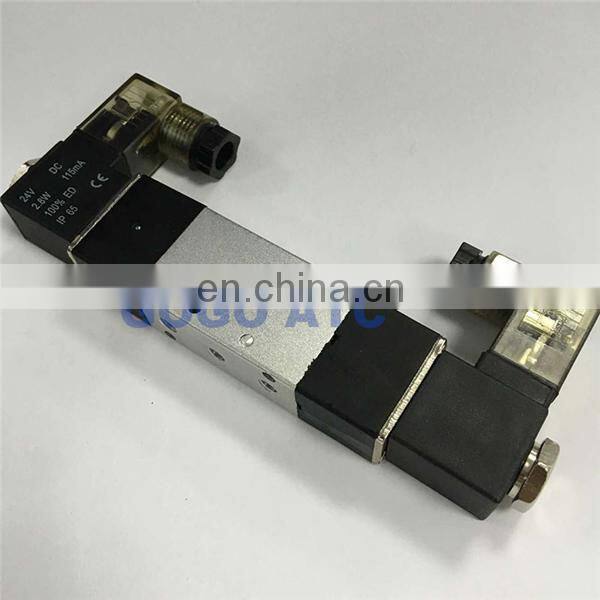

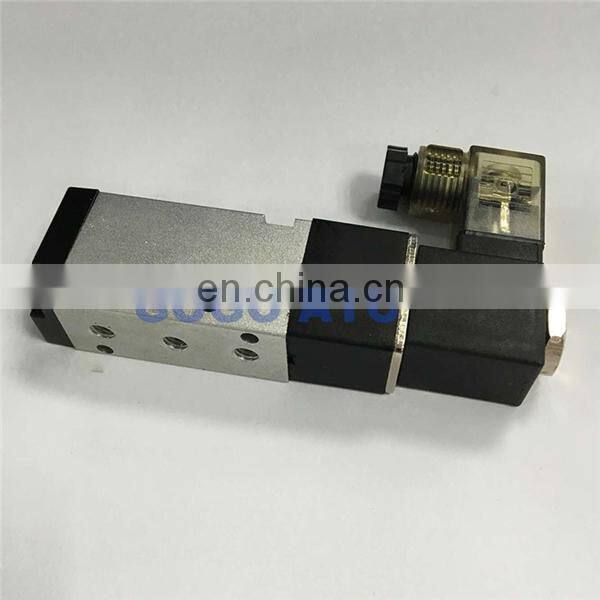

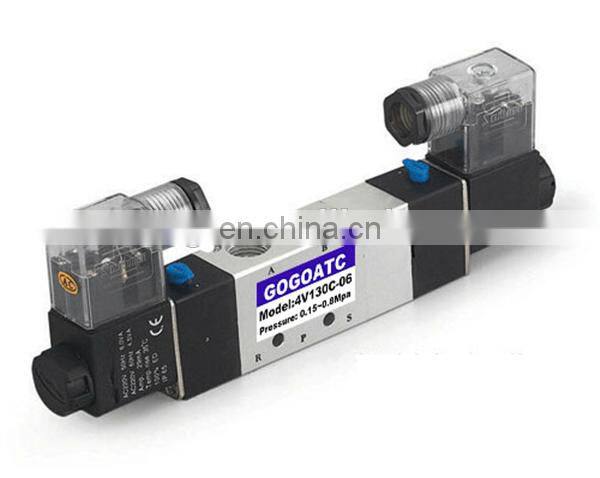

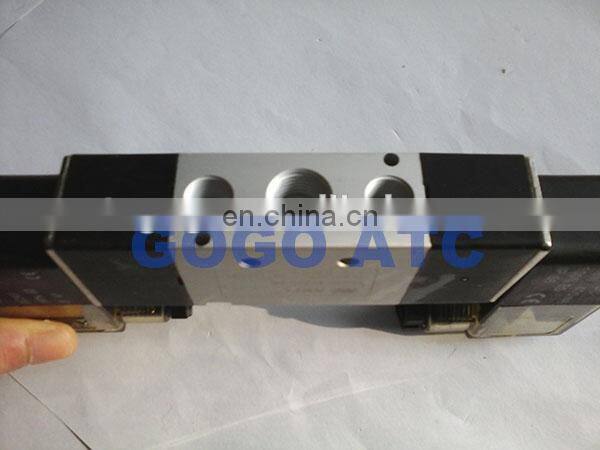

solenoid valve

Model:
| 4V110-M5/06 |
| 4V210-08/06 |
| 4V310-10/08 |
| 4V410-15/10 |
| 4V120-M5/06 |

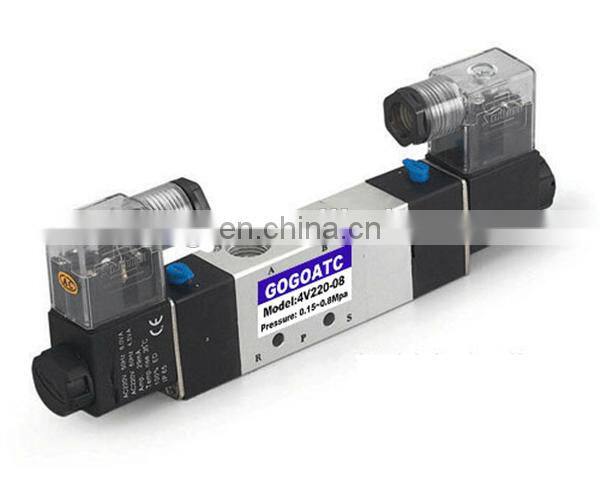

| 4V220-08/06 |
| 4V320-10/08 |
| 4V420-15/10 |
| 3V110-M5/06 |
| 3V210-08/06 |
| 3V310-10/08 |
| 3V410-15/10 |
| 3V120-M5/06 |
| 3V220-08/06 |
| 3V320-10/08 |
| 3V420-15/10 |
Technical Data:
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | 3V210-06 | 3V220-06 | 3V210-08 | 3V220-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | 3A210-06 | 3A220-06 | 3A210-08 | 3A220-08 | |
| Valve type | 5/2way | 5/3way | 5/2way | 5/3way | 3/2way | |||||||||
| Effective Cross Section Area | 14mm2(CV=0.78) | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 12mm2(CV=0.67) | 14mm2 (CV=0.78) | 16mm2 (CV=0.89) | ||||||||
| Port Size | In=Out=Exhaust=G1/8" | In=Out=G1/4" Exhaust=G1/8" | In=Out= Exhaust=G1/8" | In=Out= Exhaust=G1/4" | ||||||||||
| Working Medium | 40μ Micron filtered air | |||||||||||||
| Acting Type | Internal Piloted | |||||||||||||
| Working pressure | 0.15~0.8MPa | |||||||||||||
| Max. Test Pressure | 1.2MPa | |||||||||||||
| Ambient Temperature | 5~50oC | |||||||||||||
| Operating Voltage Tolerance | ±10% | |||||||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||||||
| Insulation | F Class | |||||||||||||
| Protection | IP65 | |||||||||||||
| Wiring/Connector | Lead wire or DIN Connector type | |||||||||||||
| Switching Frequency | 5 cycle/sec | |||||||||||||
| Response Time | 0.05 sec | |||||||||||||

Main features
- the direct-acting type diaphragm structure without pressure to open to extend the using field.
- Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
- Can choose plastic type,. Explosion-proof energy-saving.
working medium : air,water,oil,gas
Product name: 2S series 2S025-08J Solenoid valve with stainless steel body
Motion Pattern : Direct Drive Type
Type : Normal Close Type
Aperture of Flow Rate : 2.5mm
Cv Value : 0.23
Joint Pipe Bore : 1/8" / 1/4" NPT is available
If you have any difficulties whatsoever with the products, or you are dissatisfied for whatever reason, you can contact us and we will discuss the issue in an open, honest way.
If you are interested in our products, kindly send us your email to get a best price and more details. We will do everything possible to please you.
