Home > Industrial Equipment & Components > Valve > Ball Valve > High Temperature Valve

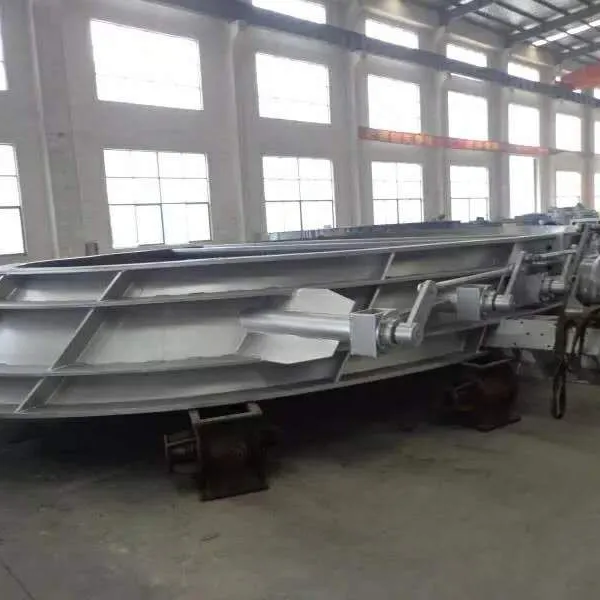

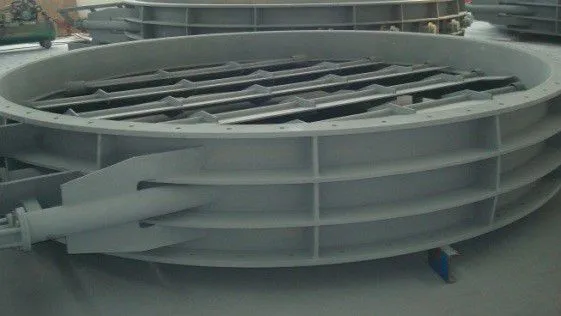

High Temperature Valve

Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Stainless Steel

Function:

Other

Application:

Other

Contact Supplier Request Quote Chat Now

Yangzhou Gaobiao Machinery Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port / Tianjin Port

Delivery Detail:

60 days

Product Details
Company Profile
Contact Us

Material Stainless Steel

Function Other

Application Other

Temperature Other

Driving Mode Pneumatic

Nominal Pressure ANSI CLASS 150-900

Type Other

Structure Other

Media Oil

Connection Form Other

Channel Other

Transport Package Shipping

Specification DN1500~6500mm

Origin Gaoyou, Jiangsu

Louver Valve Type

ZKCYVb-0.05 Type Electric Louver Valve

Round Window Type

Ⅰ. Purpose:

This valve is used in conjunction with electric actuators. It features small closing torque, sensitive action, reliable performance, large diameter, and light weight. It is widely applied in fans, air conditioners, electrostatic precipitators, and various large pipelines in metallurgical, building materials, electric power, petrochemical, light industry and other industrial sectors, and can automatically or manually regulate and cut off dust and gas.

Ⅱ. Main Parameters:

Working Temperature	-30~250℃	Ambient Temperature	Electric Actuator: -10~55℃Servo Amplifier: 0~45℃
Nominal Pressure	0.05MPa	Relative Humidity	Electric Actuator: ≤95%Servo Amplifier: ≤85%
Input Signal	0~10mA or 4~20mA
Power Supply Voltage	220V 50Hz
Dead Zone	≤0.8%	Valve Body Plate (Material)	Q235 - A
Hysteresis	≤2.5%	Shaft (Material)	2Cr13
Basic Error	±2.5%	Packing (Material)	Polytetrafluoroethylene

Ⅲ. Outline and Installation Dimensions:

Outline see Fig.1, Fig.2. Outline and installation dimensions see Table 2, Table 3.

Table 2

ZKC Vb-0.05 Type

L	A1	A2	A3	A4	A5	A6	H	H1	L1	n - d	Electric Actuator	Input Torque N.m	Matching Fan Model
160	228	256	277	196	228	250	667	511	245	16 - φ7	DKJ-210	100	4 - 72
	256	288	300	224	256	278	996	528
180	320	350	371	252	315	336	716	532	300	20 - φ7	DKJ-310	250
	360	396	414	315	385	406	782	566
180	400	435	456	350	400	431	816	592	300	24 - φ7	DKJ-310	250
200	480	511	536	420	435	476	886	618		20 - φ15	DKJ-310	250
220	640	700	740	560	625	669	1079	785	365	20 - φ15	DKJ-410	600
220	800	860	906	700	763	809	1219	713		42 - φ15	DKJ-510	1600
240	960	1008	1066	840	900	949	1434	1056	424	38 - φ15	DKJ-510	1600
260	1280	1340	1380	1220	1188	1232	1702	919		42 - φ15	DKJ-610	2500
320	1600	1772	1826	1476	1558	1558	2128	1329	560	40 - φ15	DKJ-610	2500
220	720	777	875	520	480	629	1104	760					Y4 - 73
220	810	868	916	586	650	759	1205	830	365	24 - φ15	DKJ-410	600
240	900	959	1006	650	710	649	1164	816
	990	1048	1069	713	780	824	1234	862
260	1080	1144	1186	910	840	887	1042	911	424	28 - φ15	DKJ-510	1600
	1260	1336	1186	780	996	1082	1334	963
320	1540	1312	1569	1010	1120	1172	1642	1164		32 - φ15	DKJ-610	2500
	1620	1110	1779	1070	1260	1338	1802	996	560
420	1800	1890	2139	1300	1360	1462	2052	1253		36 - φ15	DKJ-710	6000
	1980	2070	1959	1430	1586	1596	2186	1385
450	2250	2376	2459	1625	1759	1841	2601	1581		42 - φ15
	2520	2660	2732	1805	1905	2036	2736	1718		48 - φ15
