Help CenterPopular Product Conical Settling Tank For Wastewater Treatment
Related Products
-
Factory Design Pulse Bag Dust Collector for Stone CrusherUS$ 5000 - 8888MOQ: 1 Set -
Special The Plate and Frame Filter Press Easy to OperationUS$ 5000 - 8888MOQ: 1 Set
-
Mining Slurry Concentrate Tailing Membrane Filter Press Factory PriceUS$ 5000 - 8888MOQ: 1 Set
-
Chinese Henan High Effciency Settling Machine With Good PriceUS$ 5000 - 8888MOQ: 1 Set
-
Factory Hot Sale The Plate Chain Feeder for Mining IndustriesUS$ 5000 - 8888MOQ: 1 Set

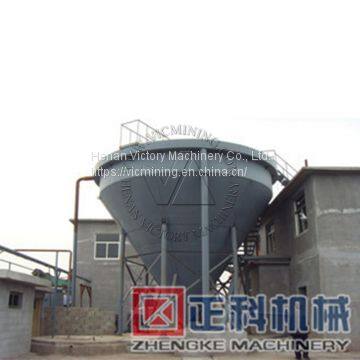

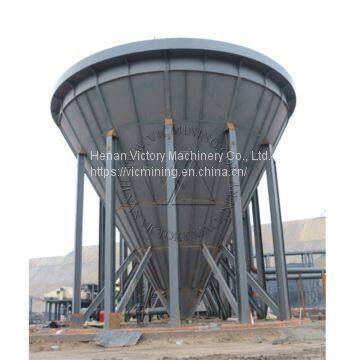

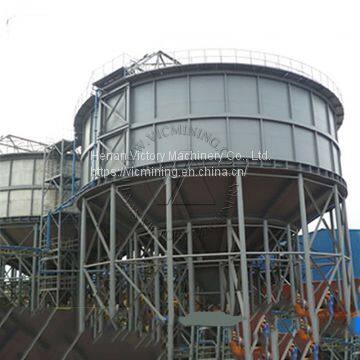

Conical Settling Tank not only a high-efficiency setting machine, the deep cone structure is much higher than other settling tank. It is mainly composed of deep cone, feeding device, mixing device, control box, dosing device and automatic control system.
Performance Features
The height of the tank is much longer than the diameter, and the whole tank is vertical barrel cone-shaped; due to its slender body, adds flocculant in the concentration process, which accelerates the concentration process of material settlement and overflow water clarification; the new design greatly improves the bottom flow concentration and overflow water quality;It can truly realize intelligent operation; the processing capacity is 3-8 times higher than the traditional thickener, the underflow concentration can reach 300-800 g / L, and the quality of overflow water can meet the national emission standards.
Working principle
Under the condition of adding flocculant, the flotation tail coal is sent to the lower feed barrel with a tapered distribution port. Most of the water in the slime water flows to the periphery in the clarification zone of the cylindrical part of the thickener, and a small part forms a small eddy current in the flocculation zone. In the conical por tion of the body, that is, in the compression zone, the sediment is compressed by gravity, discharged from the bottom flow port or pumped out. The deep cone concentrator has a diameter of 6 to 10 m, a cylindrical por tion with a height of 6 to 7 m, and a conical por tion with a height of 7.8 m. The cone of the deep cone concentra-tor is thicker, and the bottom of the sediment is subjected to large gravity compression, so that the solid content of the under flow is high. According to the characteristics of the tailings and the amount of the under flow, the under flow solid content is between 200 and 800 g/l. If a slight agitation is applied to the precipitate after flocculation, the degree of compression will be higher, so some cones of the deep cone concentrator are equipped with a stirring device to facilitate the dehydration of the sediment.
Customised processing plant
Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business. Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Cost.
Completed projects
Vietnam sand production line project
Argentina river pebble sand production line project
Nigeria limestone sand production line project
Peru cobble sand production line project
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
