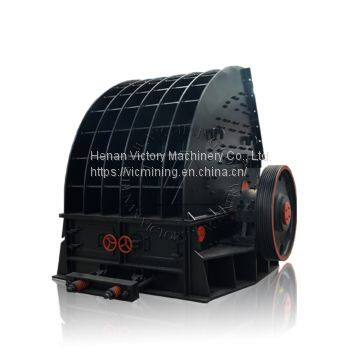

Help CenterPCZ Hammer Stone Crusher for Mining
Related Products
-
Chinese Dual-axis Washing Machline for SaleUS$ 5000 - 8888MOQ: 1 Set -
Chinese Jaw Cruser of Price ListUS$ 5000 - 8888MOQ: 1 Set
-
Heavy Equipment Xhp800 Cone Crusher for Mineral OreUS$ 5000 - 8888MOQ: 1 Set
-
Chinese Single Cylinder Hydraulic Cone Crusher for FineUS$ 5000 - 8888MOQ: 1 Set
-
Factory Direct Pc600 Impact Crusher ManufactureUS$ 5000 - 8888MOQ: 1 Set

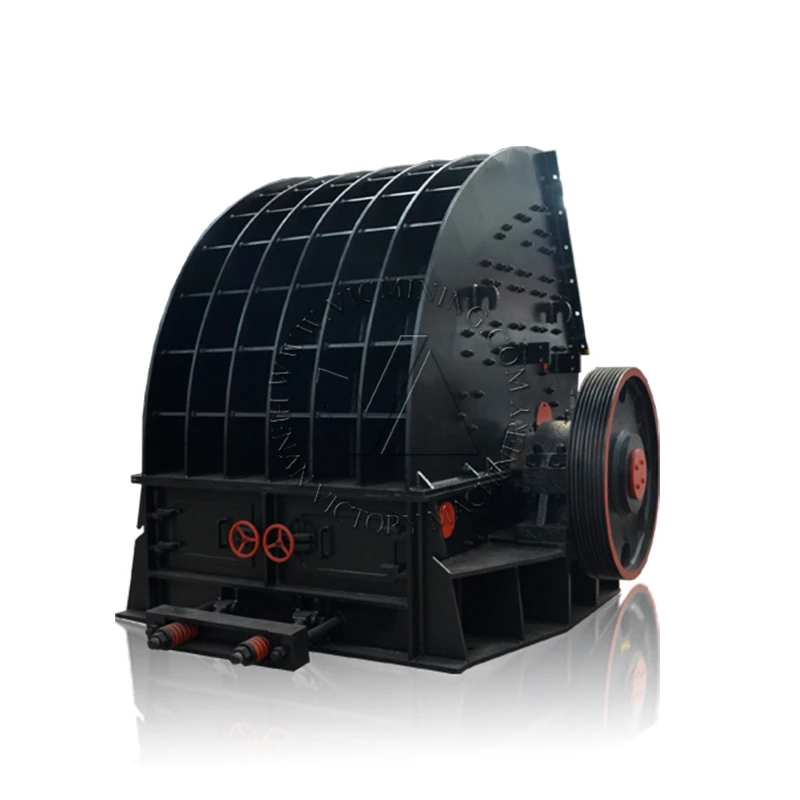

This is a new type crusher developed according to the feedback of users and the development trend of crushing industry, combined with the experimental data of ourcrushing experience. Compared with other Hammer Crushers, it has larger hammer pin diameter, the head of hammer is more heavy and higher strike linear speed,which overcomes the disadvantages of other hammer crushers,such as fast wear of hammer head and easy breaking of hammer pin, large feeding particle size, high crushing ratioand low maintenance cost. Heavy hammer crushing can directly crush the material with a grain size of 600-1200 mmto less than 25 mm at one time. The heavy hammer crusheris suitable for crushing all kinds of medium hardness andbrittleness materials such as limestone with compressivestrength not more than 150 MPa and calcium content higherthan 40%, such as coal, salt, white Asia, gypsum, alum,brick, tile, coal gangue, etc.
Performance Features
1. The large avoidance port, the crushing chamber, and the hardness of the material, the block size is large, and the spar powder is less.
2. It adopts the material of Shangyu Steel and High Anchor Jintie, which has strong resistance to production.
3. After optimization design, the method of controlling the size of the discharge material by the basket is changed, and the wear of the 7-head in the base cavity is reduced, so that the life of the steamed bread is increased by 4-6 times, which is more energy-saving and more efficient.
4. The material feeding size is large, the discharge granularity is small, and the multi-level magnetic crushing is one-stage crushing, which completely realizes a low-cost operation of breaking the top and breaking. Therefore, it can reduce the cost by 35%. It is a device with low energy consumption and low investment.
The motor drives the rotor to rotate at high speed inthe crushing chamber. The material is fed into themachine from the upper feeding port and crushed bythe impact, shearing and grinding of the high-speedmoving hammer. In the lower part of the rotor, there is a sieve plate, and the particles smaller than the sizeof the sieve hole are discharged through the sieveplate. The coarse particles larger than the size of thesieve hole are blocked on the sieve plate and continueto be hit and ground by the hammer, and finally passthrough the sieve plate exhauster.
Product Parameters
Heavy Course Crushing
| Model |
Feed Opening Size (mm) |
Rotor Size (mm) |
Motor Power (kw) |
Feeding Size (mm) |
Processing capacity (t/h) | Dimensions (mm) |
| PCZ-1308 | 850*800 | 1310*750 | 132 | ≤600 | 100-160 | 2818*2100*2390 |
| PCZ-1510 | 1000*850 | 1500*950 | 132*2 | ≤700 | 160-210 | 3260*2414*2750 |
| PCZ-1512 | 1210*900 | 1500*1160 | 160*2 | ≤750 | 250-320 | 3260*2624*2750 |
| PCZ-1615 | 1500*1200 | 1650*1452 | 220*2 | ≤1000 | 420-500 | 3456*2915*3185 |
| PCZ-1620 | 2000*1200 | 1660*1900 | 400*2 | ≤1200 | 800-1000 | 3500*3100*3200 |
| PCZ-1820 | 2000*1200 | 1800*1964 | 450*2 | ≤1200 | 1000-1200 | 3770*3210*3520 |
| PCZ-2126 | 2500*1450 | 2026*2250 | 630*2 | ≤1350 | 2000-2600 | 4120*3600*3800 |
Reshaping Fine Crushing
| Model |
Feed Opening Size (mm) |
Rotor Size (mm) |
Motor Power (kw) |
Feeding Size (mm) |
Processing capacity (t/h) | Dimensions (mm) |
| XPC-0706 | 618*510 | 700*570 | 75 | ≤400 | 50-70 | 1950*1340*1480 |
| XPC-0808 | 780*610 | 800*750 | 132 | 5≤00 | 80-100 | 2280*1790*1670 |
| XPC-0910 | 1070*750 | 900*1000 | 110*2 | ≤600 | 150-200 | 2600*2200*1940 |
| XPC-1012 | 1255*810 | 1000*1180 | 132*2 | ≤650 | 250-300 | 2800*2310*2210 |
| XPC-1213 | 1350*900 | 1200*1280 | 160*2 | ≤750 | 300-350 | 2970*2580*2510 |
| XPC-1216 | 1530*900 | 1270*1490 | 200*2 | ≤750 | 400-500 | 3070*2840*2580 |
| XPC-1220 | 2000*900 | 1220*1950 | 220*2 | ≤750 | 500-600 | 3080*3380*2580 |
Application
The heavy hammer crusher is widely used in crushing all kinds of medium hardness andbrittleness materials such as limestone with compressive strength not more than 150 MPa and calcium content higher than 40%, such as coal, salt, white Asia, gypsum, alum,brick, tile, coal gangue, etc.
Customised processing plant
Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business. Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Costs.
Completed projects
Vietnam sand production line project
Argentina river pebble sand production line project
Nigeria limestone sand production line project
Peru cobble sand production line project
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
