Chinese Single Cylinder Hydraulic Cone Crusher for Fine

Chinese Single Cylinder Hydraulic Cone Crusher for Fine thumbnail-1
Chinese Single Cylinder Hydraulic Cone Crusher for Fine thumbnail-2
Chinese Single Cylinder Hydraulic Cone Crusher for Fine thumbnail-3
Chinese Single Cylinder Hydraulic Cone Crusher for Fine thumbnail-4
Chinese Single Cylinder Hydraulic Cone Crusher for Fine thumbnail-5
Chinese Single Cylinder Hydraulic Cone Crusher for Fine photo-1

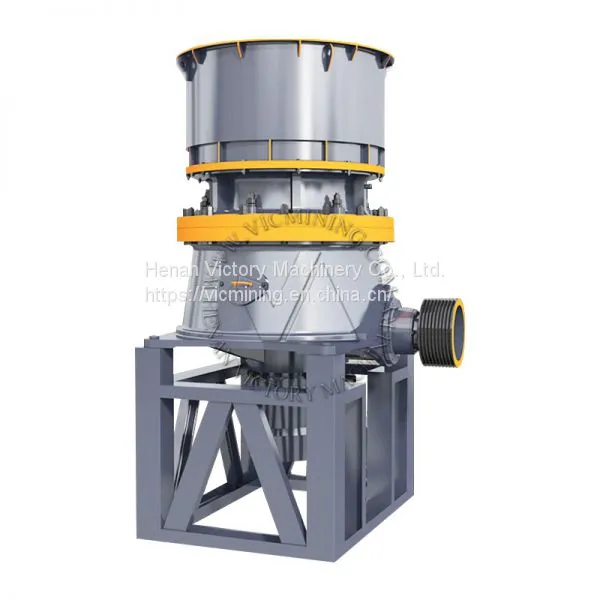

Chinese Single Cylinder Hydraulic Cone Crusher for Fine photo-2

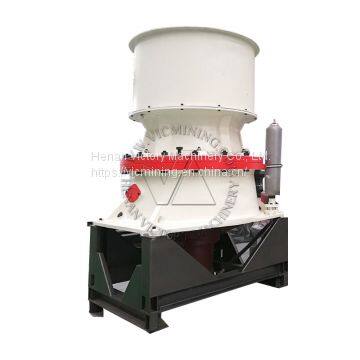

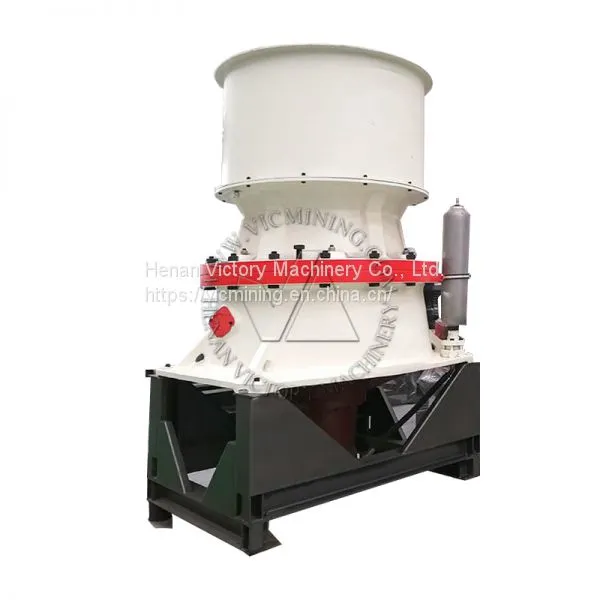

Chinese Single Cylinder Hydraulic Cone Crusher for Fine photo-3
Chinese Single Cylinder Hydraulic Cone Crusher for Fine photo-4

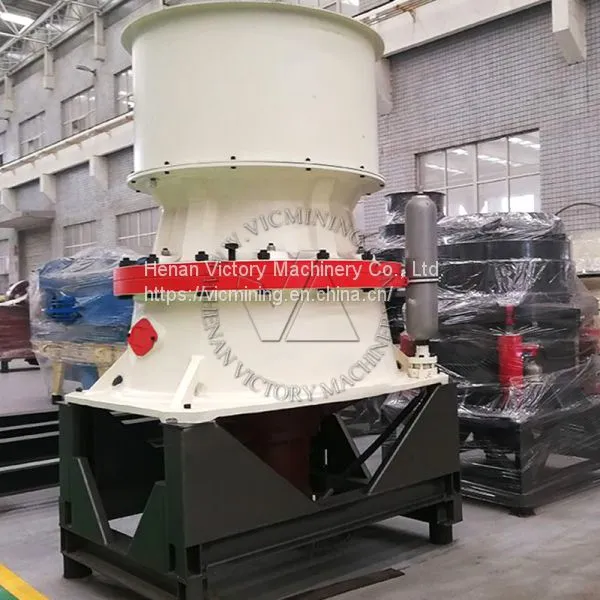

Chinese Single Cylinder Hydraulic Cone Crusher for Fine photo-5
US$ 5000 - 8888 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
victory
Place of Origin:
China
Model Number:
HST100, HST160, HST250, HST315
Contact Supplier Request Quote Chat Now
Henan Victory Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name victory
Place of Origin China
Model Number HST100, HST160, HST250, HST315
Type Cone Crusher
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 7.5-200t
Dimension(L*W*H) 1500x2000x2200mm
Application Energy & Mining
Condition New
Power(W) 90-315
Motor Type AC Motor
Capacity(t/h) 15-650
Product Introduction

  The single cylinder hydraulic cone crusher is a kind of high efficiency crusher integrating mechanical, hydraulic, electrical, automation, intelligent control and other technologies, representing the world's first class crusher technology. The unique design of the bottom consists three important functions of direct adjustment of discharge port, prevention of iron passing and cavity cleaning, which can be widely used in metal and non- metal mines, cement and sand. Medium, fine and ultra fine crushing operations in stone, construction, highway, chemical industry, building materials, metallurgy and other industries are suitable for crushing ores and rocks with high hardness and high abrasiveness.



Performance Features



1.High production capacity.
2.Low cost.
3.Easy to adjust and maintenance.
4.Excellent particle after crushing product.

Working principle



HST single cylinder hydraulic cone crusher is mainly composed by the upper frame, middle frame (medium crushing type), lower frame, moving cone, eccentric sleeve, transmission part, hydraulic cylinder etc. HST Cone Crusher is driven by the motor when working, the horizontal shaft will rotate and make the eccentric sleeve rotate through the gear , and driven the moving cone crusher to move circularly by eccentric sleeve, in order to crushing the stone continuously.



Product Parameters



Model

Cavity

Feeding Size (mm)

Discharging Size (mm)

Power
(kw)

HST100

S1

≤240

≥22

≤90

S2

≤00

≥19

H1

≤125

≥10

H2

≤65

≥8

H3

≤38

≥4

HST160

S1

≤360

≥25

≤160

S2

≤300

≥22

S3

≤235

≥19

H1

≤185

≥13

H2

≤90

≥10

H3

≤50

≥6

HST250

S1

≤450

≥35

≤250

S2

≤400

≥29

S3

≤300

≥25

H1

≤215

≥16

H2

≤110

≥13

H3

≤70

≥8

HST315

S1

≤560

≥41

≤315

S2

≤500

≥38

H1

≤275

≥16

H2

≤135

≥16

H3

≤65

≥13







Customised processing plant

  Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business,Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Costs.



Completed projects



Vietnam sand production line project

Argentina river pebble sand production line project

Nigeria limestone sand production line project

Peru cobble sand production line project



FAQ





Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: What is your terms of payment ?

A: 30% advanced payment by T/T, balance paid before shipment.
