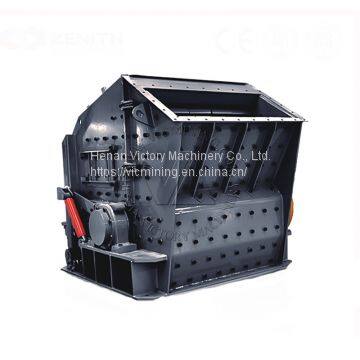

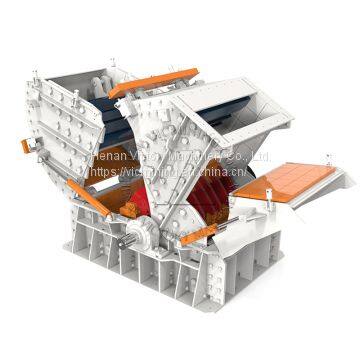

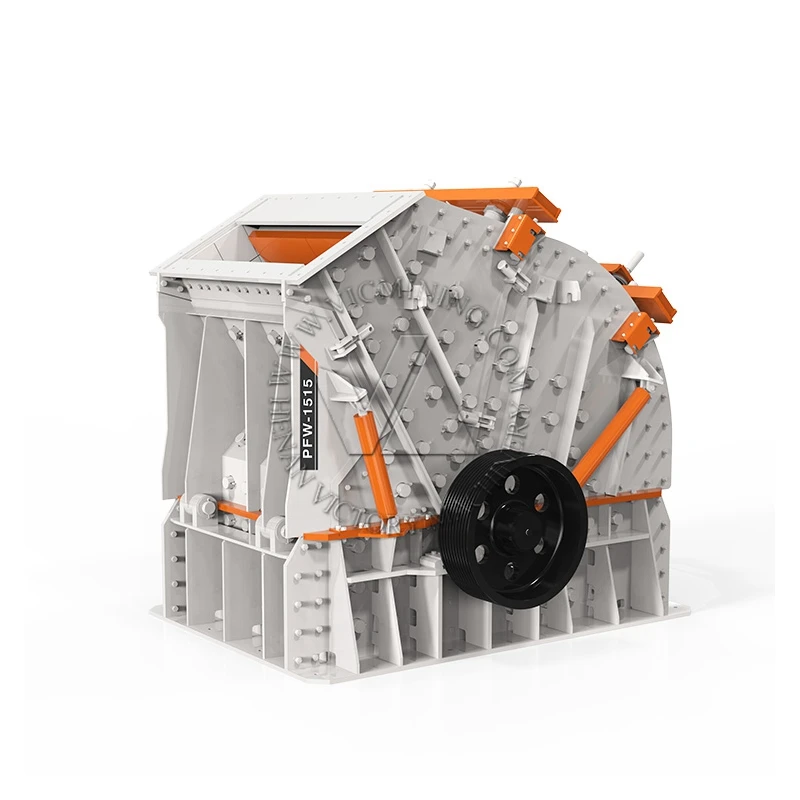

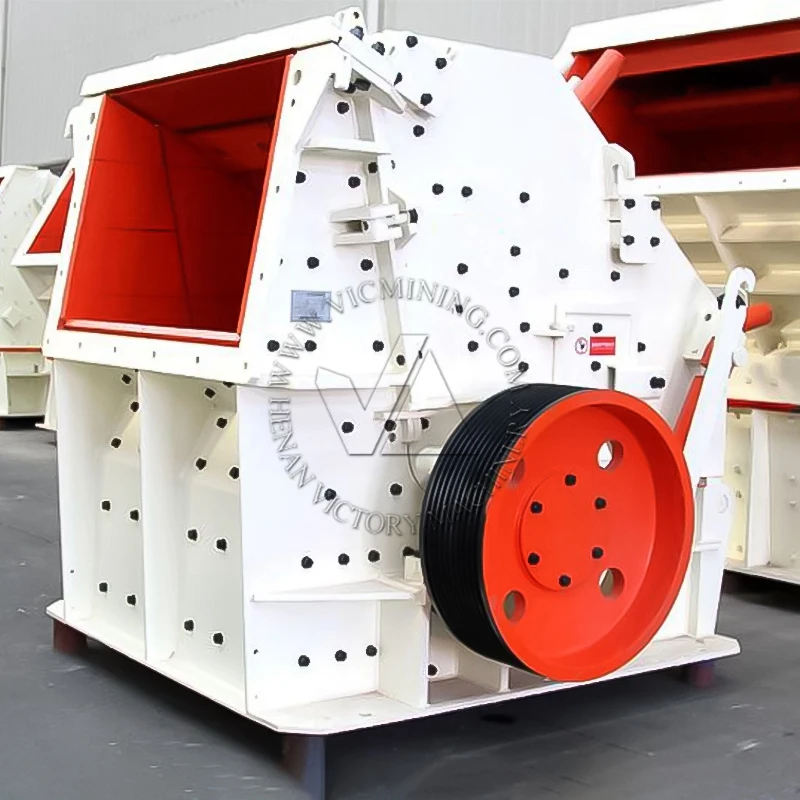

European style impact crusher, Professional Impact Crusher Manufacturer
- 666 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Brand Name: | victory | Place of Origin: | China | Model Number: | PFW1210II, PFW1214II, PFW1315II, PFW1318II, PFW1415II, |
Type: | Impact Crusher | Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 year | Weight: | 17-33t | Dimension(L*W*H): | 2400*1870*2550 |
Application: | Construction works | Condition: | New | Power(W): | 90-250 |
Motor Type: | AC Motor | Capacity(t/h): | 90-480 |
Product Description
The European style impact crusher is a new generation of impact crusher products after optimized design. Impact crusher is an important secondary crushing equipment in the sand and stone production line, which is favored by customers due to its simple structure, convenient operation and good grain shape of finished products. It is especially suitable for the crushing of materials with medium and low compressive strength. It Is an ideal crushing equipment for high-quality main materials required for high-grade highway pavement and hydropower construction.
Performance Features
1. Large feed inlet, high crushing chamber, suit for high hardness materials, large block and less stone powder in finished products.
2. The clearance between the impact plate and the plate hammer is convenient to adjust, and the discharging particle size is well controlled, with good particle shape.
3. The structure is compact, the machine is rigid, and the rotor has a large moment of inertia.
4. High chromium plate hammer, high impact resistance, wear resistance and great impact.
5. Key less connection, convenient maintenance, economic and reliable.
6. High benefit for full crushing function, high productivity, small part swear.
Working principle
When the material enters the plate hammer action zone, the plate hammer on the high-speed rotating rotor is crushed by high-speed impact on the material fed into the crushing cavity, and the crushed material is thrown at a high speed in the tangential direction toward the counterattack plate at the other end of the crushing cavity. Once again, it is broken, and then rebounds from the counter-attack liner back to the hammer action zone and is back-triggered. The material is broken into large, small, and one, two, and three counter-attack chambers. During the round trip, there is also a collision between the materials. As the material is hit by the hammer, the impact of the counterattack and the collision between the materials, the material continues to crack, loose and smash. When the material particle size is smaller than the gap between the third counterattack plate and the hammer, it is discharged.
Product Parameters
Two chambers
Model | Specification (mm) | Feed port Size (mm) | Feeding Size (mm) | Processing Capacity (t/h) | Installed power (kw) | Weight (t) | Overall Dimension(L*W*H) (mm) |
PFW1210II | Φ1150×960 | 1100Xl030 | ≤400 | 90-160 | 90-110 | 17 | 2400Xl870X2550 |
PFW1214II | Φ1150×1400 | 1100Xl430 | ≤500 | 130-200 | 132-160 | 22 | 2400X2310X2550 |
PFW1315II | Φ1300×1500 | 1200X1530 | ≤600 | 180-320 | 160-200 | 29 | 2700X2570X2800 |
PFW1318II | Φ1300×1800 | 1200Xl830 | ≤700 | 240-400 | 200-250 | 34 | 2700X2870X2800 |
PFW1415II | Φ1400×1500 | 1300X1530 | ≤700 | 300-480 | 200-250 | 38 | 2900X2700X300 |
Three chambers
Model | Specification (mm) | Feed port Size (mm) | Feeding Size (mm) | Processing Capacity (t/h) | Installed power (kw) | Weight (t) | Overall Dimension(L*W*H) (mm) |
PFW1210II | Φ1150×960 | 570X990 | ≤250 | 70-140 | 90-110 | 15 | 2550Xl870X2100 |
PFW1214II | Φ1150×1400 | 570Xl430 | ≤250 | 90-190 | 132-160 | 19 | 2550X2310X2100 |
PFW1315II | Φ1300×1500 | 652X1530 | ≤300 | 150-280 | 160-200 | 25 | 2960X2570X2380 |
PFW1318II | Φ1300×1800 | 652Xl830 | ≤300 | 220-350 | 200-250 | 30 | 2960X2870X2380 |
PFW1415II | Φ1400×1500 | 800X1530 | ≤300 | 280-350 | 200-250 | 33 | 3120X2650X2660 |
Customised processing plant
Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business, Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Costs.
Completed projects
Vietnam sand production line project
Argentina river pebble sand production line project
Nigeria limestone sand production line project
Peru cobble sand production line project
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
