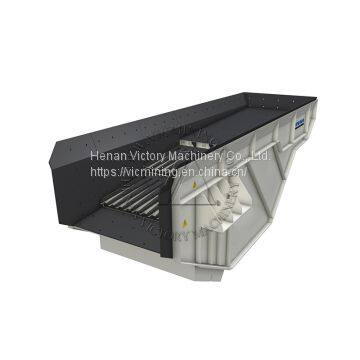

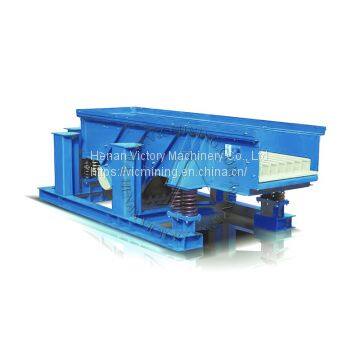

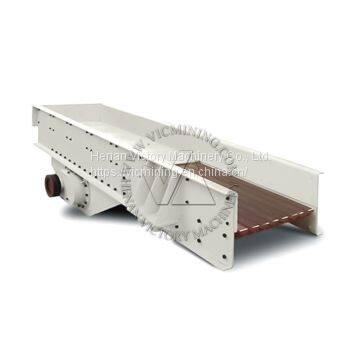

The vibrating feeder can feed the block and granular materials uniformly and regularly from the silo into the receiving device when running. The crushing machine can feed continuously and evenly with coarse screening in the gravel production line.
Performance Features
1. Smooth vibration, reliable operation and longer ser vice life;
2. The excitation force can be adjusted, the flow can be changed and controlled at any time, and the adjustment is convenient and stable;

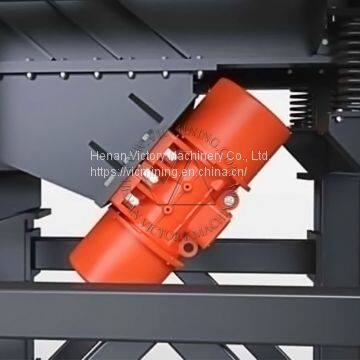

3. The vibration motor is the excitation source, low noise, small power consumption, good adjustment performance, and no material charging phenomenon.
Working principle
The vibration feeding is evenly feeding during the vibration process. The advantage is that the feeding process is uniform according to the vibration frequency of the control motor (the AC motor is completed by the inverter generally ). Simple structure, reliable operation, convenient adjustment and installation, light weight, small volume, convenient maintenance and maintenance, and can prevent dust pollution when using a closed structure body.
Product Parameters
| Model |
Feed partical size (mm) |
Processing capacity (t/h) |
Motor Power |
Installation angle (°) |
Total weight (kg) |
Slot Size (mm) |
Dimensions (mm) |
| GZD-650×2300 | 300 | 80 | 1.1*2 | 10 | 2798 | 650*2300 | 2300*1360*780 |
| GZD-750×2500 | 350 | 100 | 1.1*2 | 10 | 3260 | 750*2500 | 2500*1460*780 |
| GZD-850×3000 | 400 | 120 | 3*2 | 10 | 3607 | 850*3000 | 3110*1800*1600 |
| GZD-1000×4200 | 500 | 150 | 5.5*2 | 10 | 3895 | 1000*3600 | 3850*1950*1630 |
| GZD-1100×4200 | 580 | 240 | 5.5*2 | 10 | 4170 | 1100*4200 | 4400*2050*1660 |
| GZD-1300×4900 | 650 | 450 | 7.5*2 | 10 | 5200 | 1300*4900 | 5200*2350*1750 |
| GZD-1500×5600 | 1050 | 450-800 | 11*2 | 10 | 7500 | 1500*5600 | 5700*2000*1750 |
| ZSW-380×95 | 500 | 100-160 | 11 | 0 | 4823 | 3800*960 | 3820*1640*1320 |
| ZSW-490×110 | 630 | 150-320 | 15 | 0 | 6647 | 4900*1100 | 4980*1830*1320 |
| ZSW-490×130 | 750 | 400-600 | 22 | 0 | 8760 | 4900*1300 | 4980*2580*2083 |
| ZSW-600×130 | 750 | 400-600 | 22 | 0 | 9250 | 6000*1300 | 6082*2580*2083 |
| ZSW-600×150 | 800 | 500-700 | 30 | 0 | 10130 | 6000*1500 | 6086*2662*1912 |
| ZSW-600×180 | 800 | 700-1000 | 37 | 0 | 13750 | 6000*1800 | 6310*3262*2230 |
Customised processing plant
Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business. Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Cost.
Completed projects
Vietnam sand production line project
Argentina river pebble sand production line project
Nigeria limestone sand production line project
Peru cobble sand production line project
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
