Full Auto Trapezoidal Roof Roll Forming Machine/roof sheet making machine
- botou city
- T/T L/C Cash
- 30 days
You May Like
-
Trapezoidal Sheet Roll Former Roof Sheet Forming Machine
-
Trapezoid roof wall plate cold roll forming machine
-
IBR Roofing Sheet Tile Roll Forming Machine
-
Color Sheet Trapezoidal Cold Roll Forming Machine
-
Building Material Trapezoidal Metal Roof Sheet Roll Forming Machine
-
Used Metal Roof Sheet Roll Forming Machine
Product Details
| Brand Name | DIXIN | Place of Origin | China | |
| Model Number | as machine | Use | Roof | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 YEARS | Weight | 3TON | |
| Dimension(L*W*H) | 6500*1500*1300MM | Production Capacity | 061000 | |
| Condition | New | Voltage | 380v,3phase | |
| Power(W) | 4+4KW | Type | Tile Forming Machine | |
| Tile Type | Colored |
Product Description
Full Auto Trapezoidal Roof Roll Forming Machine/roof sheet making machine
The advantage of IBR sheet includes beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

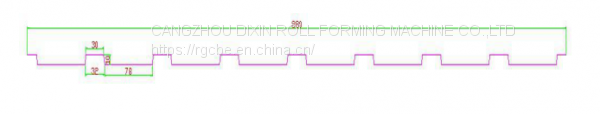

1.Panel drawing according to customers request

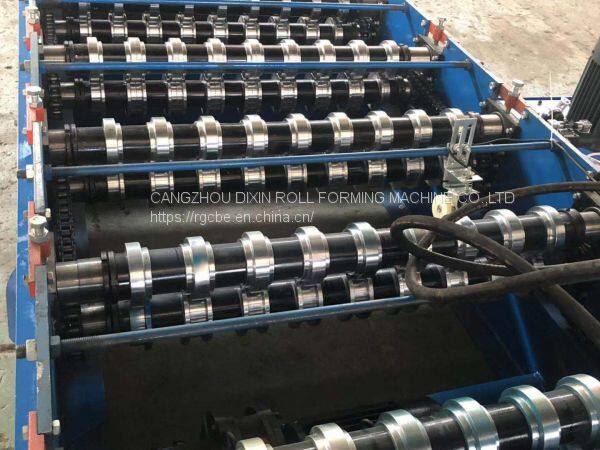

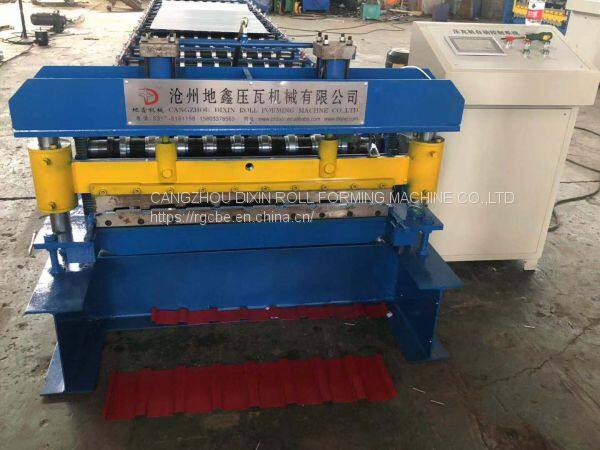

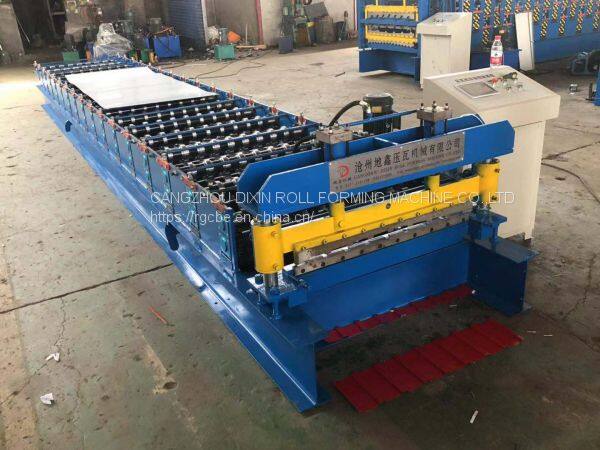

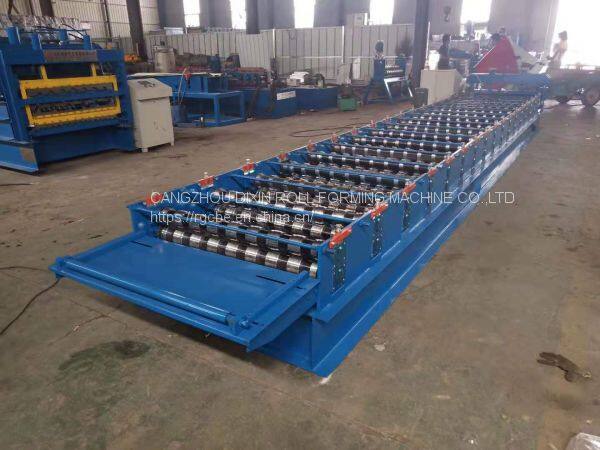

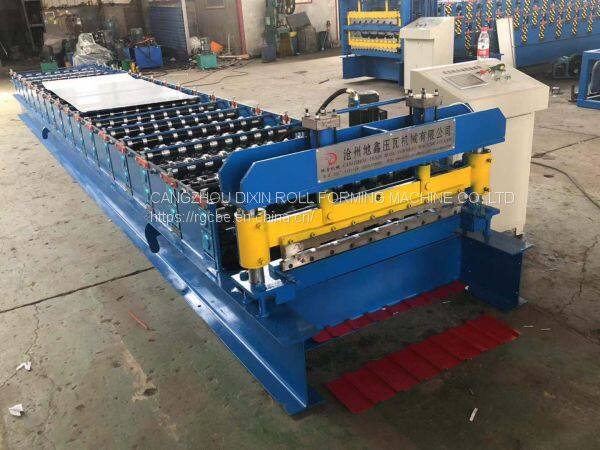

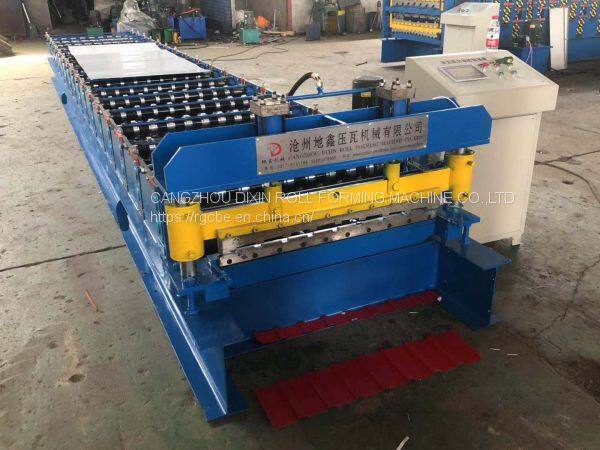

me machine pictures
3.Equipment detailed parameters:
1.Processing material | aluzinc/galvanized steel/colored steel coil |
2.Material thickness | 0.3-0.8mm |
3.Feeding width: | As design or customer request |
4.Effective width | As design or customer request |
5.Main motor power | 4kw |
6.Pump station power | 4kw |
7. Shaft diameter | 75mm |
8.Forming steps | 13steps |
9.Main frame | 300H Steel frame |
10. Side plate thickness | 16mm |
11.Roller material | 45# forged steel, with hard chrome plating |
12.Control systerm | (Taiwan brand)Delta PLC control system with touch screen |
13.Cutting blade material | Cr12 |
14.Working speed | About 10-12m/min |
15. Transmission way | 1 inch chain drive |
16. Machine size (mm) | About 6800*1400*1400mm |
17. Machine weight | About 3ton |
18.Power supply | 380v,3phase,50hz or accodring to customer request |

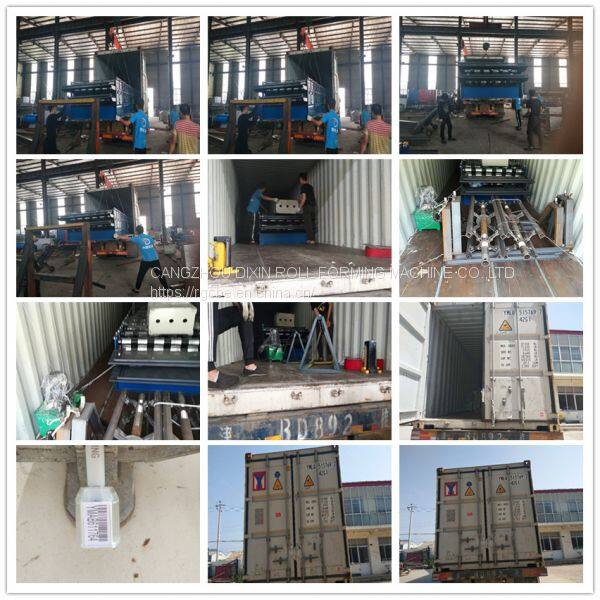

Packing and shipping
Standard export packing and delivery
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
customer visit
If you want to know about more details about our machine ,Please Contact Bella Mobile /what'sapp/Wechat :8618231723279
(I can provide you a top quality with a good price )
