Building material 312mm roofing ridge cap making machine
Why choose Dixin Roll forming machine ?
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
1.Panel drawing
2.Machine technical parameters
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 415mm |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 16 stations |
| 4 | Shaft Diameter | 65-85 mm |
| 5 | Productivity | 3-5 m/min |
| 6 | Rollers' material | 45# steel |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 3 ton |
| 9 | length | 6.8 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC with touch screen |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 4kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |
| 16 | Cutting system | Hydraulic cutter |
Machine Components | ||
No. |
Name |
QTY |
1 |
Manual uncoiler |
1 set |
2 |
Feeding and leveling device |
1 set |
3 |
Roll forming system |
1 set |
4 |
Hydraulic punching and cutting |
1 set |
5 |
Product support frame |
1 set |
6 |
PLC Control System |
1 set |

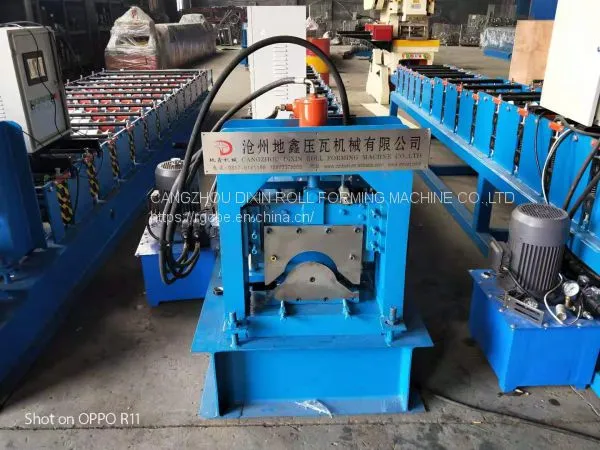

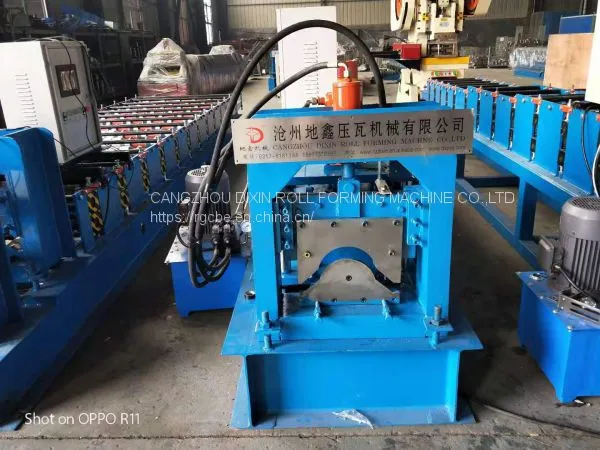

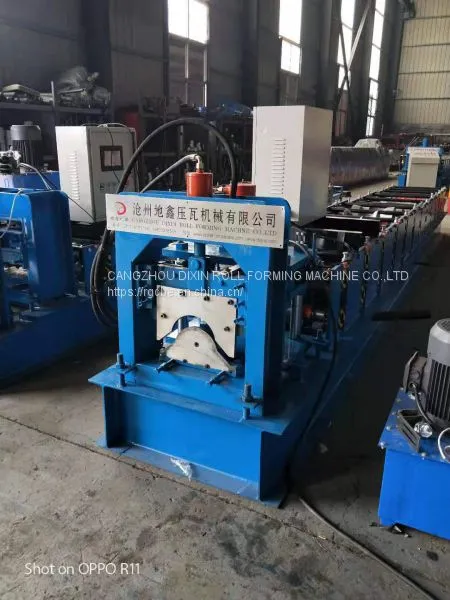

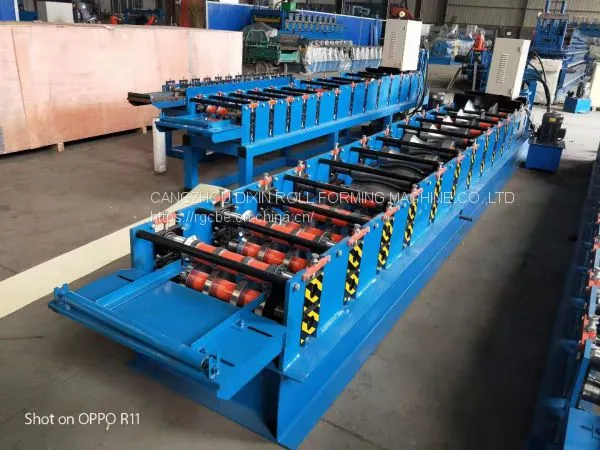

3.Some machine pictures for your reference.

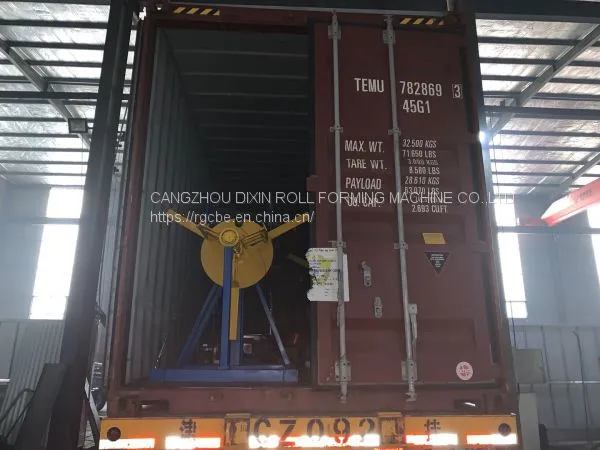

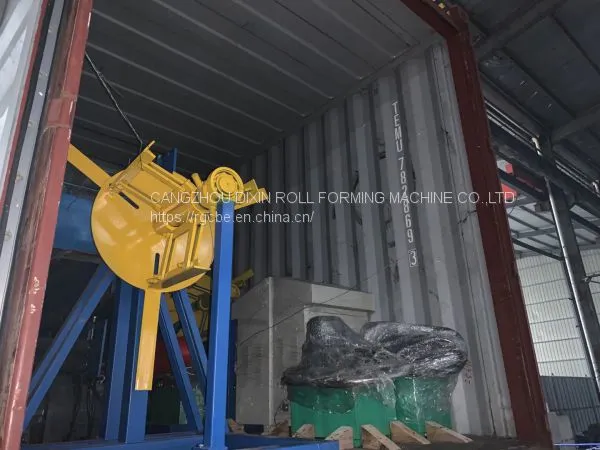

Packing and shipping
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Cangzhou Dixin Roll Forming Machine Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.
Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
