Steel Glazed Tile Double Layer Cold Roll Forming Making Machine

Steel Glazed Tile Double Layer Cold Roll Forming Making Machine thumbnail-1

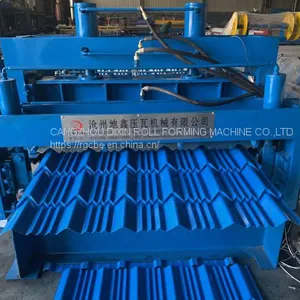

Steel Glazed Tile Double Layer Cold Roll Forming Making Machine thumbnail-2
Steel Glazed Tile Double Layer Cold Roll Forming Making Machine thumbnail-3
Steel Glazed Tile Double Layer Cold Roll Forming Making Machine thumbnail-4
Steel Glazed Tile Double Layer Cold Roll Forming Making Machine thumbnail-5
Steel Glazed Tile Double Layer Cold Roll Forming Making Machine photo-1

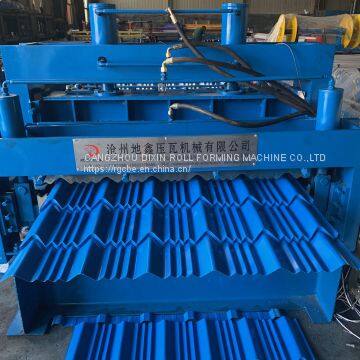

Steel Glazed Tile Double Layer Cold Roll Forming Making Machine photo-2

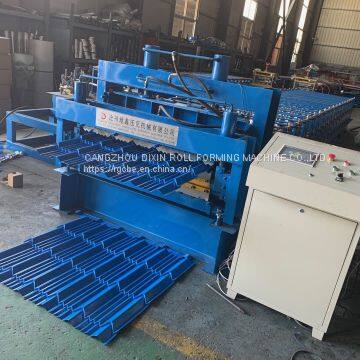

Steel Glazed Tile Double Layer Cold Roll Forming Making Machine photo-3

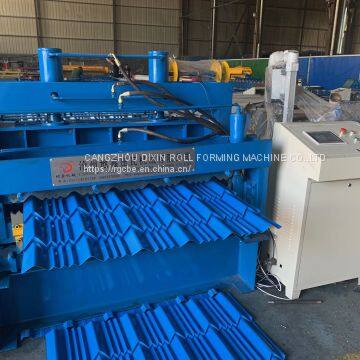

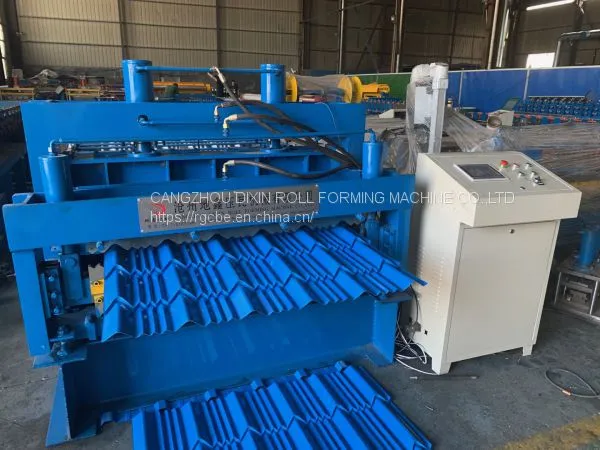

Steel Glazed Tile Double Layer Cold Roll Forming Making Machine photo-4

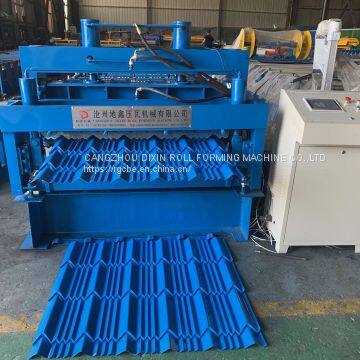

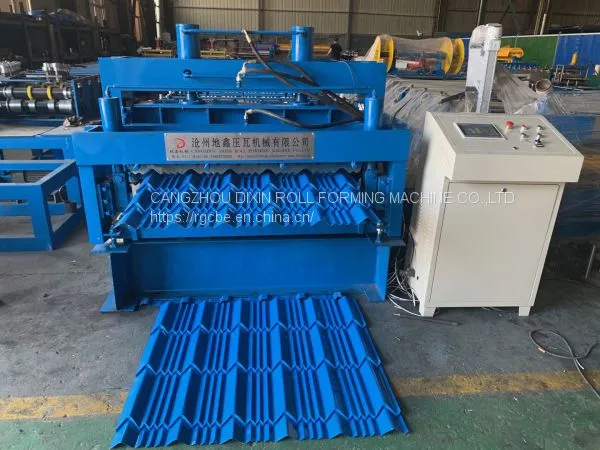

Steel Glazed Tile Double Layer Cold Roll Forming Making Machine photo-5
US$ 9500 - 11000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
dixin
Place of Origin:
China
Model Number:
DX double layer
Contact Supplier Request Quote Chat Now
Cangzhou Dixin Roll Forming Machine Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name dixin
Place of Origin China
Model Number DX double layer
Use Roof
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 YEARS
Weight 4.5 ton
Dimension(L*W*H) 7500*1500*1500MM
Production Capacity 8-12m/min
Condition New
Voltage 380v,3phase
Power(W) 4+4KW
Type Tile Forming Machine
Tile Type Colored


Steel Glazed Tile Double Layer Cold Roll Forming Making Machine

Widely Use

Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.
The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.

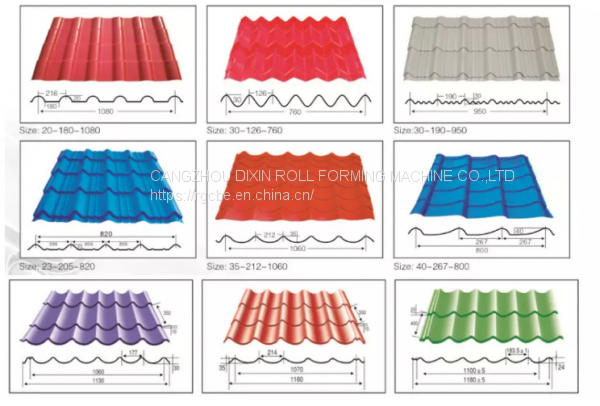

1.Panel drawing

2.Machine Parameter

Specification

We can design according to your require,please send me your profile drawing.

Working  Flow

Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

Name
Glazed Tile IBR Panel Metal Roofing Double Layer Making Machine
Material Spec
Galvanized steel,color steel
Input Width
1220mm
Coil thickness
0.3-0.8mm
Forming speed
glazed tile 2-4m/min,ibr sheet 8-15m/min
Main power
4kw
Hydraulic power
4kw
Roll stand
as the final design
Roller material
high grade No.45 forged steel, with 0.05mm plated coating
Shaft material
high grade No.45 forged steel,diameter 75mm
Size length*width*high
7800*1.6m*1.5m
Total Weight
4.5T
Voltage
380 volt or as you need

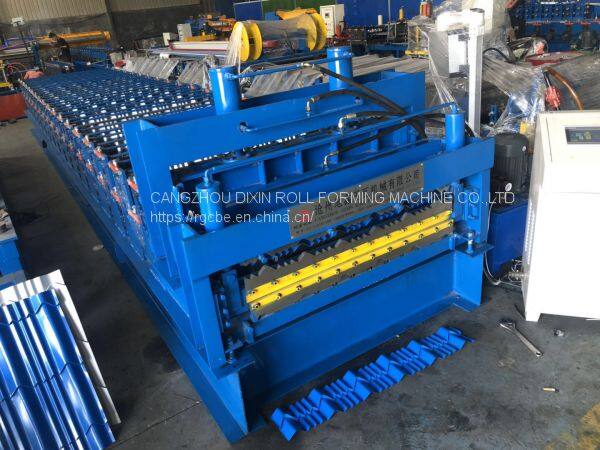

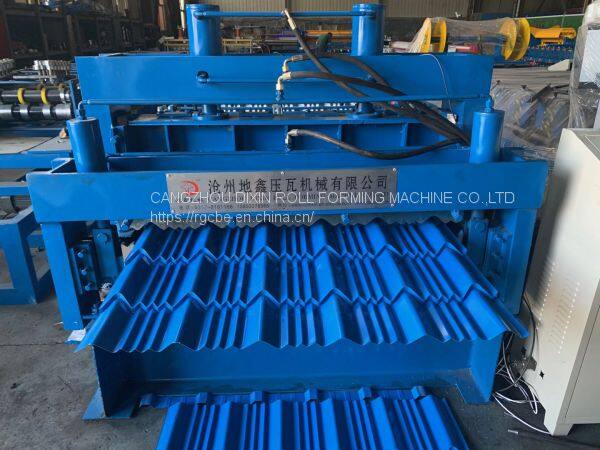

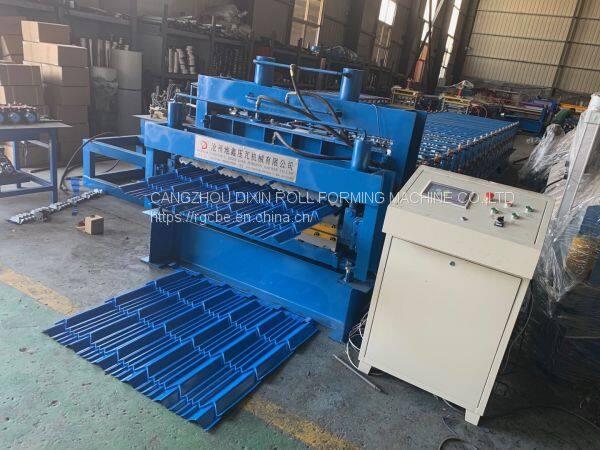

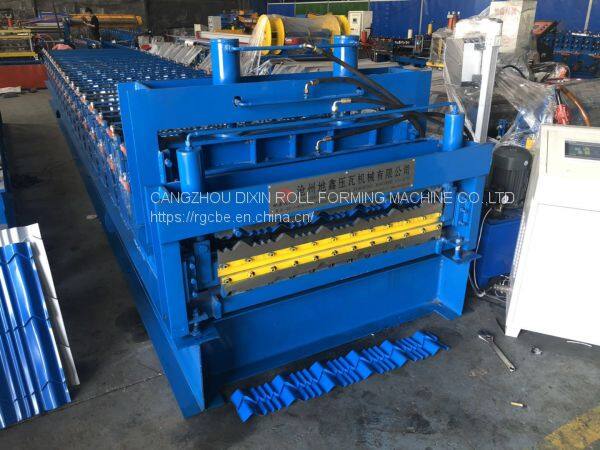

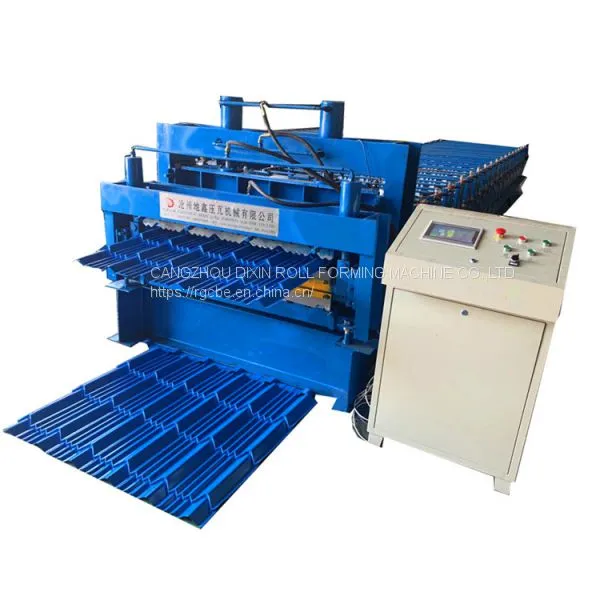

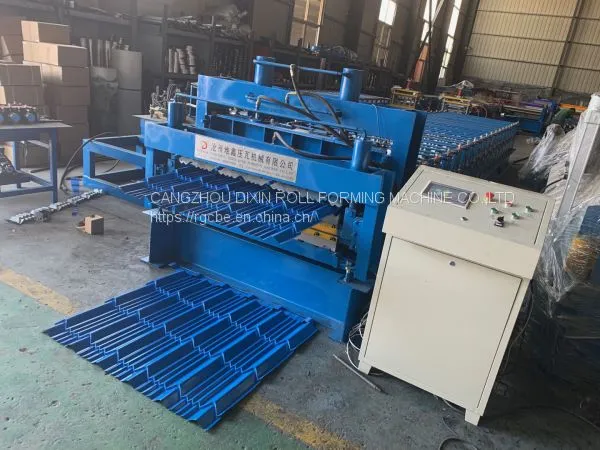

some machine pictures

 packing and shipping details

a.Fit for ocean shipping

b.Main body of roll forming machine fixed to container by 8 steel wire

c.Rollers and shaft is covered with anti-rust oil; Spare parts in carton box

Delivery Detail: 45 working days after deposit.

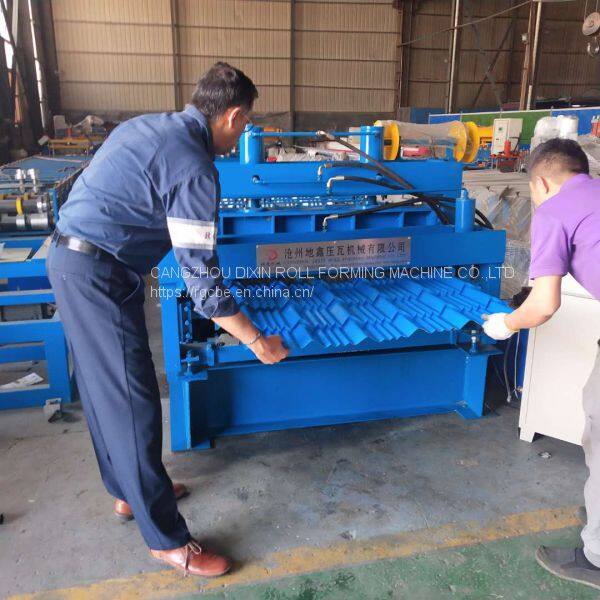

customer visit

Others design

contact way





Product Tags: double layer roll forming making machine , double layer glazed tile forming machine , double roll forming machine
