Embossing Machine Metal Sheet Building Material Embossing Floor for Anti-Slip Pavement Forming Machine

Embossing Machine Metal Sheet Building Material Embossing Floor for Anti-Slip Pavement Forming Machine photo-1

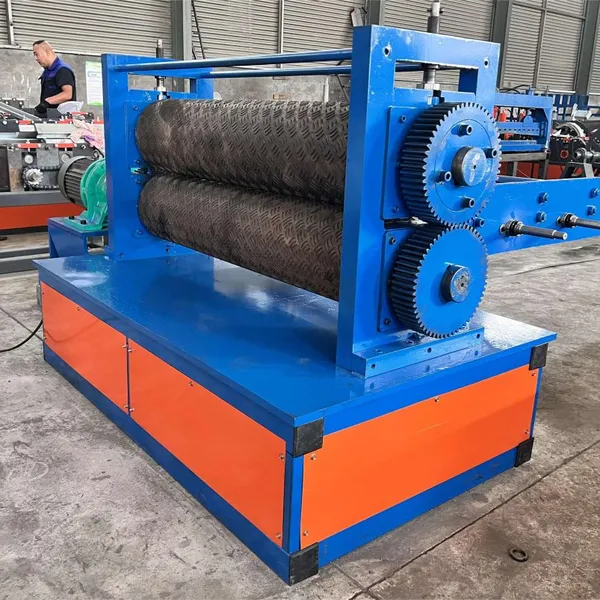

Embossing Machine Metal Sheet Building Material Embossing Floor for Anti-Slip Pavement Forming Machine photo-2
Embossing Machine Metal Sheet Building Material Embossing Floor for Anti-Slip Pavement Forming Machine photo-3

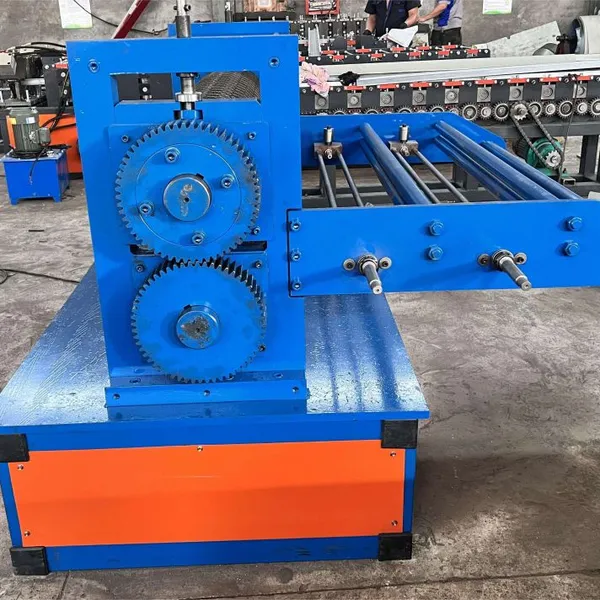

Embossing Machine Metal Sheet Building Material Embossing Floor for Anti-Slip Pavement Forming Machine photo-4

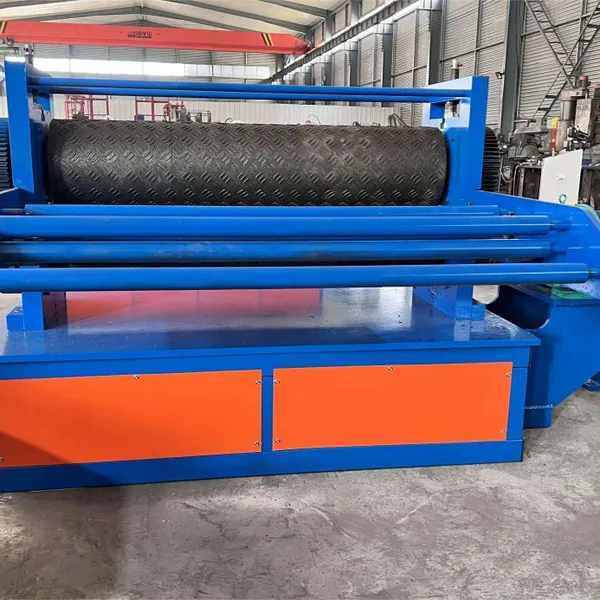

Embossing Machine Metal Sheet Building Material Embossing Floor for Anti-Slip Pavement Forming Machine photo-5
US$ 6499 1 - 2 Piece
US$ 6099 ≥3 Piece
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
2 years
Usage:
Other, metal plate embossing
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
45 days
Certification CE
Warranty 2 years
Usage Other, metal plate embossing
After-sales Service 2 years
Customized Customized
Condition New
Tile Type Glazed
Transmission Method Electric
Transport Package standard
Specification as following
Trademark HOWANN
Origin Cangzhou,Hebei,China
Embossing Machine Metal Sheet Building Material Embossing Floor For Anti-Slip Pavement Forming Machine
Features of equipment
1. Simple circuit, reliable use, easy maintenance
2. Manual feeding, one step in place automatically cut corners, fold four sides, double buckle and trademark.
3. Can customize the mold, various styles.
4. Simple operation, high efficiency.
Equipment Detailed Parameters:
Model
HOWANN 1000
HOWANN 1400
HOWANN 1600
HOWANN 1900
Overall size(mm)
2900*1200*1500
3300*1200*1500
3500*1200*1500
3800*1200*1500
Roller size
φ350*1000mm
φ380*1400mm
φ400*1600mm
φ450*1900mm
Material of roller
42CrMo
42CrMo
42CrMo
42CrMo
Roller hardness
HRC55-58
HRC55-58
HRC55-58
HRC55-58
Way of embossing
Both up and down rollers embossing at same
Both up and down rollers embossing at same
Both up and down rollers embossing at same
Both up and down rollers embossing at same
Embossing regulation
By screw
By screw
By screw
By screw
Motor power(KW)
7.5
11
15
15
Line speed
0-18m/min
0-30m/min
0-40m/min
0-45m/min

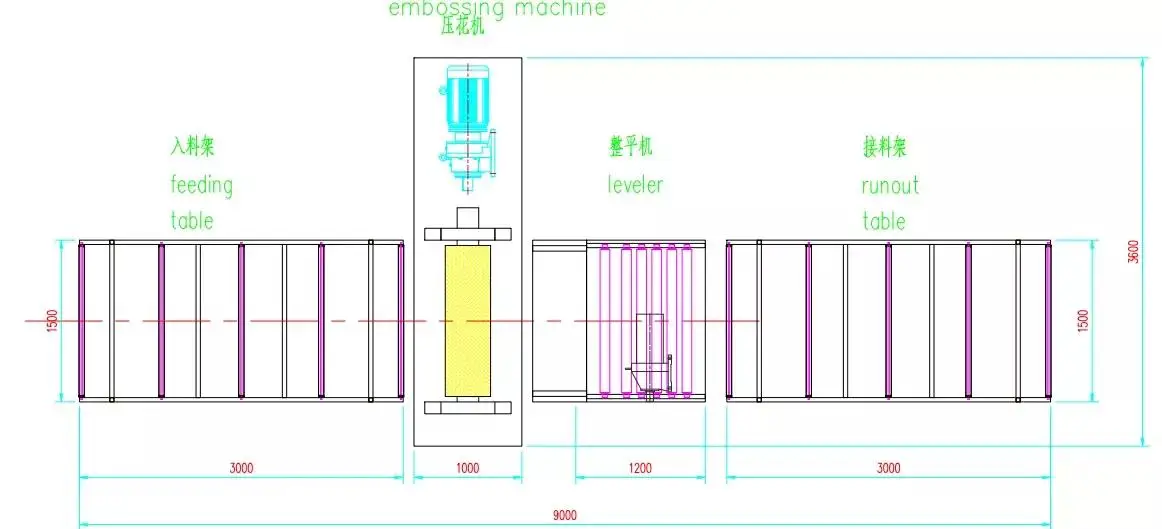

Product Configuration

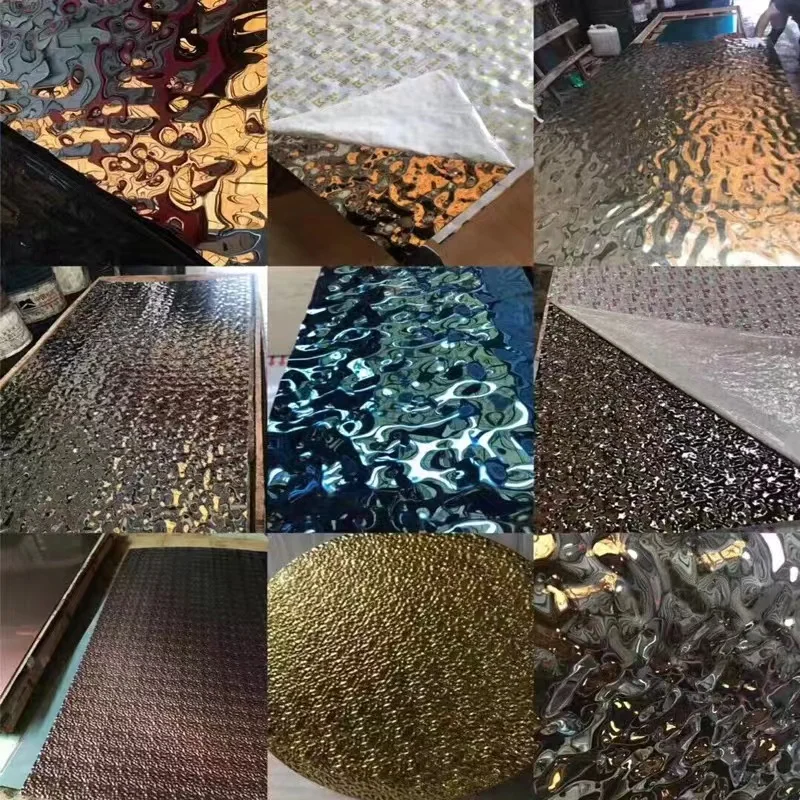

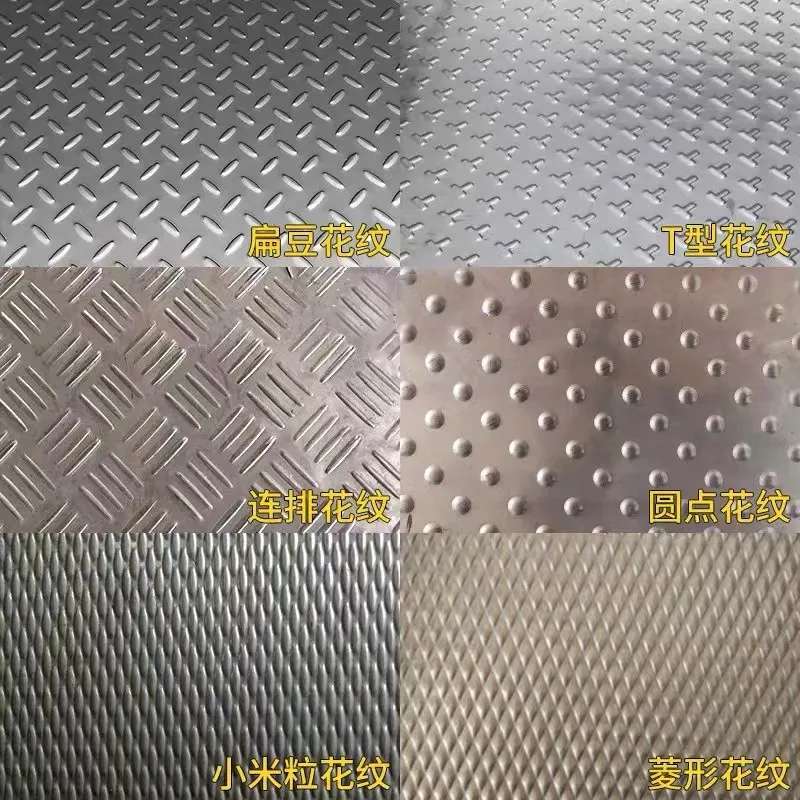

There are also many other pattern for your reference:
Product Details

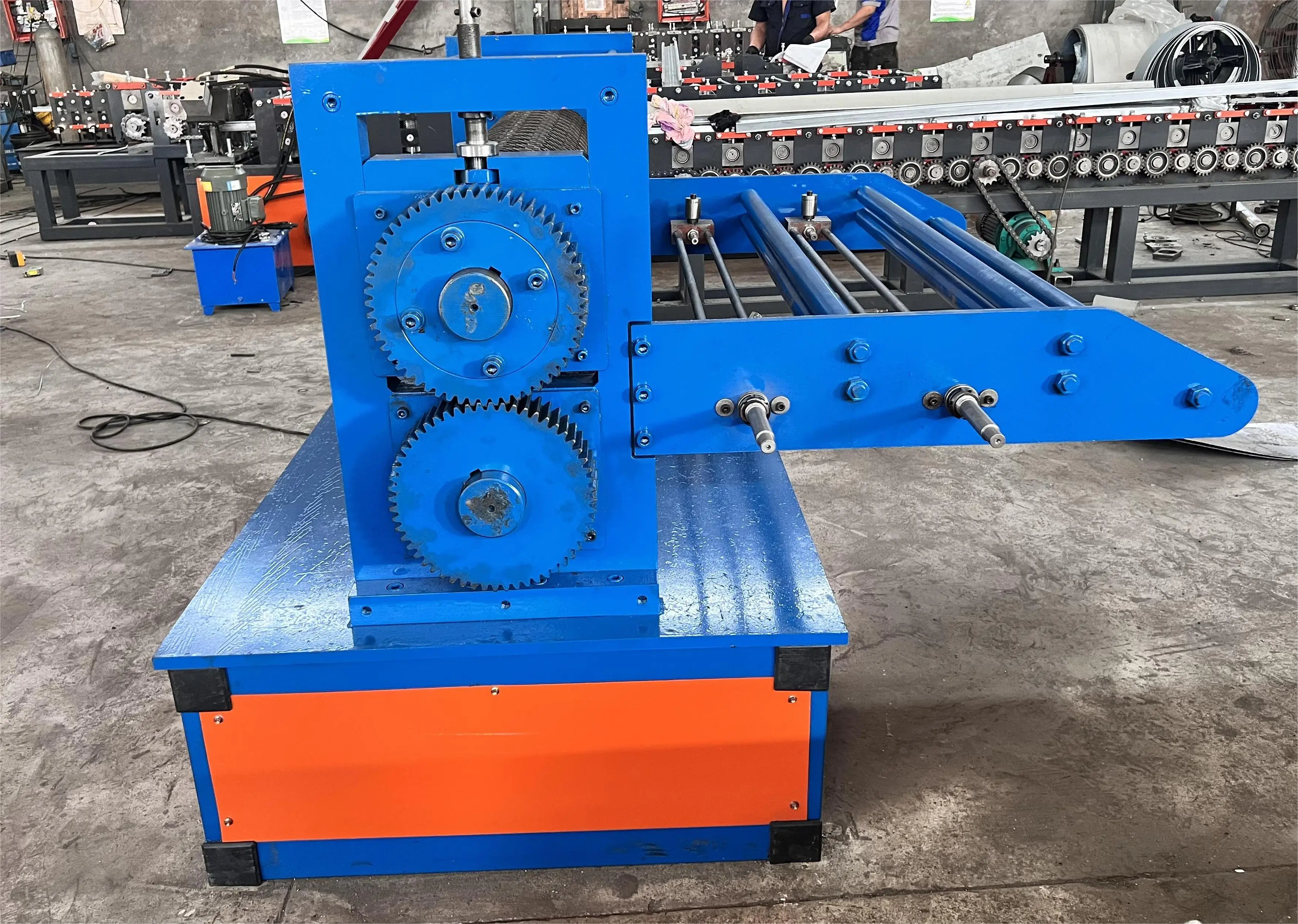

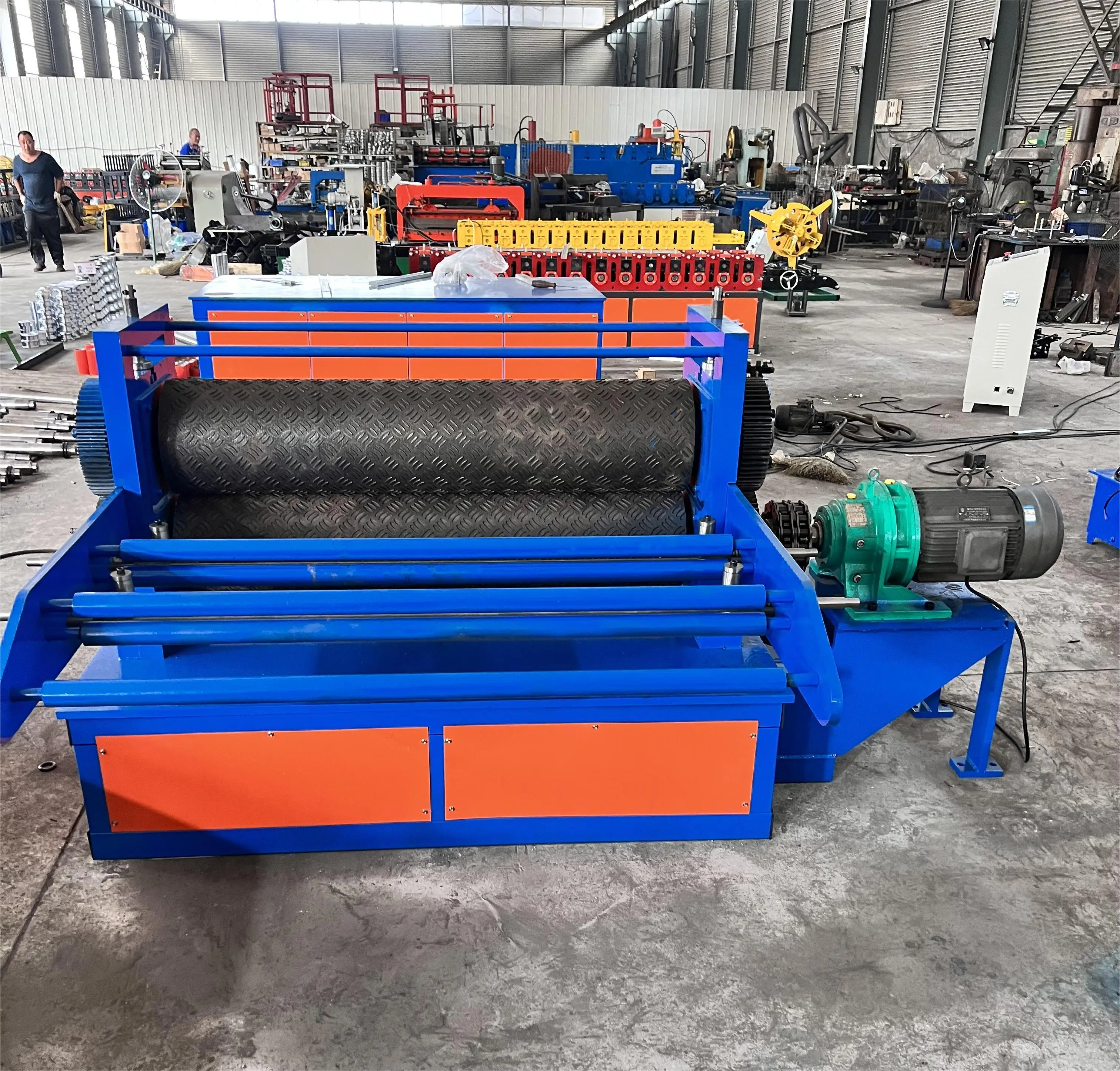

Metal sheet embossing machine main frame
Embossing machine are respectively installed at both ends of the machine base, the screw rods on one side are connected to the
pulleys, the screw rods on the two sides are respectively sleeved with connecting collars, the collars are connected to the
brackets, and the brackets pass through the side plates on both sides.

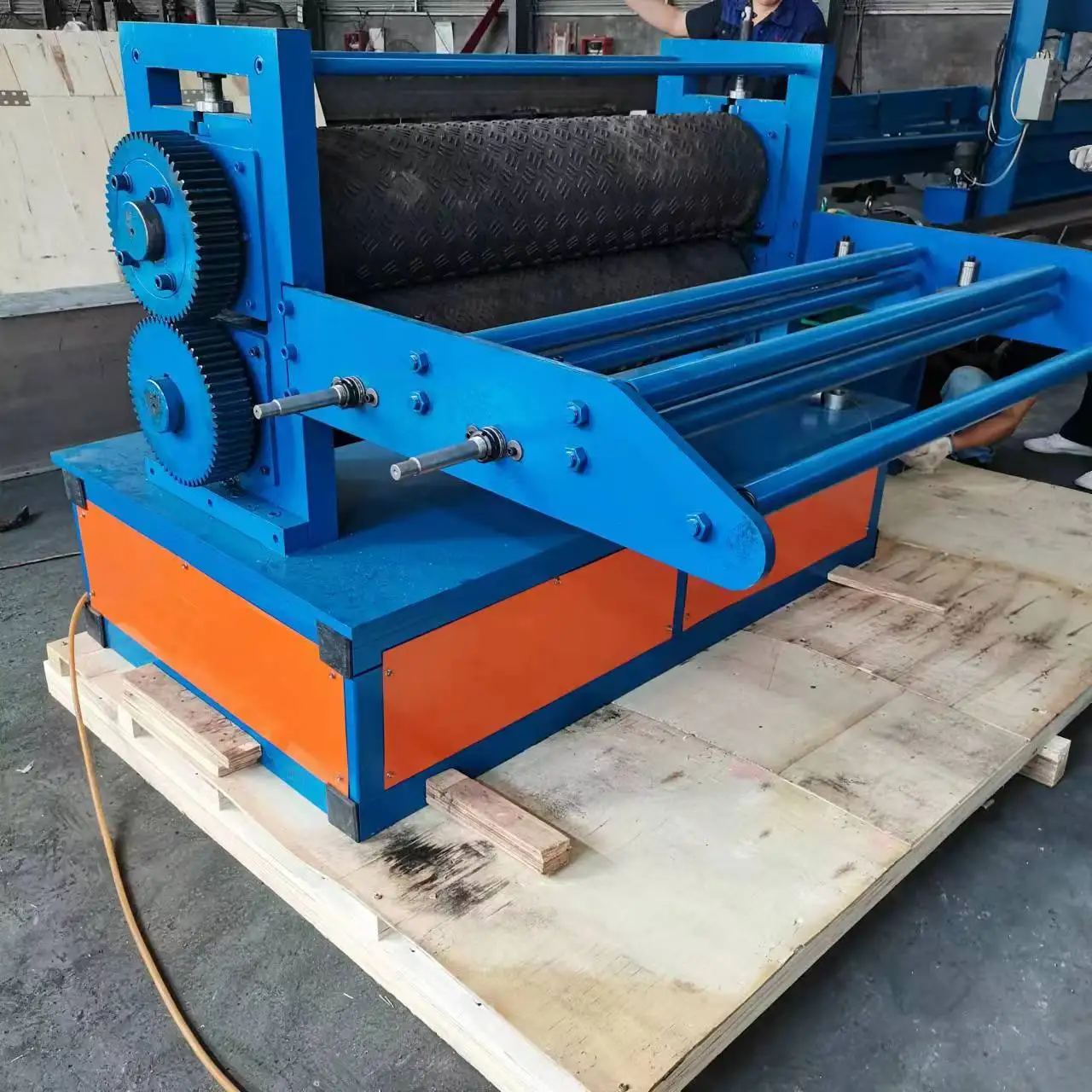

Feed table of metal sheet embossing machine


Numerical control feeding and stopping, sensitive induction and accurate feeding. Avoid loose coils and loose coil devices to
avoid loose coils in the feeding project.

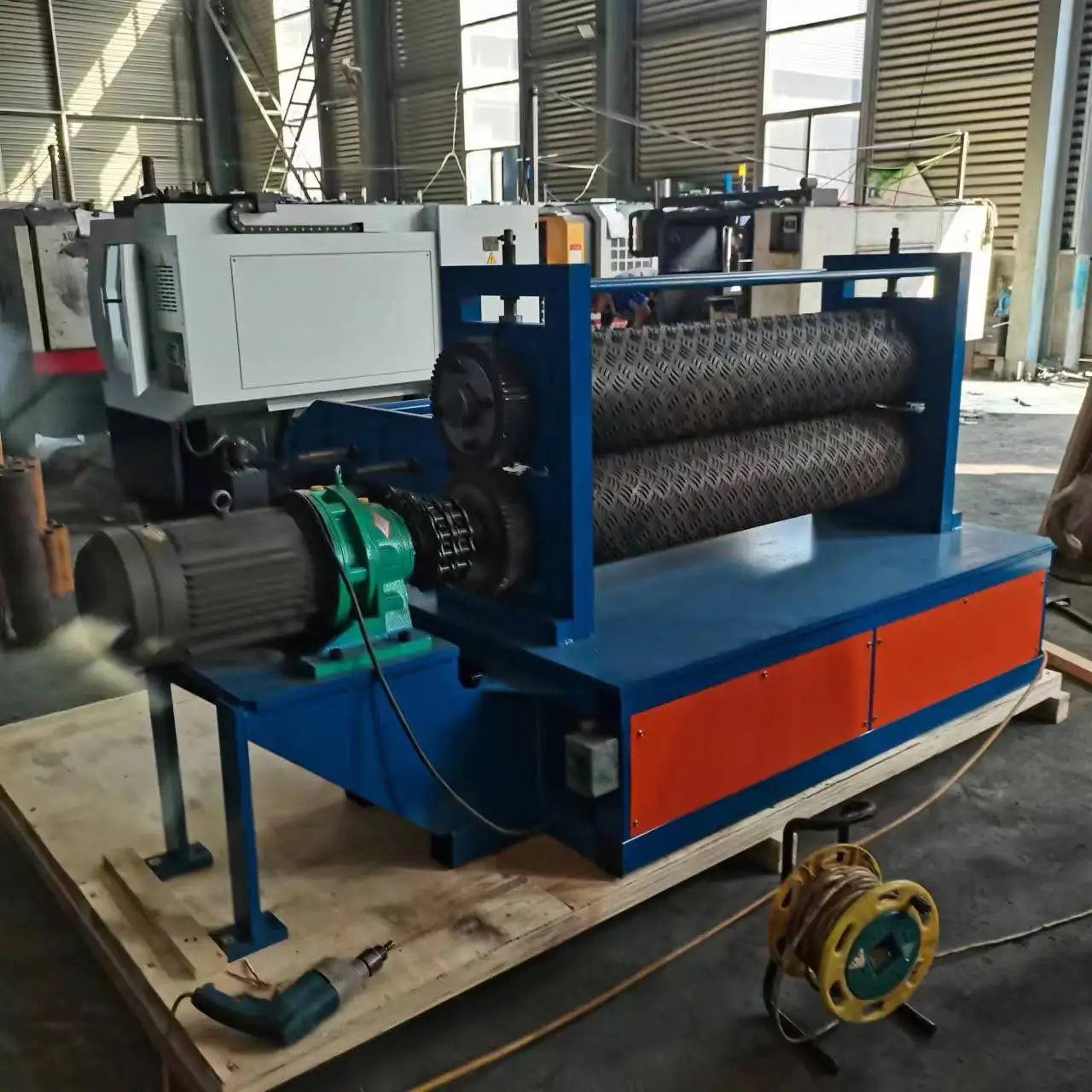

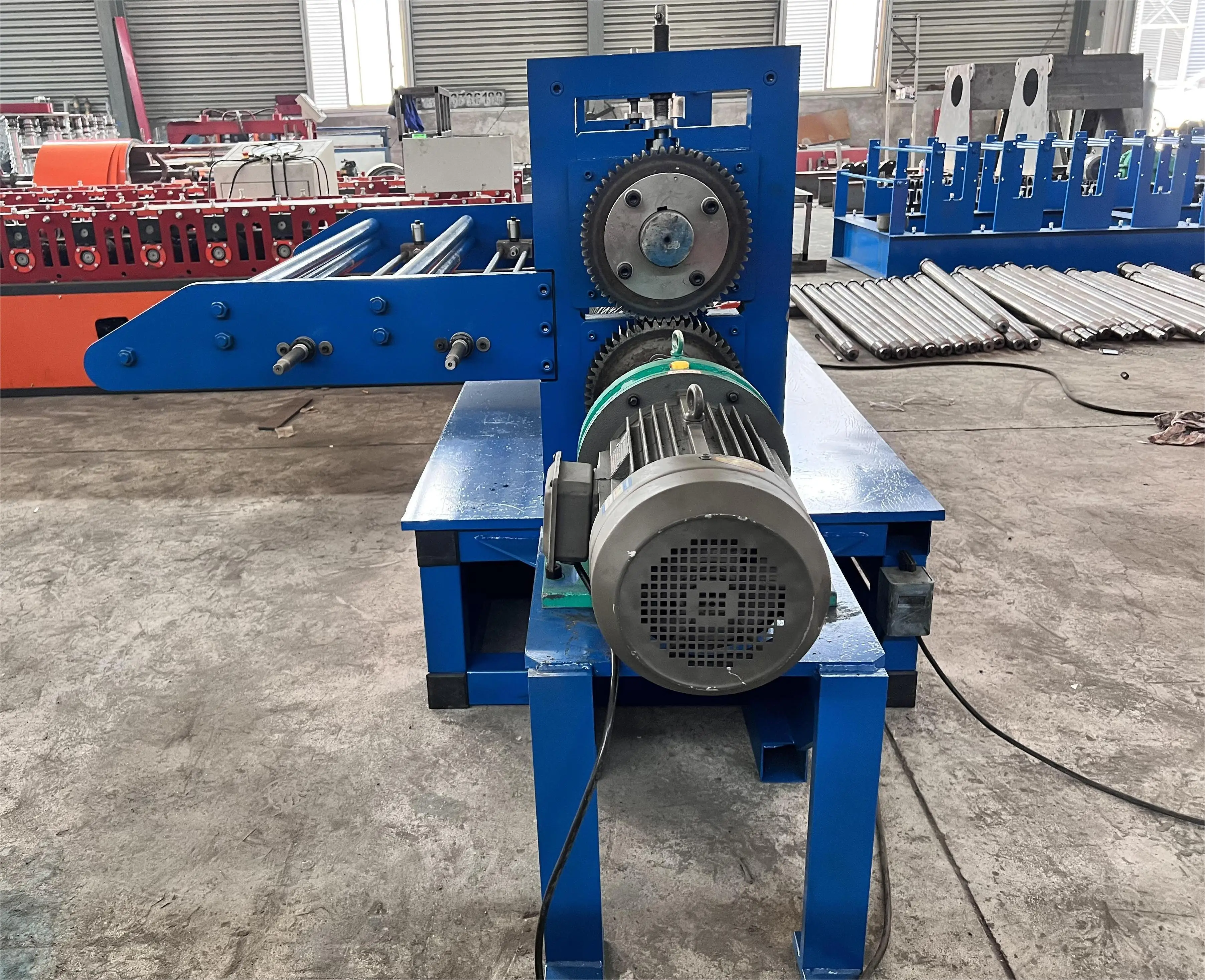

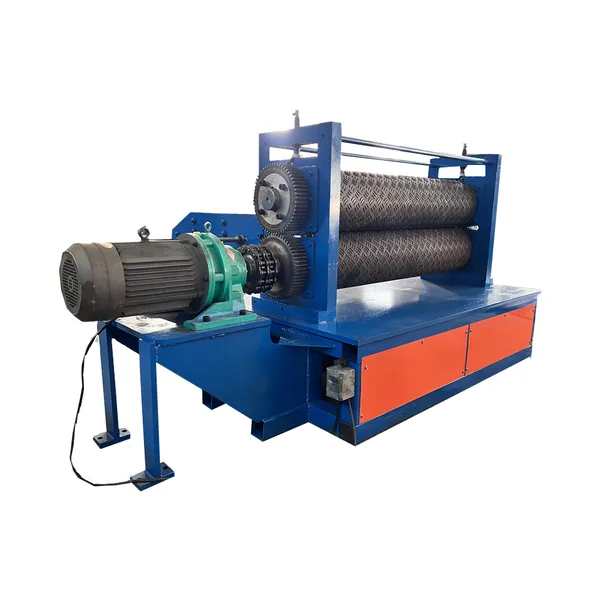

Metal sheet embossing machine Motor and reducer


Geared motors are widely used in the steel industry, machinery industry, etc.

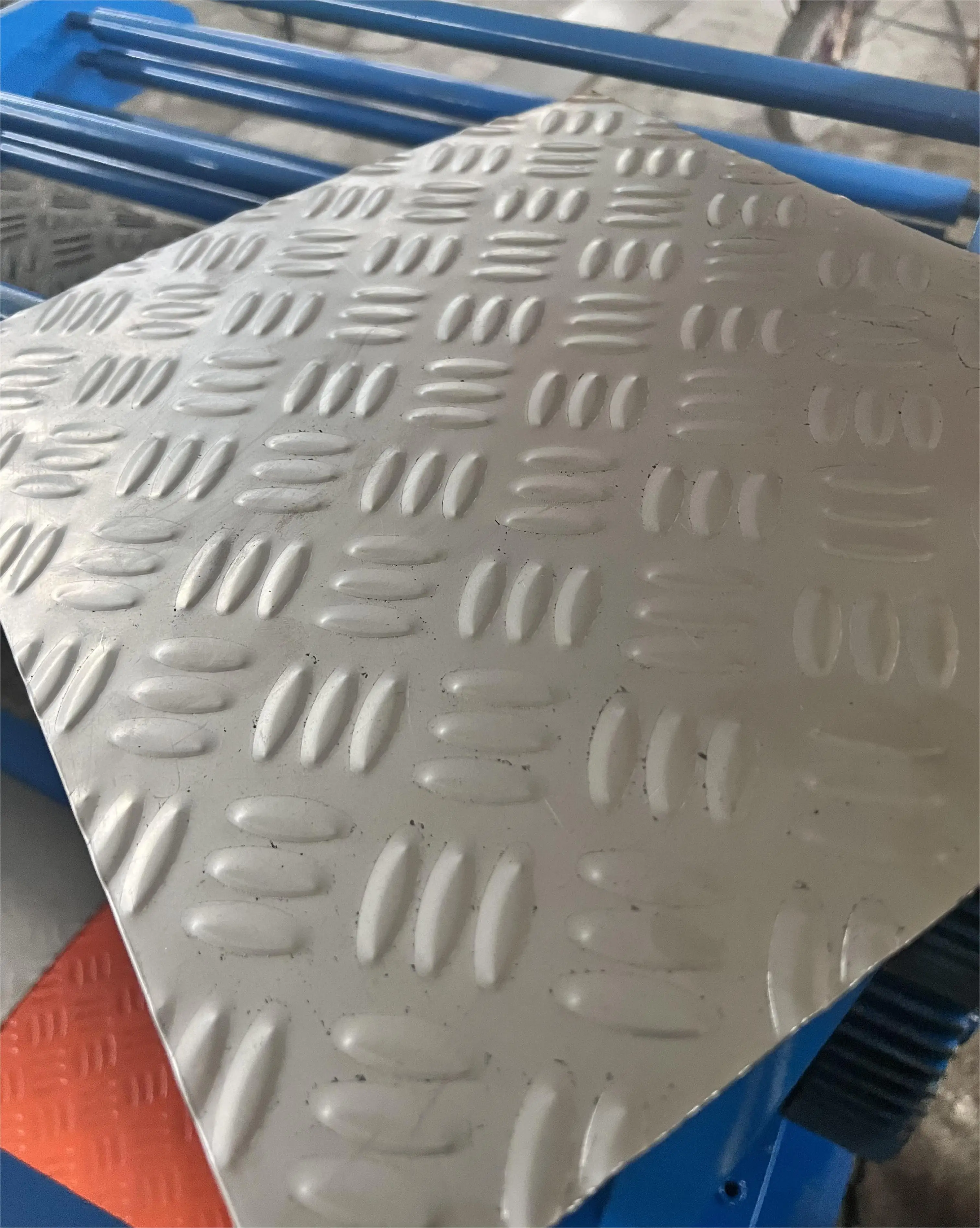

Product Show
Product Final Shape can be customized.
We can process the machine according to customers' demand and also can give professional suggestions if the customers need~
Why Choose Us
Good feedback from Customers!
FQA

Q: Are you a trading company or a factory?

A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?

A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?

A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?

A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?

A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?

A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

Q: Can we become your agent abroad?

A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
