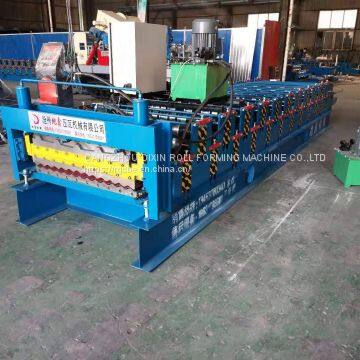

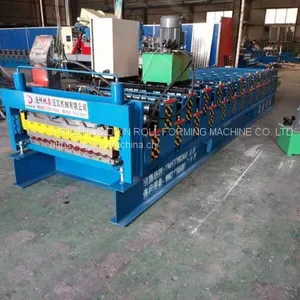

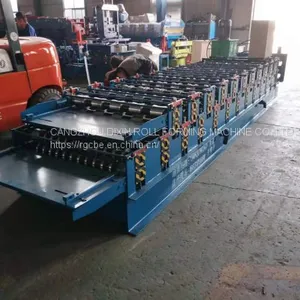

Double Layer Metal Roofing Sheet Trapezoid Profile Roll Forming Making Machine
US$ 8000 - 9800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
dixin
Place of Origin:
China
Model Number:
DX-840/840 DOUBLE
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
30 days
Related Products
-
Double Layer Steel Wall Sheet Roller Machine/double Roof Forming MachineUS$ 8000 - 9800MOQ: 1 Set -
840/836mm Roof Sheet Double Layer Forming Machine/color Steel Plate MachineUS$ 8000 - 9800MOQ: 1 Set
-
Double Layer Aluminium Roofing Sheet Roll Forming Making MachineUS$ 8000 - 9800MOQ: 1 Set
-
Metal Roofing Sheet Double Layer Tile Press Cold Making Roll Forming MachineUS$ 9500 - 11000MOQ: 1 Set
-
Glazed Tile IBR Panel Metal Roofing Double Layer Making MachineUS$ 9500 - 11000MOQ: 1 Set
Brand Name
dixin
Place of Origin
China
Model Number
DX-840/840 DOUBLE
Use
Roof
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 YEARS
Weight
4 ton
Dimension(L*W*H)
6500*1500*1600MM
Production Capacity
8-12M/MIN
Condition
New
Voltage
380V 50Hz 3phases or custome
Power(W)
8kw
Type
Tile Forming Machine
Tile Type
Colored
Double Layer Metal Roofing Sheet Trapezoid Profile Roll Forming Making Machine
Double Layer Roll Forming Machine are widely used in building: the steel-structured large-scale warehouses, plants,
supermarkets,shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different
kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests

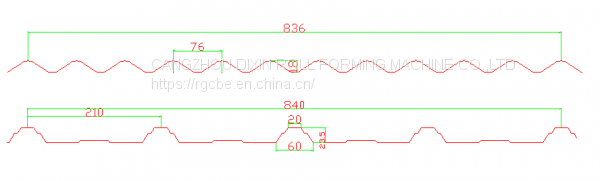

1.Panel drawing for your choose

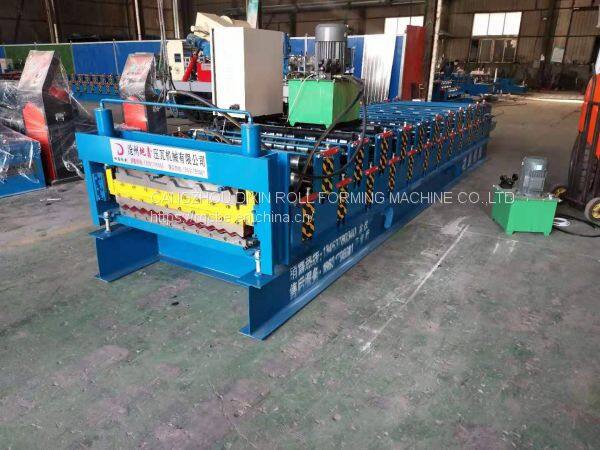

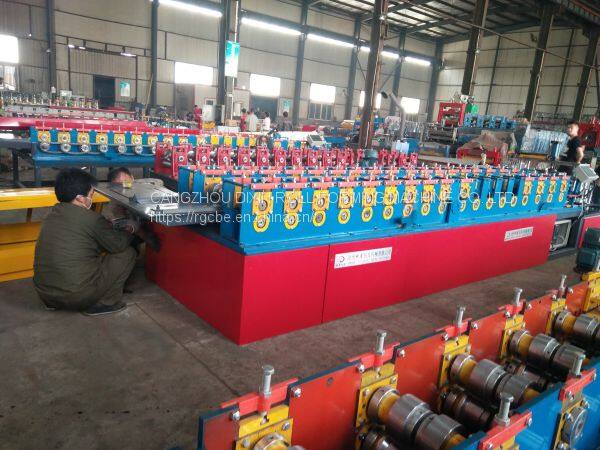

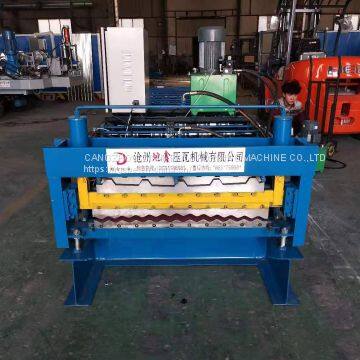

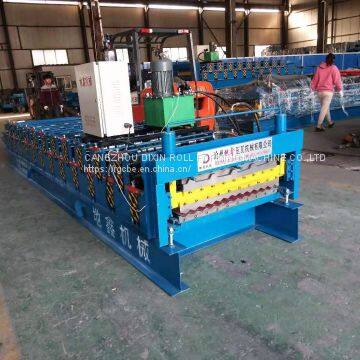

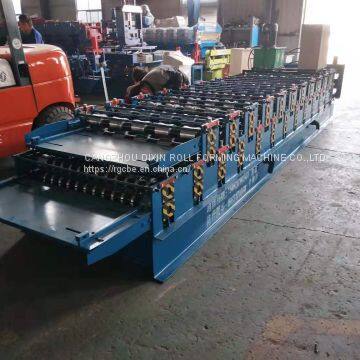

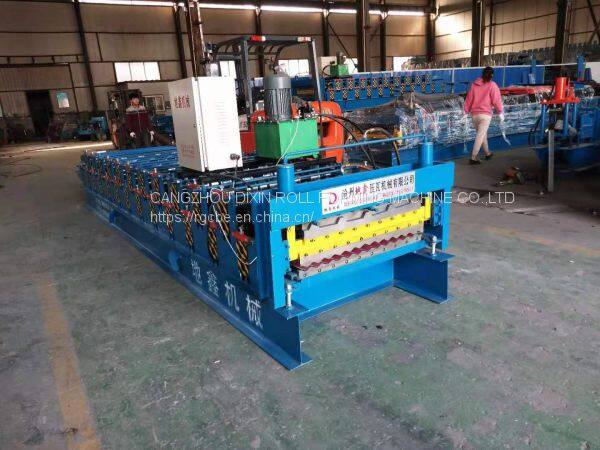

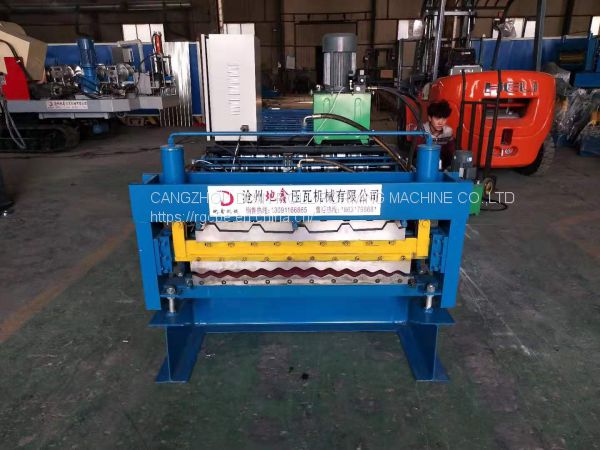

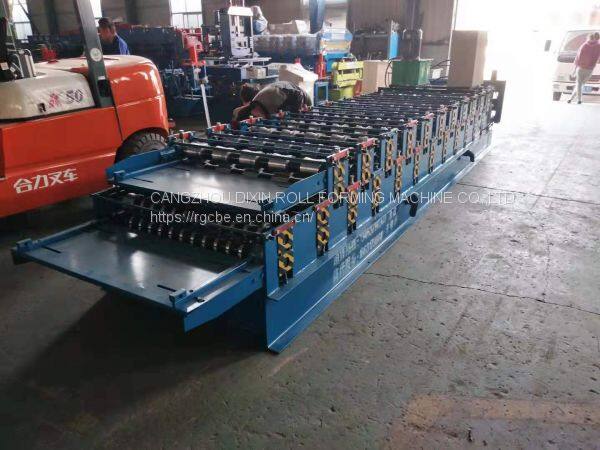

me machine pictures for your reference.
3.Equipment detailed parameters:
1.Processing material |
aluzinc/galvanized steel/colored steel coil |
2.Material thickness |
0.3-0.8mm |
3.Feeding width: |
1000mm |
4.Effective width |
840/836mm |
5.Main motor power |
4kw |
6.pump power |
4kw |
7. Shaft diameter |
75mm |
8.Forming steps |
13steps |
9.Main frame |
300H Steel frame |
10. Side plate thickness |
16mm |
11.Roller material |
45# forged steel, with hard chrome plating |
12.Control systerm |
(Taiwan brand)Delta PLC control system with touch screen |
13.Cutting blade material |
Cr12 |
14.Working speed |
About 10-12m/min |
15. Transmission way |
1 inch chain drive |
16. Machine size (mm) |
About 6500*1500*1500mm |
17. Machine weight |
About 3.2ton |
18.Power supply |
380v,3phase,50hz or accodring to customer request |
4. Company information
CANGZHOU DIXIN ROLL FORMING MachineManufacture Co.,ltd is a professional manufacturer and exporter which has its own factory and
also cooperate with several production factories and associated enterprises, concerning with the design, development and
production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll
forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of
advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development,
manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.

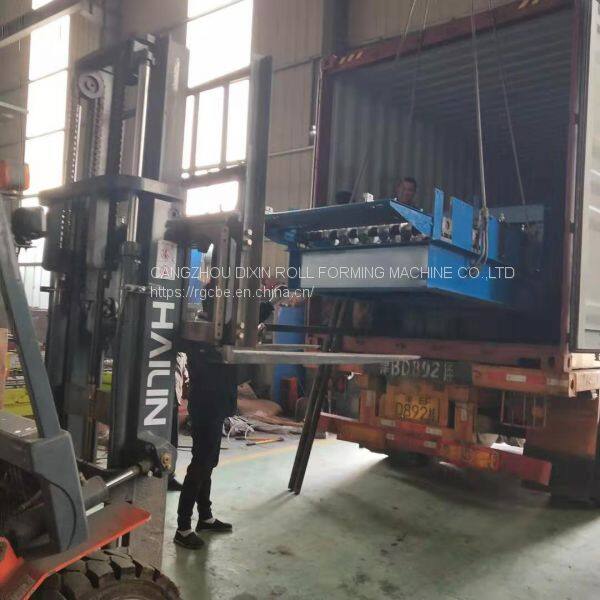

5.Packing and shipping details
Standard export packing and delivery
1. Main body of roll forming machine and decoiler is nude packing.
2. Rollers, shafts, PLC, pump and cutter are packed with water-proof plastic film, spare parts in carton box.
3. One set of machine needs a 20'container to shipping
6.Our Services
.
7.FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warrenty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
Please contact Bella tel/whatsapp:008618231723279
