Metal Roofing Sheet Double Layer Tile Press Cold Making Roll Forming Machine
- 25 Set / Sets per Month
- Tianjin port
- T/T L/C
- 30 days
- Glazed Tile IBR Panel Metal Roofing Double Layer Making Machine
- Steel Glazed Tile Double Layer Cold Roll Forming Making Machine
- Double Layer Roof Sheet Roll Forming Machine Glazed Tile Making Machine
- Glazed Tile Steel House Roof Double Layer Roll Forming Making Machine
- Building material 312mm roofing ridge cap making machine
- 312mm glazed cap ridge tile roll forming machine
Product Details
Brand Name: | dixin | Place of Origin: | China | Model Number: | DX double layer |
Use: | Roof | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 YEARS | Weight: | 4.5 ton | Dimension(L*W*H): | 7500*1500*1500MM |
Production Capacity: | 8-12m/min | Condition: | New | Voltage: | 380v,3phase |
Power(W): | 4+4KW | Type: | Tile Forming Machine | Tile Type: | Colored |
Product Description
Metal Roofing Sheet Double Layer Tile Press Cold Making Roll Forming Machine
a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency
1.Panel drawing
2.Machine Parameter
Material Thickness | 0.3—0.8mm |
Un Coiler | 5 tons manual |
Rolling Speed | glazed tile 2-4m/min,ibr sheet 10-15m/min |
Roller Stations | 18 stations |
Roller material | 45# steel, coated with chrome |
Maim Motor Power | 4kw |
Hydraulic cutting Power
| 4kw |
Material Of Cutting | CR12 with quench treatment |
Hardness | HRC58-62 |
Tolerance | +-1.5mm |
Electric Source | 380V, 50HZ,3 phase Also can satisfy customer’s require |
Control System | PLC with touch screen |
Way Of Drive | 1.2 inch single chain |

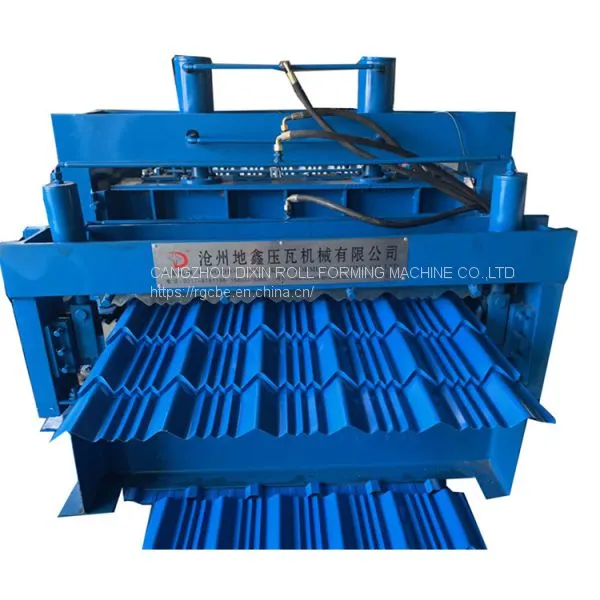

some machine pictures

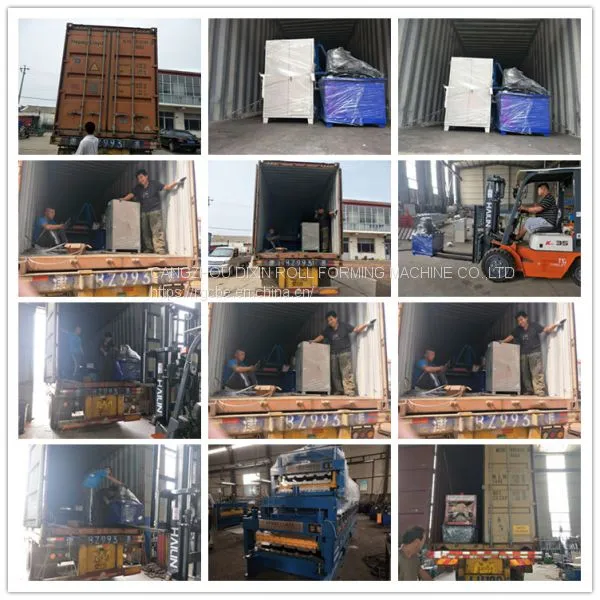

packing and shipping details
a.Fit for ocean shipping
b.Main body of roll forming machine fixed to container by 8 steel wire
c.Rollers and shaft is covered with anti-rust oil; Spare parts in carton box
Delivery Detail: 45 working days after deposit.
customer visit
contact way
