Two Profiles Double Deck Cold Roll Forming Machine
Our company is a manufacturer of roll forming machine. At present, our products have been exported to more than 70 countries and regions over the world, and maintained good cooperative relations with customer

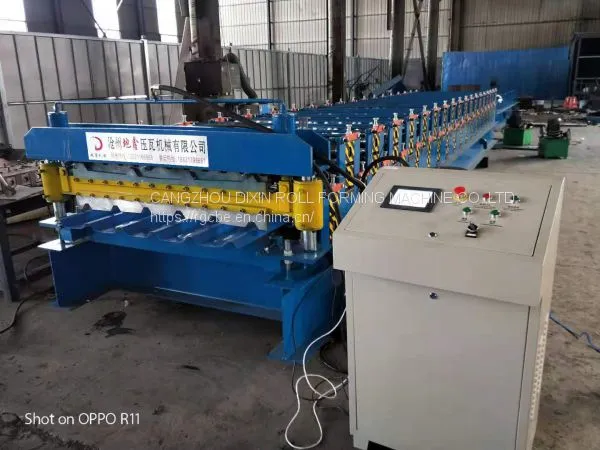

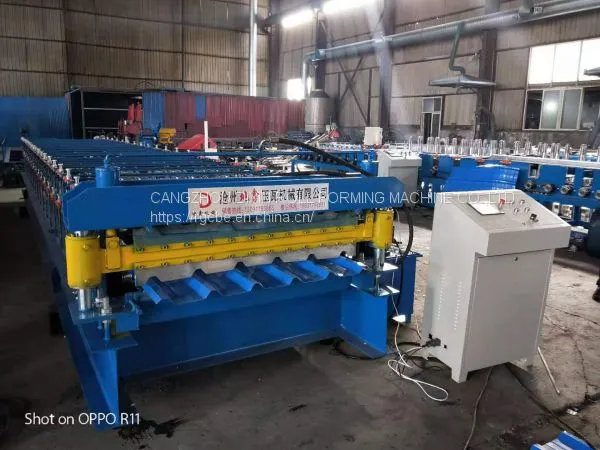

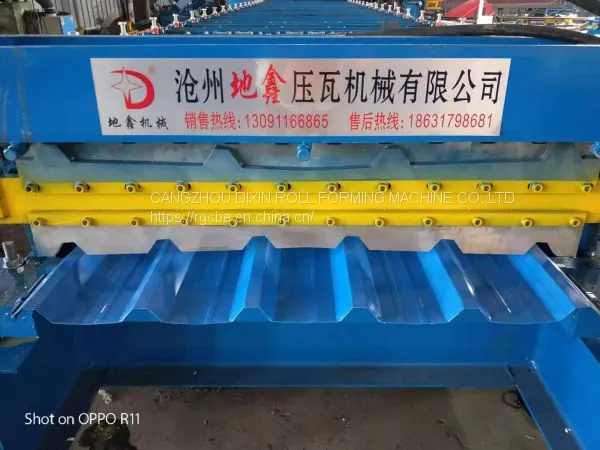

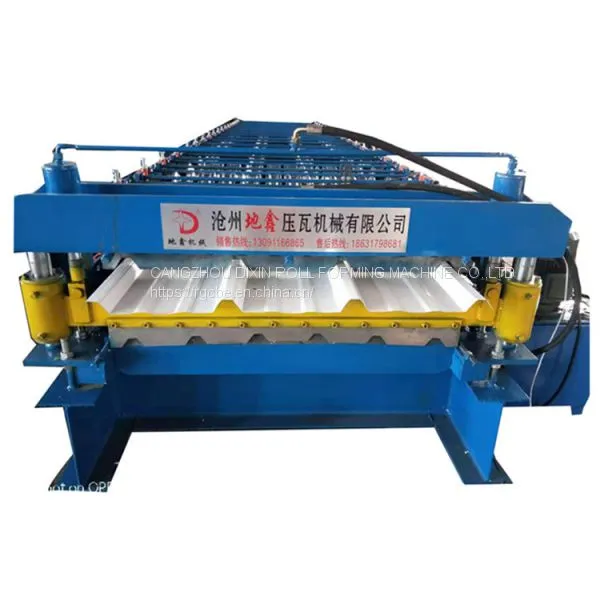

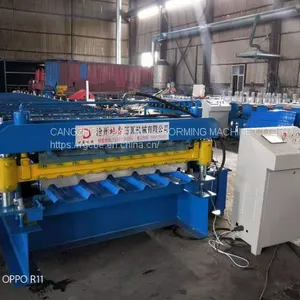

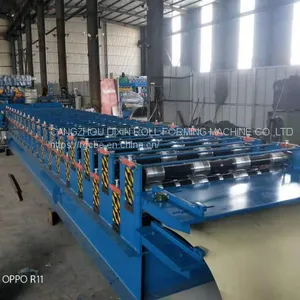

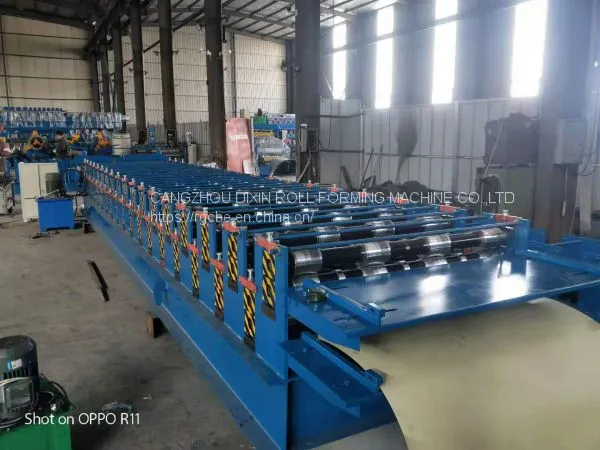

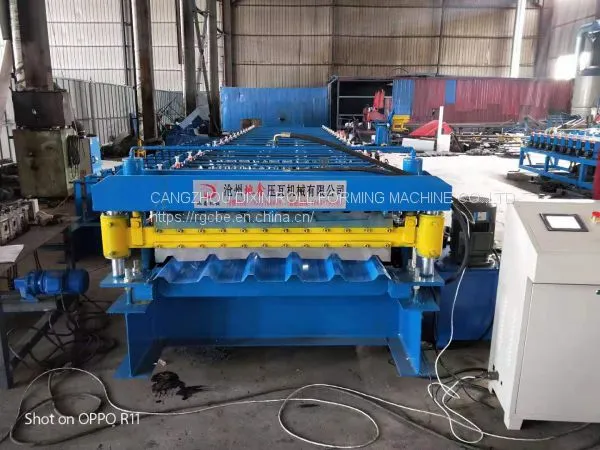

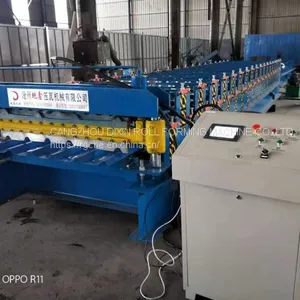

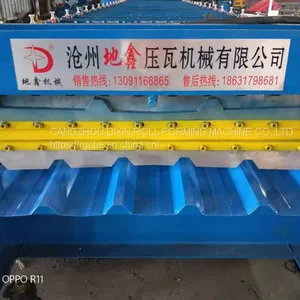

some machine pictures
Specification:
Performances |
Parameters |
|
Suitable material |
PPGI or galvanized coil |
|
Suitable material |
Raw material width:1220mm thickness 0.25-0.8mm |
|
Productivity |
10-18m/min |
|
Roller forming steps |
18steps |
|
Roller material |
45# after heating treatment and with chromium |
|
Spacer, balance bar, screw |
All do chromium to ensure beautiful appearance |
|
Diameter of active shaft |
75mm |
|
Main machine structure |
350H |
|
Wall plate |
18mm |
|
Power |
7.5KW main motorno noise |
|
Shear |
Hydraulic shear, blade material CR12 |
|
Transmission |
1.2inch chain |
|
Control system |
PLC(Panasonic)control withTouch Screen, Mitsubishi frequency converter Encoder(Omron) |
|
Hydraulic system |
5.5kw |
|
Voltage |
AC380V/50HZ/3 phase or AC220-240V/60HZ/3 phase or AC220-240V/60HZ/single phase |
|
Upgrade manual decoiler |
Max loading weight:6500kgs,Inner Diameter:508-610mm,max coil width:1250mm |
|
Set off table |
one pcs, 6 step roller, each is 3000mm long |
|
Size(length*width*height) |
9000*1700*1300MM |
|
Weight |
6500kgs |
|
Component |
Upgrade manual decoiler-guide feeding-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table |
|
Factory shows
Our factory Established in 2001, our factory gets specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, IBR Sheets Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.
The machines produced by our factory have been sold worldwide such as Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are fimiliar with the different needs for different markets.
Our company insists on the service aim:quality first,credit first.we believe that quality is the lifeblood for enterprise.we will supply satisfied products and after-sale service for every client.
we can produce according to customers design and request. welcome send to your inquiry!
welcome send your inquiry ,any questions please contact Bella 008618231723279
