light steel keel stud roll forming machine/drywall steel material light keel machine
- Tianjin port
- T/T L/C Cash
- 30 days
You May Like
-
Metal furring keel channel house structure roll forming machine
-
Steel Profile Keel Steel Frame Light Gauge Roll Forming Machine
-
Galvanized light steel profile machine/drywall steel material light keel roll forming machine
-
Double Deck Metal Steel Roof Wall Tile Cold Roll Forming Machine
-
Two Profiles Double Deck Cold Roll Forming Machine
-
Metal Double Layer Roof Tile Making Machinery
Product Details
Brand Name | DIXIN | Place of Origin | China | |
Model Number | DX light steel | Use | Roof | |
Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
Warranty | 1 YEARS | Weight | 2.5ton | |
Dimension(L*W*H) | 5500*1200*1400mm | Production Capacity | 30 set per month | |
Condition | New | Voltage | 380v,3phase | |
Power(W) | 5.5+4kw | Type | Tile Forming Machine | |
Tile Type | Colored Steel |
Product Description
light steel keel stud roll forming machine/drywall steel material light keel machine
Light steel keel is one kind of new type of construction material, which is widely used in hotel, departure lounge, sation, playground, shopping mall, factory, office building, old building reconstruction, inner decoration, and ceiling. The suspended ceiling of light steel keel is light weight, hight strength, waterproof, anti-shock, dustproof, sound insulation, sound absorption, constant temperature as well as short building period and easy installation.
1.Panel drawing for your reference.

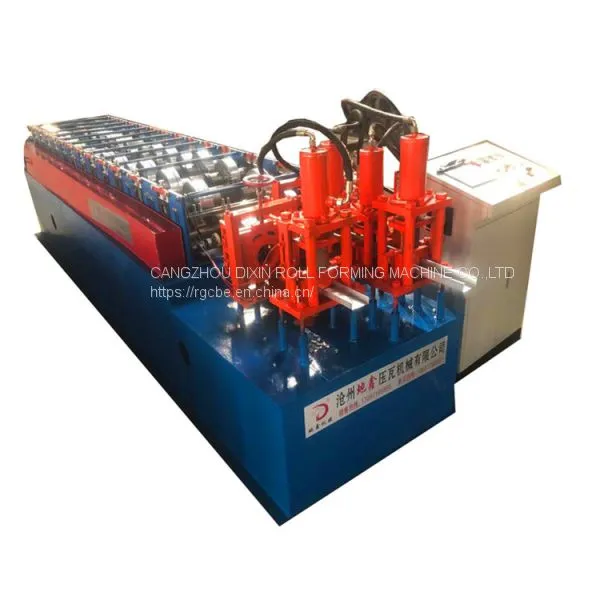

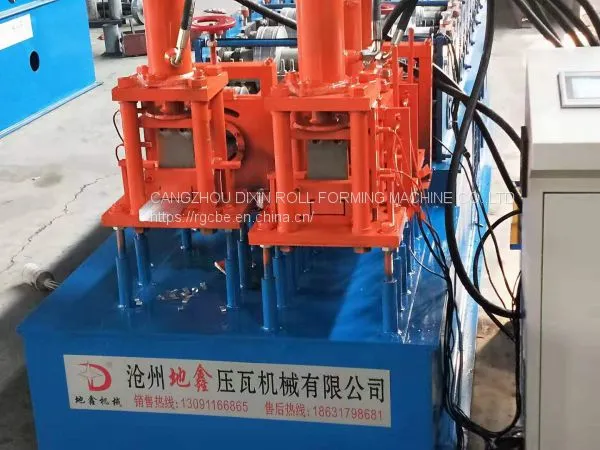

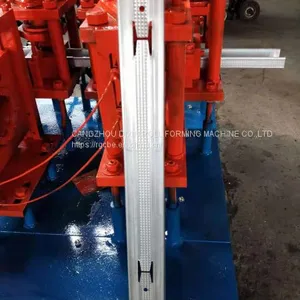

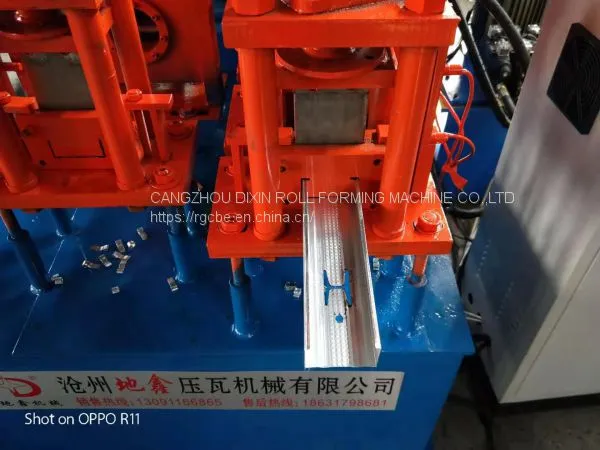

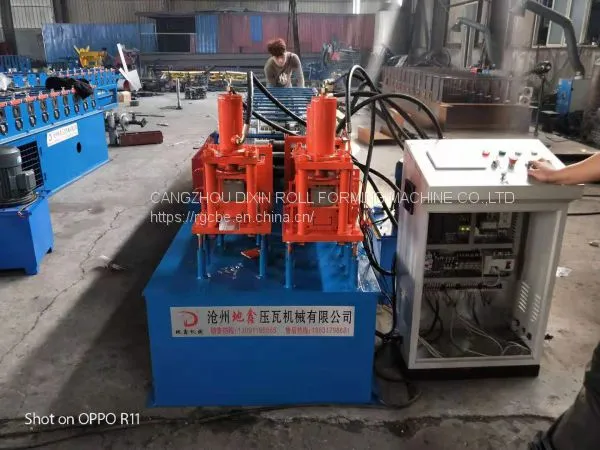

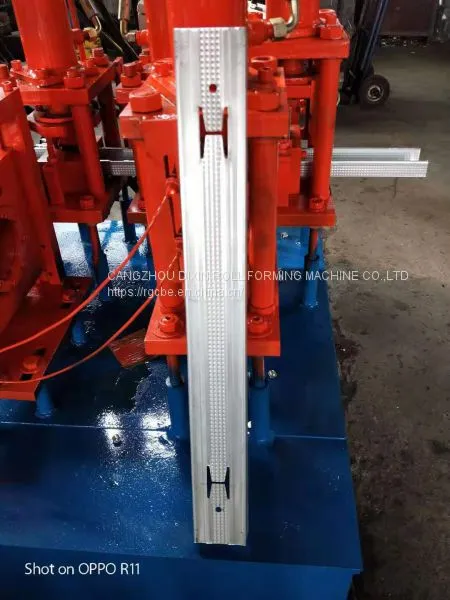

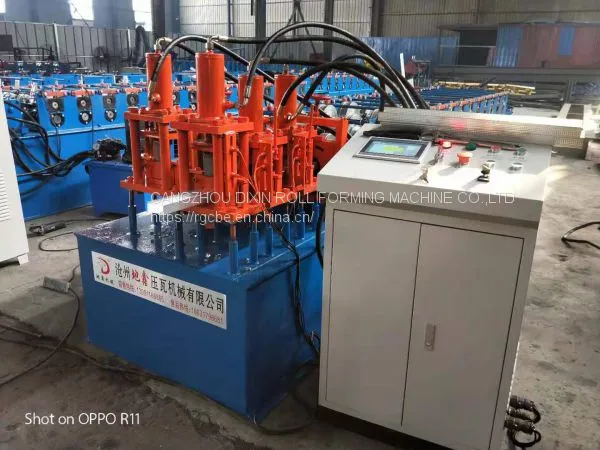

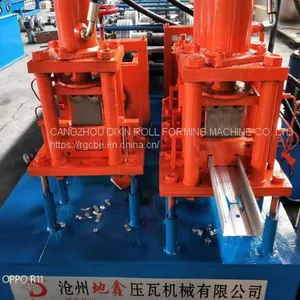

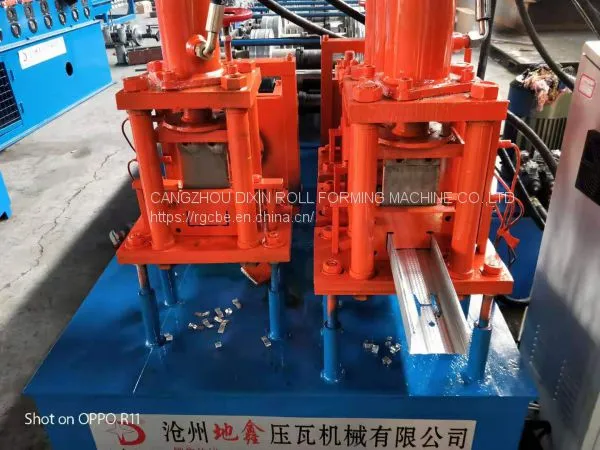

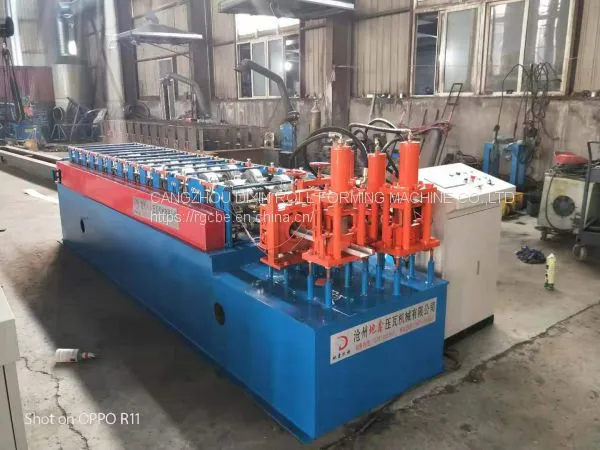

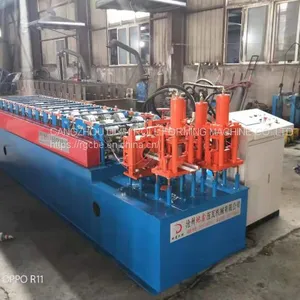

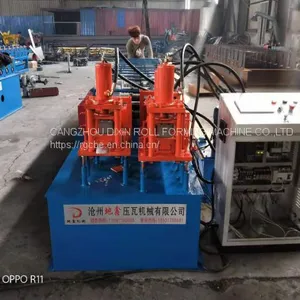

me machine pictures for your reference.
3.What's the parameters of Light Steel Keel Roller Former Making Machine ?
Specifications of the equipment
No | ||
1 | Dimensions (L*W*H) | 5500*1400*1500mm |
2 | Total power | Motor power-5.5kw Hydraulic power-4kw |
3 | Rows of rollers | 13rows |
4 | Productivity | 10-12m/min |
5 | Diameter of shaft | 65mm |
6 | Voltage | 380V, can be designed as your need. |
7 | Cutting blade material | Cr12 with quenching treatment |
8 | Rollers material | 45# steel plated with chrome |
9 | Weight | 3000kg |
PS: the above are for reference; customized design is provided.
Specification of the raw material
No | ||
1 | Suitable material | band steel, zinc plate |
2 | Width of the raw material/ feeding width | customzied |
3 | cover width/ effective width | customzized |
4 | Thickness | 0.2-1.0mm |
Packing and shipping
Usually the Galvanized Drywall Used Omega Profile Light Gauge Steel Framing Cold Roll Forming Machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
We will offer technical support for all the roll forming machines the whole life. 2 years free spare parts replacement and maintaince. Our international technicians can be reach your workshop at the first time if your machines has problem.
customer inspection
Many customers wait until their machines are finished then come to our factory To check their machines.When they are very satisfied.They will order the machine again,because We hope to establish long-term business relationship with our customers.Therefore, we have always attached great importance to the quality of machinery and good after-sales service.
Our company has always been adhering to the principle of integrity first, quality first, over the years, we have always put quality and reputation in the first place, every machine, our technical staff choose the best quality raw materials, because good raw materials can produce high-quality machines,And our company has passed the quality certification and testing,We believe that your choice is correct, because our company will never let our customers down.
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspectthe machine well and before delivery. Of course your payment terms are acceptable.After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after -sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across theworld.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand com-ponents.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of anymachine.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beiing airport, By high speed train From Beiing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Welcome to our factory ,Any questions about our machine please feel free contact me .
.
