Home > Products > Miniature Load Cell > GML660 Compression Testing Miniature Load Cells for Force Measurement

GML660 Compression Testing Miniature Load Cells for Force Measurement

Name: GML660 Compression Testing Miniature Load Cells for Force Measurement
Brand: GALOCE
Availability: InStock

FOB Price

USD $94.7 - $94.7 / Piece

2 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Xi'an or any port of China
Payment TermsT/T L/C Credit Card PayPal Cash
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GALOCE	Place of Origin	China
Model Number	GML660	Usage	Pressure Sensor
Theory	Resistance Sensor	Output	Analog Sensor

Product Description

GML660 Compression Testing Miniature Load Cells for Force Measurement

Product Description

What features of GML658 miniature load cell ?

1. Stainless Steel;

2. Low profile, compact and strong structure;

3. High-frequency dynamic response, stress area is large;

4. High temperature performance can be customized for injection molding, extrusion and other manufacturing processes;

5. Mainly used in automobile parts assembly, automated assembly, 3C product testing, etc.

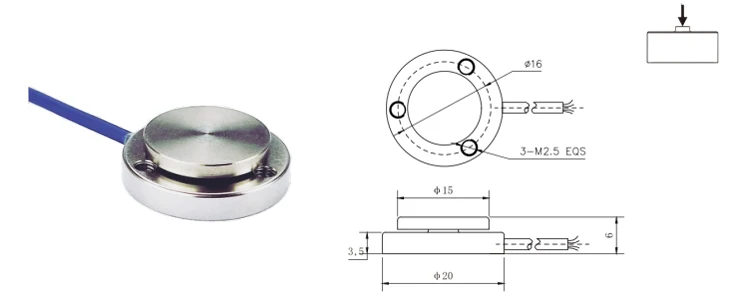

Dimension of GML658 miniature load cell ?

What specifications of GML658 miniature load cell ?

Specifications
Rated Capacity	100, 200, 300, 500N
Comprehensive error	≤±0.5%
Rated output	1.0±20%mV/V
Zero balance	±0.05%F.S
Non-linearity	0.5%
Creep	±0.5%F.S/30min
Input resistance	800~1100Ω
Output resistance	800~1100Ω
Insulation resistance	≥5000MΩ/100VDC
Temp. effect on span	±0.05%F.S/10℃
Temp. effect on zero	±0.05%F.S/10℃
Compensated temp range	-10~+60℃
Operating temp Range	-20~+80℃
Excitation voltage	5~12V
Safe overload	150%F.S
Ultimate overload	200%F.S
Defend grade	IP66

Application

Our Services

Service standards

we are committed to provide a high quality and responsive service to all clients

The fastest reply

Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manger within 24 hours. If our trade manger if off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance

Good quality is assured by advanced manufacturing technology. All products are through strict test by our professional QC team before shipping.

Door to door service

We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3-5working days to reach from our side to your side, which is very convenient for your businese.
