GWD700 Wireless Tension Shackle Load Cell 50Ton
- Xi'an or any port of China
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
-
GML623A Electronic Half Bridge Mini Weighing Sensor Loadcell
-
GML616 GALOCE Best Selling Micro Sensor for Jewelry Scale 750g With High Quality
-
GML698 Micro Mini Weight Sensor 50kg 100kg
-
GML692 High Accuracy Super Micro Structure Half Bridge Hand Scale Load Cell 50kg
-
GPB147 Platform Scale Single Point Load Cell 300kg 500kg 750kg
-
GPB132 1kg 3kg 5kg Small Scale Parallel Beam Load Cell
Product Details
| Brand Name | GALOCE | Place of Origin | China | |
| Model Number | GWD700 | Power | Other, / | |
| Usage | Other, / |
Product Description
GWD700 Wireless Tension Shackle Load Cell 50Ton
Features:
1. Strong strucyure,use the novel integrated sensor design,The ultimate load reaches 300%F.S.
2. Professional waterproof design,reached IP66 degree.
3. The product software has two self input load control points . It is used for safety alarm and product weight control. It is the exclusive design of our company.
4. Accuracy:0.5% for 1-50t,1% for above 50t capacity.
5. All functions and units are clearly displayed on the LCD with white backlight.
6. Low power design , To ensures 1 section 18650 lithium battery ia fully charged, the battery uninterrupted working time is more than 100 hours.
7. Provide international units, for general application: kg (kg), Ton(T), Pounds (LB), Newton (N), kn (kN)
8. Setup and calibration are completed by wireless dynamometer 280D, which is convenient for use and easy to manage
9. The wireless handheld dynamometer provides a variety of functions: "Zero", "Tare weight" "Peak holding", "Cumulative", "Cumulative query", "Cumulative cleanup", "Unit switch", "Voltage query", "Shutdown".

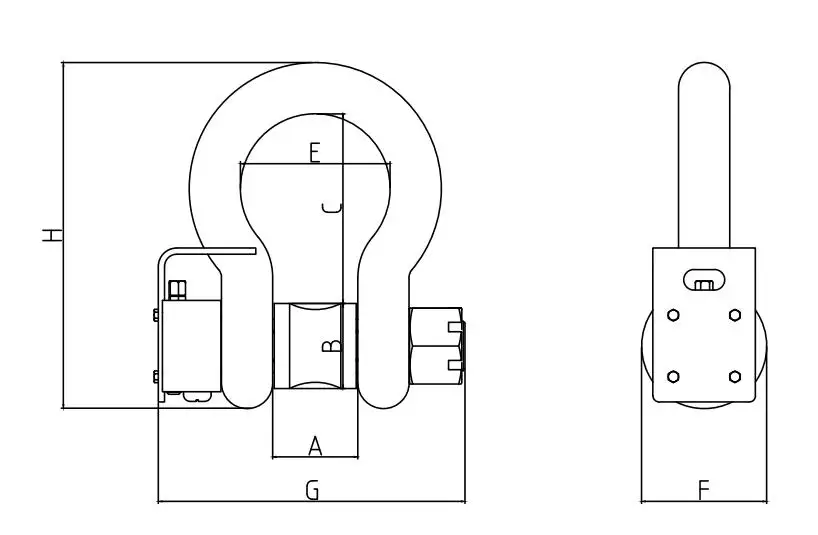

Dimension:
Specifications:
Model | Cap (kg) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | G (mm) | H (mm) | N.W (kg) |
GWD700-20 | 20000 | 73 | 73 | 167 | 127 | 106 | 277 | 301 | 16.8 |
GWD700-30 | 30000 | 83 | 83 | 184 | 146 | 122 | 299 | 337 | 22.2 |
GWD700-50 | 50000 | 105 | 97 | 253 | 184 | 145 | 350 | 440 | 41.2 |
GWD700-100 | 100000 | 133 | 128 | 355 | 229 | 203 | 428 | 613 | 104.0 |
GWD700-200 | 200000 | 184 | 174 | 374 | 280 | 270 | 535 | 726 | 207.4 |
GWD700-500 | 500000 | 240 | 270 | 515 | 360 | 390 | 700 | 1030 | 602.2 |
Remarks:There’s a slightly different of the size and weight because of the different manufacturers of shackles.The standard is based on actual products.
Main technical data:
Standard | GB/T11883-2002<Electronic dynamometer> |
The dynamometer / indicator display | 25mm (1’’) 5digits LCD with backlight |
Ingress Protection | IP66 |
Initial zero range | 0~20%F.S |
Manual Zero Range | 4%F.S |
Tare Range | 100%F.S |
Stable Time | ≤10 Seconds |
Overload Indication | 100%F.S+9e |
Safety Load | 125%F.S |
Ultimate Load | 300%F.S |
Battery Life | ≥90Hours |
Dynamomete Battery | One 18650 lithium battery |
Indicator Battery | One 18650 lithium battery |
Operating temp. | -10℃~+40℃(14°F ~ 104°F) |
Operating humidity | 20℃,≤85% |
Wireless distance | 80 meters(Open field) |
Wireless Frequency | 433MHz |
