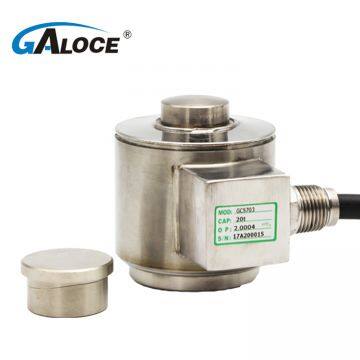

Help CenterGCS703 Hopper Scale Canister Compression Load Cell Weight Sensor 50Ton
Related Products
-
GCS702 Weight Bridge Chinese Load Cell 50 TonUS$ 100 - 120MOQ: 1 Piece -
GCS705 20T Vehicle Scales Column Chinese Load CellUS$ 150 - 169MOQ: 1 Piece
-
GTS200 GALOCE Dynamic Force Sensor Rotary Torque Transducer 5-100NmUS$ 1050 - 1050MOQ: 1 Piece
-
GSI309-1 Digital Torque Power Meter for Speed MeasurementUS$ 428 - 450MOQ: 1 Piece
-
GTS300 Double Flange Static Force Torque SensorUS$ 190 - 210MOQ: 1 Piece
Features:
Column type, hermetically sealed structure, IP68 compression, fast response, strong anti-overload, upper ball head load bearing
Simple install, easy to use, suitable for electronic truck scale, dynamic railroad scale and big capacity hopper scale, etc.
Specifications:
Rated Output(mV/V) | 1.75±0.005 | Input Resistance(Ω) | 450±5 |
Nonlinearity | ±0.02%FS | Output Resistance(Ω) | 480±3 |
Hysteresis | ±0.02%FS | Insulation Resistance | ≥5000MΩ |
Repeatability | ±0.01%FS | Excitation Voltage | 10V(DC/AC) |
Creep(30minutes) | ±0.02%FS | Compensated Temperature Range | -10℃~+50℃ |
Zero Balance | ±1.00%FS | Operating Temperature Range | -20℃~+60℃ |
Temperature Effect on Zero | ±0.02%FS/10℃ | Safe Overload | 120%FS |
Temperature Effect on Output | ±0.02%FS/10℃ | Cable | Ø6×9(12)m |

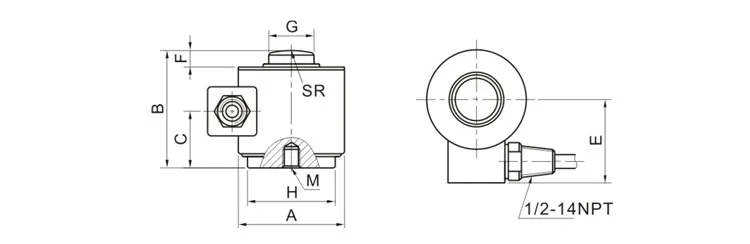

Dimension:
Range | Size (mm) | M | ||||||||||
T | Klb | A | B | C | E | F | G | H | SR | Inch | mm | DP |
5-20 | 10-50 | 75.0 | 83.0 | 32.5 | 64.0 | 10.0 | 31.8 | 62.0 | 125.0 | 1/2-20 | M12x1.75 | 13.0 |
45 | 100 | 100.6 | 127.0 | 54.6 | 86.0 | 14.0 | 59.0 | 88.6 | 152.0 | 3/4-16 | M20x1.5 | 18.0 |
90-180 | 200-400 | 150.6 | 184.5 | 92.0 | 108.0 | 26.0 | 80.0 | 134.4 | 400.0 | 3/4-16 | M20x1.5 | 25.0 |
225 | 500 | 164.0 | 229.0 | 92.0 | 108.0 | 26.0 | 93.7 | 148.0 | 400.0 | 3/4-16 | M20x1.5 | 25.0 |
450 | 1000 | 177.0 | 304.8 | 117.0 | 115.0 | 26.0 | 139.7 | 165.1 | 1143.0 | 3/4-16 | M20x1.5 | 32.0 |
Details:
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
