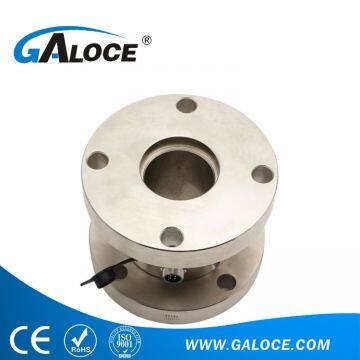

Help CenterGTS300 Double Flange Static Force Torque Sensor
Related Products
-
GTS200 GALOCE Dynamic Force Sensor Rotary Torque Transducer 5-100NmUS$ 1050 - 1050MOQ: 1 Piece -
GSI309-1 Digital Torque Power Meter for Speed MeasurementUS$ 428 - 450MOQ: 1 Piece
-
GBS800 Weighbridge Truck Scales Weighing Sensor 30tUS$ 75 - 125MOQ: 1 Piece
-
GWM400 100t Stainless Steel Industrial Compression Hopper Scale Weighing ModuleUS$ 115 - 350MOQ: 4 Pieces
-
GWM200 5T Weighing Module Load Cell for Hopper ScaleUS$ 95 - 205MOQ: 4 Pieces
Torque range: Standard of 1000~5000(N.m)
Application: Test of torque and power in many different fields
♦ Double flange connection, easy installation;
♦ Applicable to measure and control of the static, non-continuous rotation torque force value ;
What application of double flange static force torque sensor ?
It is mainly used for testing system of testing machine and static torque test. Generally for testing the slow motion of torque, such as: Test manual torque wrench, transmission static load torque, etc., It is the basis of inspection and assembly quality in quality inspection department .

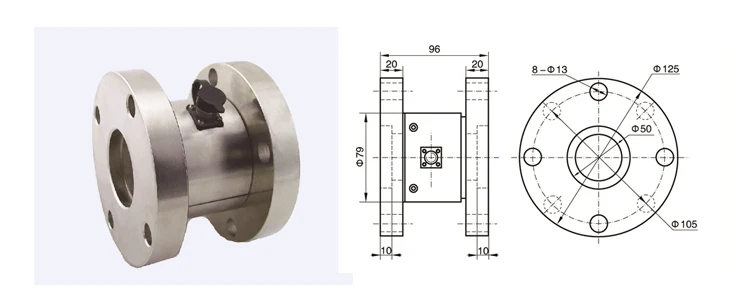

What dimensions of double flange static force torque sensor ?
Parameters: | ||
Torque range: 1000~5000(N.m) | Output resistance: 350±3Ω or 700±5Ω | |
Comprehensive error: 0.1~0.5%F.S | Insulation resistance: >5000MΩ | |
Rated output:1.0~2.0mV/V | Safe overload: 120%F.S | |
Creep: ±0.05%F.S/30min | Excitation voltage: 10VDC | |
Zero output: ±2%F.S | Material: alloy steel | |
Temp. effect on zero: ±0.05%F.S/10℃ | Wiring connection: Input +: red | |
Temp. effext on span: ±0.05%F.S/10℃ | Input-: black | |
Use temp. Range: -20℃~+65℃ | Output +: green | |
Input resistance: 380±10Ω or 750±15Ω | Output-: white | |
