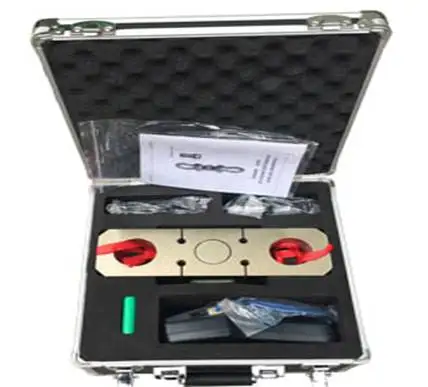

Help CenterGWD600 Digital Crane Hanging Scales Weight Sensor 30 Ton
Related Products
-
GWD700A Heavy Duty D Ring Wireless Shackle Bolts Load CellUS$ 680 - 8560MOQ: 1000 Pieces -
GWD700 Wireless Tension Shackle Load Cell 50TonUS$ 800 - 7160MOQ: 1000 Pieces
-
GWD200 GALOCE Wireless Dynamomter With Handheld Indicator 10tonUS$ 480 - 4500MOQ: 1000 Pieces
-
GWD200 GALOCE LCD Overhead Wireless Dynamometer Price 10ton 100tonUS$ 480 - 4500MOQ: 1000 Pieces
-
GWD200 High Quality Wireless Portable Tension Dynamometer CalibrationUS$ 480 - 4500MOQ: 1000 Pieces
Features:
1.5 digits LCD display with backlight
2.Cast alloy steel housing for maximum protection
3.waterproof design, gravity compensation
Dimension:
Specifications:
| Accuracy standard | According to OIML class III |
| Indicator display | 25mm(1”) 5digits LCD |
| Waterproof class | IP66 |
| Zero range | 4% F.S. |
| Tare range | 100% F.S. |
| Stable time | ≤5 seconds |
| Overload indication | 100% F.S. + 9e |
| Max. safety load | 125% F.S. |
| Ultimate load | 400% F.S. |
| Tension link charger | DC4.2V/1000mA |
| Nominal operating temp. | - 10℃ ~ + 40℃ |
| Wireless distance | 100M without obstacle |
| Wireless frequency | 433MHz |
Size Chart:
| MODEL | Cap.(t) | A | B | C | D | E | F | G | 2-φ | N.W(KG) |
| GWD600-5 | 5 | 190 | 110 | 60 | 137 | 65 | 30 | 70 | 27 | 2.6 |
| GWD600-10 | 10 | 245 | 110 | 70 | 168 | 65 | 36 | 76 | 41 | 4.3 |
| GWD600-20 | 20 | 312 | 110 | 94 | 206 | 65 | 45 | 85 | 54 | 8.5 |
| GWD600-30 | 30 | 370 | 110 | 114 | 246 | 65 | 50 | 90 | 60 | 14 |
| GWD600-50 | 50 | 460 | 110 | 140 | 309 | 65 | 60 | 100 | 73 | 25 |
| GWD600-100 | 100 | 580 | 110 | 180 | 389 | 65 | 80 | 120 | 99 | 53 |
| GWD600-150 | 150 | 690 | 110 | 220 | 456 | 65 | 90 | 130 | 112 | 89 |
| GWD600-200 | 200 | 800 | 110 | 250 | 534 | 65 | 100 | 140 | 134 | 128 |
Related Details:
Wireless communication and display | Wireless indicator, 5 digits LCD display with backlight, Many functions on handhold indicator 580D Both RS232 serial port and USB port,solve most laptops without serial port problem. with the everight company’s PC host computer software,not only display weigh value and stable information on the PC ,can also enter company’s name,complete storage ,print query and other functions.Such as tare, zero, peak, filter setting, gravity regulation.calibration is easy through wireless indicator |
Two set point | Two user programmable Set-Point can be used for safety and warning applications or for limit weighing |
User-friendly design | Cast alloy steel housing for maximum protection; water proof design, gravity compensation; safety factor up to 4 times capacity; battery operated with low battery indication; automatic turn off , power-saving function |
Details:
Process Flow:
