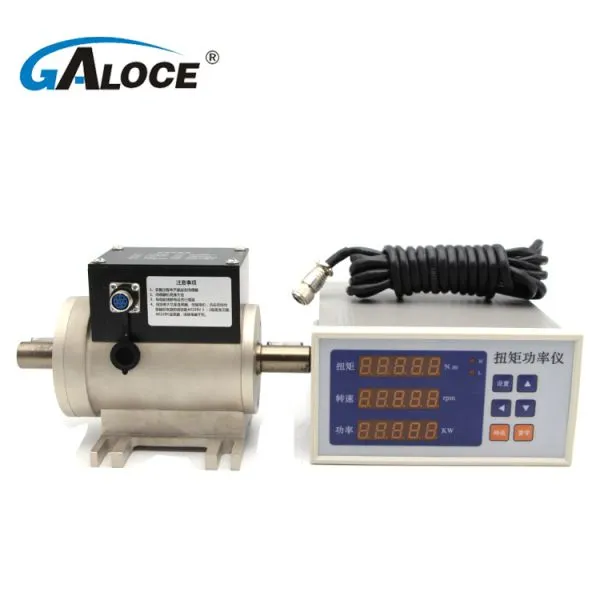

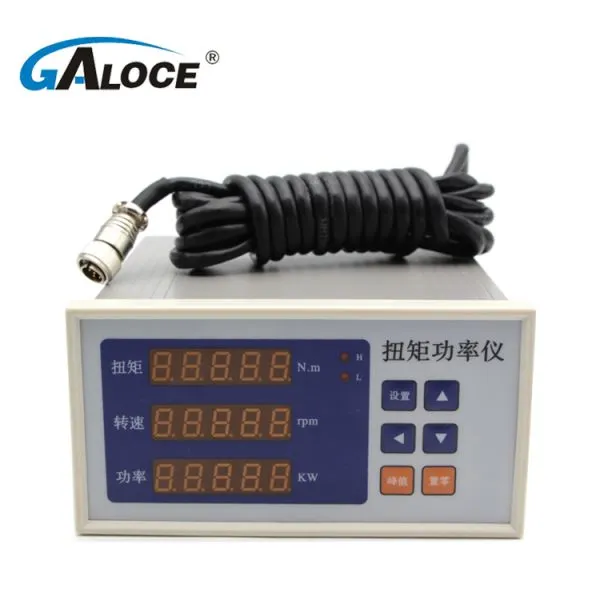

GSI309-1 Digital Torque Power Meter for Speed Measurement

The Dynamic Torque Tester is an intelligent measuring instrument designed and manufactured to test and detect various dynamic torques. High-precision test equipment for detecting torque, speed and power of various motors and reducers. Widely used in a variety of motors, machinery manufacturing, scientific research institutions and other industries.

Features:

1. The square wave amplitude of the signal output waveform can be selected as 5V / 12V.

2. Boot 5 minutes to enter the working state, no need to preheat process.

3. High detection accuracy, good stability, strong anti-interference.

4. Continuously measure the positive and negative torque without repeated zero adjustment.

5. Small size, light weight, easy to install.

6. The sensor can be used independently of the secondary instrument, as long as the pin number is ±15V (200mA).

7. It can output equal square wave or pulse wave frequency signal whose impedance is proportional to the torque.

Specifications:

  Size: Panel mounted 160x80x170mm;

  Power supply: 220VAC

Display range:

  Torque measurement: -99999~99999N.m, the absolute value is displayed: 0~99999N.m, the decimal point position can be set

  Speed display: 0~99999, the decimal point position can be set

  Power display: 0 ~ 99999, automatic adjustment of the decimal point

  Pulse input signal: all kinds of output sensor signal, such as NPN, PNP, OC, proximity switches, rotary encoders

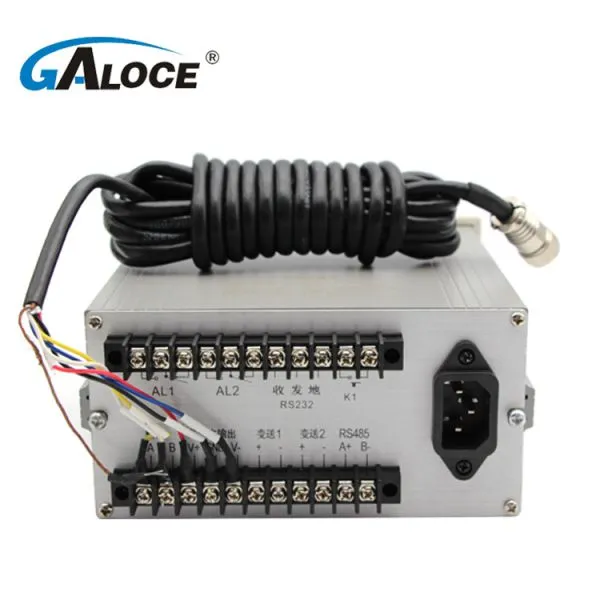

Transmission output

  Optical isolation

  2 way 4mA~20mA DC current output. Output resolution: 1/4000; error less than ±0.2% F.S, load  capacity: less than or equal to 600Ω

External power supply: Either ±15VDC or 24VDC

  Measurement frequency: Speed pulse input 1Hz~20KHz

  Torque pulse input 5KHz ~ 15KHz, can be extended to 1HZ ~ 60KHZ

  refresh frequency measurement: 30 times per second, suitable for fast response occasions
