Product Features:
GWD300 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, GWD300 wireless dynamometer is the latest design, compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case,easy to carry, suitable for protected outdoor use, calibration is easier with 580 indicator.

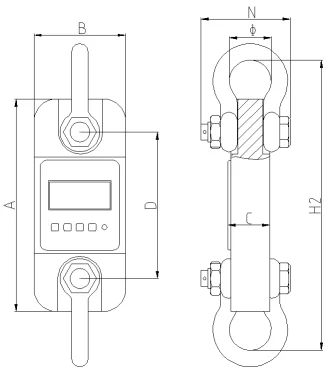

Dimension:
Spcifications:
| Body protection | Aluminum and alloy steel capacities are powder coated |
| Accuracy | 0.05% for 1-50t, 0.1% for above 50t capacity |
| Shackles | High tension industrial standard G2130 anchor shackle bows, galvanized finish. |
| Gravity regulation | The acceleration of gravity can be regulated through indicator according to different places value |
| Functions | wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password) |
| Set-Point | Two user programmable Set-Point can be used for safety and warning applications or for limit weighing |

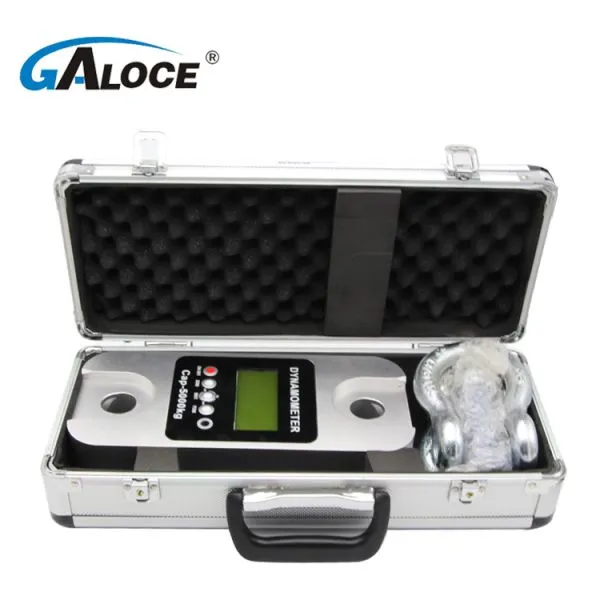

| Package | Packed with carry case, easy to bring |
| Indicator key | 4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change” |
Size Chart:
| MODEL | CAP(t) | Div(kg) | A | B | C | D | φ | H | Material |
| GWD300-1t | 1 | 0.5 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| GWD300-2t | 2 | 1 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| GWD300-3t | 3 | 1 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| GWD300-5t | 5 | 2 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| GWD300-10t | 10 | 5 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| GWD300-20t | 20 | 10 | 375 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
| GWD300-30t | 30 | 10 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
| GWD300-50t | 50 | 20 | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
| GWD300-100t | 100 | 50 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
| GWD300-200t | 200 | 100 | 720 | 265 | 183 | 440 | 280 | 1362 | Alloy Steel |
Weight:
| Model | GWD300-1t | GWD300-2t | GWD300-3t | GWD300-5t | GWD300-10t |
| Unit Weight(kg) | 1.6 | 2.1 | 2.1 | 2.7 | 10.4 |
| Weight with shackles(kg) | 3.1 | 4.6 | 4.6 | 6.3 | 24.8 |
| Model | GWD300-20t | GWD300-30t | GWD300-50t | GWD300-100t | GWD300-200t |
| Unit Weight(kg) | 17.8 | 25 | 39 | 81 | 210 |
| Weight with shackles(kg) | 48.6 | 73 | 128 | 321 | 776 |

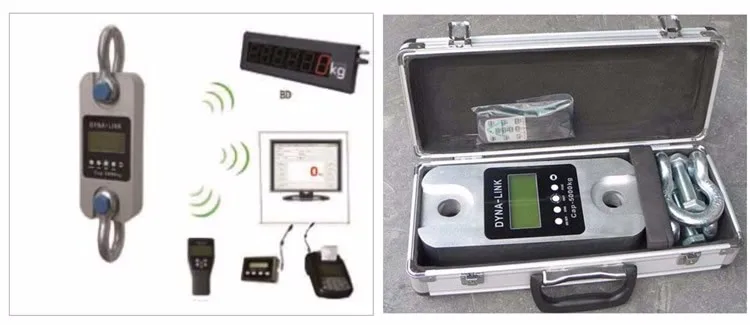

Details:

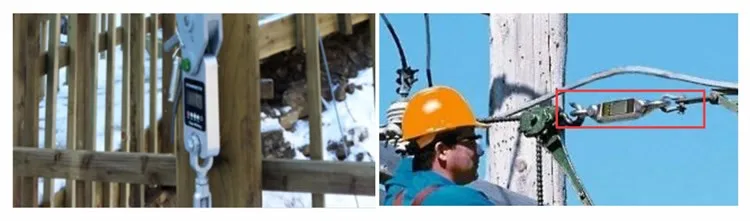

Application:
Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
