Help CenterGML623A Electronic Half Bridge Mini Weighing Sensor Loadcell
Related Products
-
GML616 GALOCE Best Selling Micro Sensor for Jewelry Scale 750g With High QualityUS$ 1.9 - 5.9MOQ: 10 Pieces -
GML698 Micro Mini Weight Sensor 50kg 100kgUS$ 2.5 - 5.5MOQ: 10 Pieces
-
GML692 High Accuracy Super Micro Structure Half Bridge Hand Scale Load Cell 50kgUS$ 2.5 - 3.5MOQ: 10 Pieces
-
GML692 Strain Gauge Body Scale Mini Load Cell 50kgUS$ 3.5 - 10.5MOQ: 10 Pieces
-
GML623A Kitchen Scales Micro Load Cell 3kgUS$ 2.5 - 3.8MOQ: 10 Pieces
| | |
| | |
Features:
1. Made of manganese steel
2. Suitable for electronic balances, kitchen scales and other small weighing devices.
Specifications:
Specification | |
Range (KG): 3 | Temp. effect on zero (%F.S/10℃): ±0.1 |
Comprehensive error (%F.S): ±0.15 | Nonlinearity error (%F.S):±0.1 |
Rated output (mV/ V): 1.0±0.15 | Repeatability error (%F.S):±0.05 |
Creep (%F.S/3min): ±0.15 | Hysteresis error (%F.S):±0.05 |
Zero balance (%F.S): ±0.5 | Operation temp. range (℃): -10~+40 |
Input resistance (Ω):500±10 | Excitation voltage (V): 5-10(DC) |
Output resistance (Ω): 500±10 | Ultimate overload (%F.S): 150 |
Insulation resistance (MΩ): ≥2000 | Dimension (mm): 26×26×1 |
Temp. effect on span (%F.S/10℃): ±0.1 | Position error (%F.S): 0.15 |

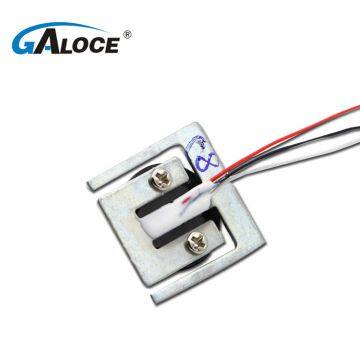

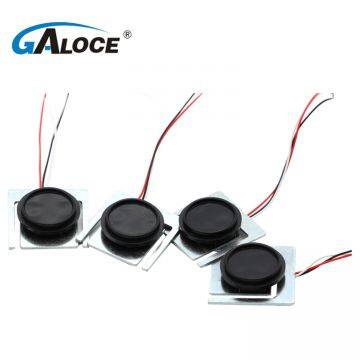

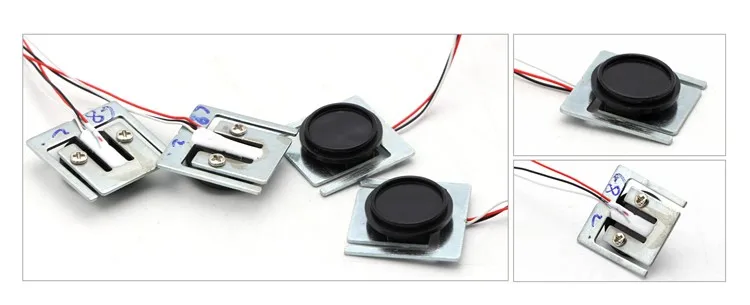

Product show:

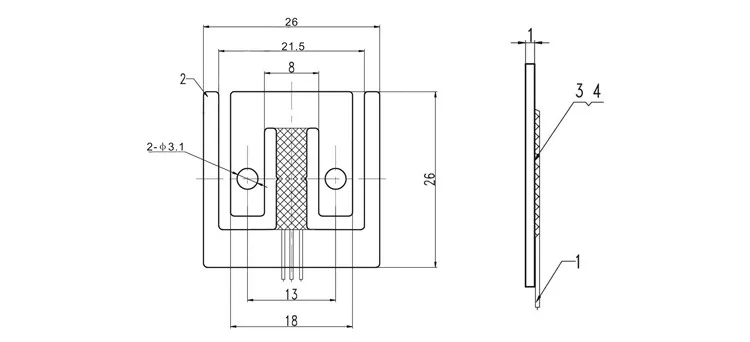

Dimension:

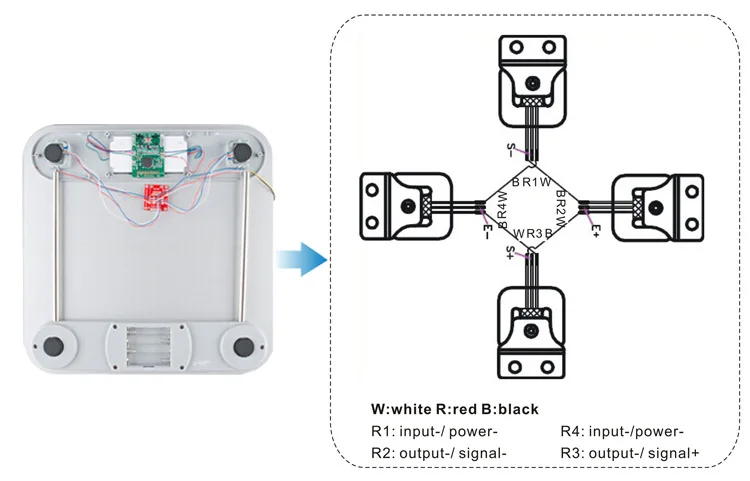

Connection Method
Application
Process flowchart
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
YOUR EARLY ENQUIRE WOULD BE HIGHLY APPRECIATED
