Compression Cheap Load Cell Sensor Price
US$ 25 - 103
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
CLBU
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
5 days
Related Products
-
Shear Beam Parallel Planar Beam 50kg 250kg Waterproof Weight Sensor Load CellUS$ 3 - 35MOQ: 1 Piece -
Bending Beam Load Cell 100kg 150kg 200kgUS$ 15 - 55MOQ: 1 Piece
-
Low Cost Cantilever Beam 60 Ton Load Cell 50kg 300kg 500kgUS$ 15 - 55MOQ: 1 Piece
-
4 20ma Rtd PT100 Temperature Probe TransmitterUS$ 50 - 175MOQ: 1 Piece
-
Cheap Optical Steering Static Rotary Torque SensorUS$ 202 - 600MOQ: 1 Piece
Brand Name
Shelok
Place of Origin
China
Model Number
CLBU
Description of compression cheap load cell sensor price
The load cell is made of hub-and-spoke elastomer structure and shearing stress principle.Suitable for testing various load forces.
Specification of compression cheap load cell sensor price
| Sensitivity | 1.5±0.05mV/V | Operating temperature | -20~80℃ |
| Nonlinearity | ±0.1%F.S | Input resistance | 400±20Ω |
| Hysteresis | ±0.1%F.S | Output resistance | 350±5Ω |
| Repeatability | ±0.05%F.S | Safe overload | 150%F.S |
| Creep | ±0.1%F.S/30min | Zero output | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10-15V |
| Zero temperature coefficient | ±0.1%F.S/10℃ | Sensitivity temperature coefficient | ±0.05%F.S/10℃ |

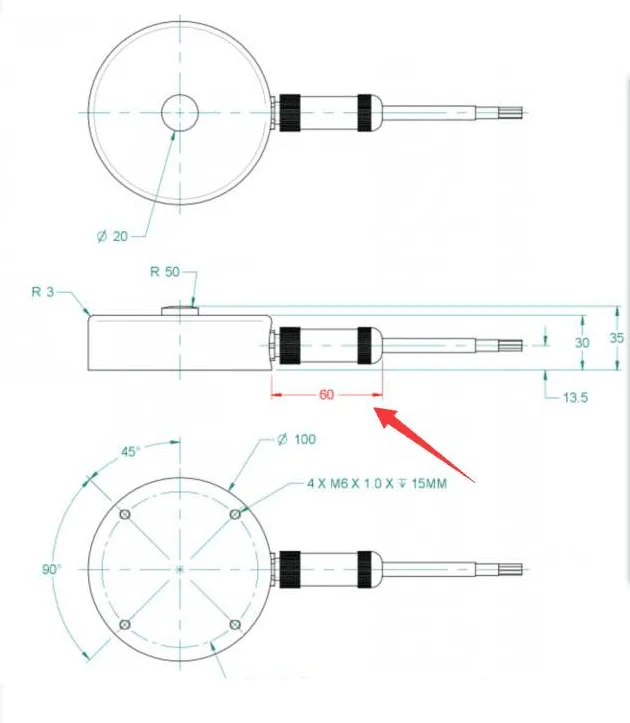

Drawings of compression cheap load cell sensor price
Applications of compression cheap load cell sensor price
Widely used in a variety of electronic scales, cement silo, powder mixer and industrial automation measurement and control system.
