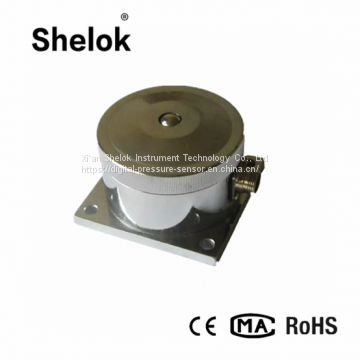

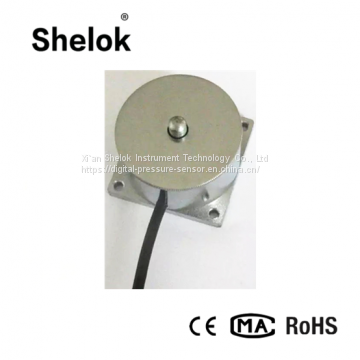

Sartorius Compression Pillow Block 10 Ton 20 Ton 30 Ton Load Cell Weighing Scale
US$ 10 - 70
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
CHBU
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
15 days
Related Products
-
Parallel Planar Beam Cantilever 50kg 100kg 150kg 250kg 300kg Load CellUS$ 10 - 70MOQ: 1 Piece -
Shear Beam Parallel Planar Beam 50kg 250kg Waterproof Weight Sensor/load Cell s 500kgUS$ 10 - 70MOQ: 1 Piece
-
Chinese Cheap Half Bridge Weighbridge 5t 10t 15t 20t Load CellUS$ 10 - 70MOQ: 1 Piece
-
Weigh Bridge Type Double Ended Shear Beam Load Cell 10t 15t 20t 25t 30t 40tUS$ 10 - 70MOQ: 1 Piece
-
High Precision Chinese Bending Beam Load Cell 100kg 150kg 200kgUS$ 10 - 70MOQ: 1 Piece
Brand Name
Shelok
Place of Origin
China
Model Number
CHBU
Description of sartorius compression 10 ton 20 ton 30 ton load cell weighing scale
The load cell is made of hub-and-spoke elastomer structure and shearing stress principle.Suitable for testing various load forces.
Specification of sartorius compression 10 ton 20 ton 30 ton load cell weighing scale
| Sensitivity | 2.0±0.05mV/V | Operating temperature | -20~80℃ |
| Nonlinearity | ±0.03%F.S | Input resistance | 750±20Ω |
| Hysteresis | ±0.03%F.S | Output resistance | 700±5Ω |
| Repeatability | ±0.03%F.S | Safe overload | 150%F.S |
| Creep | ±0.03%F.S/30min | Zero output | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10-15V |
| Zero temperature coefficient | ±0.03%F.S/10℃ | Sensitivity temperature coefficient | ±0.03%F.S/10℃ |

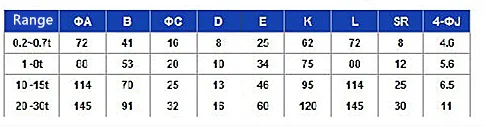

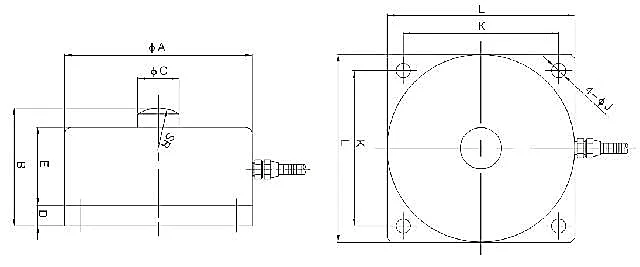

Drawings of sartorius compression 10 ton 20 ton 30 ton load cell weighing
CHBU
Applications of sartorius compression 10 ton 20 ton 30 ton load cell weighing scale
Widely used in a variety of electronic scales, cement silo, powder mixer and industrial automation measurement and control system.
