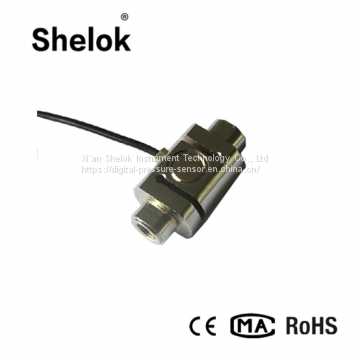

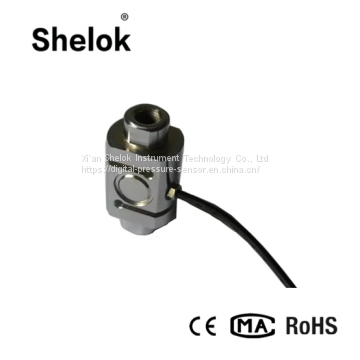

Help CenterS-type Column Tension 0.7t 1t 5t 10t Load Cell Sensor
Related Products
-
20t 30t 50t 100t Floor Scale Tension and Compression Load CellUS$ 6 - 70MOQ: 1 Piece -
Chinese Cylinder Tension Compression Load Cell 20t 30t 50t 100tUS$ 6 - 70MOQ: 1 Piece
-
Stainless Steel Hanging Push Pull s Load Cell ScaleUS$ 6 - 70MOQ: 1 Piece
-
750kg c3 s Type 100kg Load Cell 20kg 30kg 40kg 1t 1.2t 5t 10tUS$ 6 - 70MOQ: 1 Piece
-
Alloy Steel Weighing Scale 500n 1000n S-type Load CellUS$ 6 - 70MOQ: 1 Piece
Description of s-type column tension 0.7t 1t 5t 10t load cell sensor
The load cell adopts a column type S structure, which has the characteristics of high precision, good strength and good stability.
Specification of s-type column tension 0.7t 1t 5t 10t load cell sensor
Rated Load |
0.2-0.7t,1-5t,10t |
Repeatability |
±0.03%F.S |
Sensitivity |
2.0±0.05mv/v |
Safety overload |
150%F.S |
Nonlinear |
±0.05%F.S |
Hysteresis |
±0.05%F.S |
Creep |
±0.05%F.S/30min |
Working temperature |
-20~80℃ |
Zero output |
±1%F.S |
Supply voltage |
10-15VDC |
Zero temperature influence |
≤0.05%FS/10℃ |
Sensitivity temperature influence |
≤0.05%FS/10℃ |
Input resistance |
350±20Ω |
Output Resistance |
350±5Ω |
Material |
Alloy steel/stainless steel |
Insulation Resistance |
≥5000MΩ |

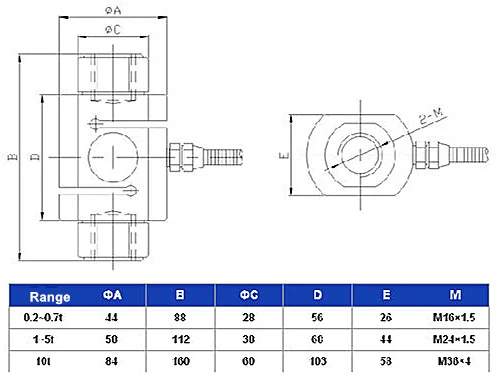

Drawings of s-type column tension 0.7t 1t 5t 10t load cell sensor
CLBSZ
Applications of s-type column tension 0.7t 1t 5t 10t load cell sensor
It is widely used in the measurement of tensile force of industrial automation process control such as crane scale and hopper scale.
