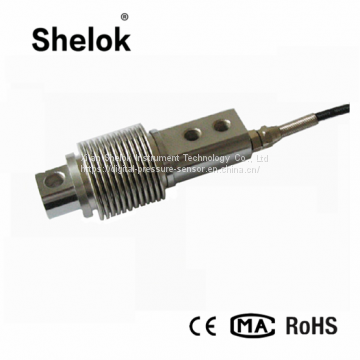

Description of bellows planar beam 20 30 50 100 200kg weighing scale load cell
The bellows type cantilever weight scale load sensor adopts the structure of parallel beam, the metal bellows is welded and sealed and filled with inert gas.
Features of bellows planar beam 20 30 50 100 200kg weighing scale load cell
Strong resistance to overload, fatigue and partial load.
Specification of bellows planar beam 20 30 50 100 200kg weighing scale load cell
Rated Load |
20-30-50-100-200kg |
Working temperature |
-20 ~ +70℃ |
Sensitivity |
2.0±0.005mv/v |
Safety overload |
150%F.S |
Total error |
±0.03%F.S |
Limit overload |
300%F.S |
Creep |
±0.03%F.S |
Reference excitation voltage |
9~12V(DC) |
Zero balance |
±1%F.S |
Maximum excitation voltage |
15V |
Zero point temperature effect |
±0.03%F.S/10℃ |
Ingress protection |
IP67 |
Effect of output temperature |
±0.03%F.S/10℃ |
Material |
Alloy steel/stainless steel |
Input resistance |
375±25Ω |
Cable |
2-3m |
Output Resistance |
350±5Ω |
Insulation Resistance |
≥5000MΩ |
Drawings of bellows planar beam 20 30 50 100 200kg weighing scale load cell
CBS-3
Applications of bellows planar beam 20 30 50 100 200kg weighing scale load cell
It can be widely used in electronic belt scale, hopper scale, platform scale and other special weighing equipment, all kinds of material testing machine and other force measuring devices.
