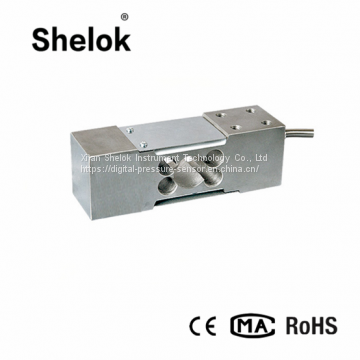

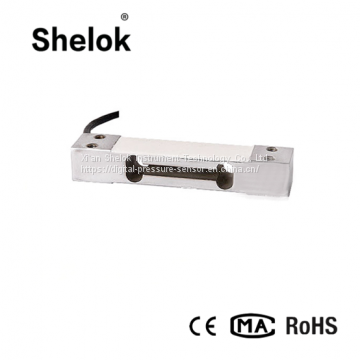

Description of shear beam parallel planar beam 50kg 250kg waterproof weight sensor/load cell s 500kg
The load sensor elastomer adopts a shearing or bending cantilever beam structure, one end is fixed, one end is stressed, the height is low, and the structural strength is high, and can be used for carrying and measuring various tensile or compressive forces.
Features of shear beam parallel planar beam 50kg 250kg waterproof weight sensor/load cell s 500kg
It has the characteristics of dustproof seal, wide measuring range, high precision, stable and reliable performance, convenient installation and use.
Specification of shear beam parallel planar beam 50kg 250kg waterproof weight sensor/load cell s 500kg
| Sensitivity | 2.0±0.05mV/V | Operating temperature | -20~80℃ |
| Nonlinearity | ±0.03%F.S | Input resistance | 350±20Ω |
| Hysteresis | ±0.03%F.S | Output resistance | 350±5Ω |
| Repeatability | ±0.02%F.S | Safe overload | 150%F.S |
| Creep | ±0.03%F.S/30min | Zero output | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10-15V |
| Zero temperature coefficient | ±0.03%F.S/10℃ | Sensitivity temperature coefficient | ±0.03%F.S/10℃ |

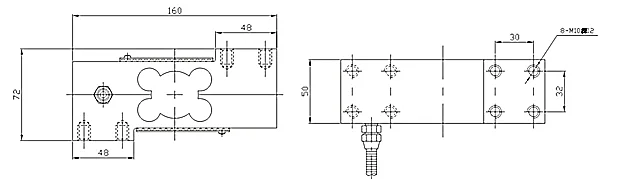

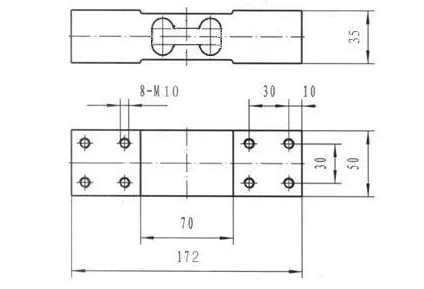

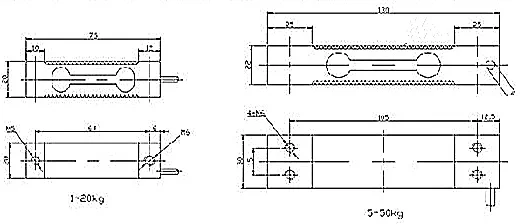

Drawings of shear beam parallel planar beam 50kg 250kg waterproof weight sensor/load cell s 500kg
CHBL
CHBP1
CBS-3
Applications of shear beam parallel planar beam 50kg 250kg waterproof weight sensor/load cell s 500kg
It is applicable to industrial automatic measurement and control systems for various force measurement and weighing such as electronic scales and weighing instruments.
