Description of 750kg c3 s type 100kg load cell 20kg 30kg 40kg 1t 1.2t 5t 10t

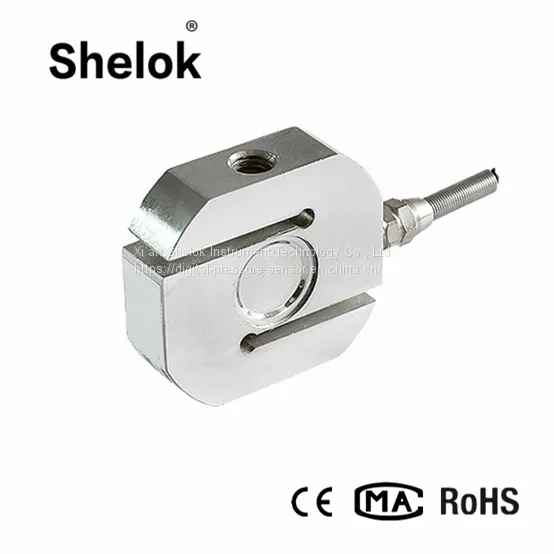

The load cell adopts S-beam structure, and both tension and pressure can be used. Can be used for automated control equipment, weighing detection equipment.
Features of 750kg c3 s type 100kg load cell 20kg 30kg 40kg 1t 1.2t 5t 10t
High measurement accuracy, good stability and good output symmetry.
Specification of 750kg c3 s type 100kg load cell 20kg 30kg 40kg 1t 1.2t 5t 10t
Rated Load |
20-150kg,200-500kg,500kg,700kg-1t,1.2-5t,7.5t,10t,200-300kg,700kg,800kg,1t,1.2t,1.5t |
||
Output Sensitivity |
2.0±0.004mv/v |
Safety overload |
150%F.S |
Accuracy |
C3 |
Limit overload |
300%F.S |
Creep |
≤0.016%F.S |
Temperature compensation |
9~12V(DC) |
Max verification scale value |
3000namx |
Min verification scale value |
Emax/10000Vmin |
Temperature sensitivity drift |
≤0.011%FS/10℃ |
Temperature zero drift |
≤0.015%FS/10℃ |
Working temperature |
-35~70℃ |
Material |
Alloy steel/stainless steel |
Input resistance |
375±25Ω |
Ingress protection |
IP67 |
Output Resistance |
350±5Ω |
Insulation Resistance |
≥5000MΩ |

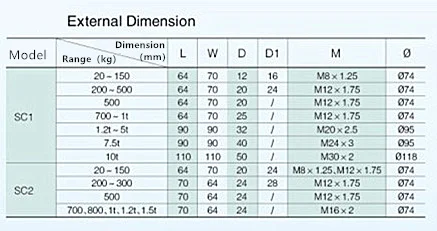

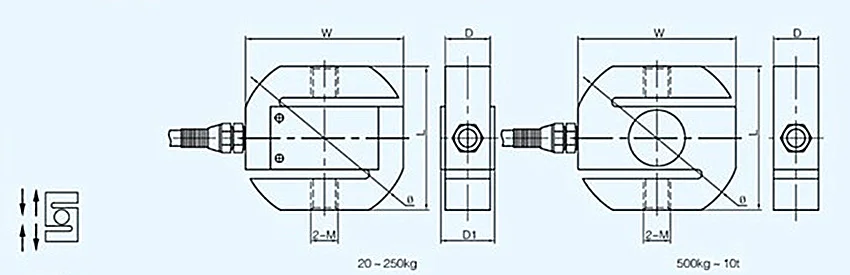

Drawings of 750kg c3 s type 100kg load cell 20kg 30kg 40kg 1t 1.2t 5t 10t
CLBSF2
Applications of 750kg c3 s type 100kg load cell 20kg 30kg 40kg 1t 1.2t 5t 10t
Widely used in belt scales, hopper scales, electromechanical combination scales, universal material testing machines, hook scales and various engineering devices.
