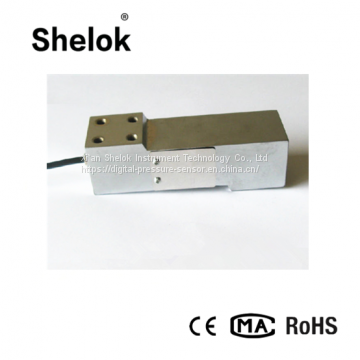

Bending Beam Load Cell 100kg 150kg 200kg
US$ 15 - 55
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
SLK- CHBX
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
15 days
Related Products
-
Low Cost Cantilever Beam 60 Ton Load Cell 50kg 300kg 500kgUS$ 15 - 55MOQ: 1 Piece -
4 20ma Rtd PT100 Temperature Probe TransmitterUS$ 50 - 175MOQ: 1 Piece
-
Cheap Optical Steering Static Rotary Torque SensorUS$ 202 - 600MOQ: 1 Piece
-
Shaft Rotary Dynamic Torque Sensor PriceUS$ 600 - 900MOQ: 1 Piece
-
S-type Column Tension 0.7t 1t 5t 10t Load Cell SensorUS$ 6 - 70MOQ: 1 Piece
Brand Name
Shelok
Place of Origin
China
Model Number
SLK- CHBX
The load sensor elastomer adopts a curved cantilever beam structure, one end is fixed, one end is stressed, and the structural strength is good, and can be used for carrying and measuring various tensile and compressive forces.
High precision
Stable and reliable performance
Easy to install and use
| Sensitivity | 1.5/2.0±0.002mv/v | Operating temperature | -20 ~ 70℃ |
| Rnage | 100kg,150kg,200kg | Input resistance | 380±30Ω |
| Total error | ±0.05%F.S | Output resistance | 350±5Ω |
| Ultimate overload | 300%F.S | Safe overload | 150%F.S |
| Creep | ±0.05%F.S | Zero balance | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10~12V |
| Zero temperature coefficient | ±0.05%F.S/10℃ | Ingress protection | IP68 |
| Max excitation voltage | 15V | Output temperature effect | ±0.05%F.S/10℃ |
| Material | Alloy Steel/Stainless Steel | Cable | length:2m;diameter:φ5.2mm |
It is applicable to industrial automatic measurement and control systems for various force measurement and weighing such as electronic scales and weighing instruments.
