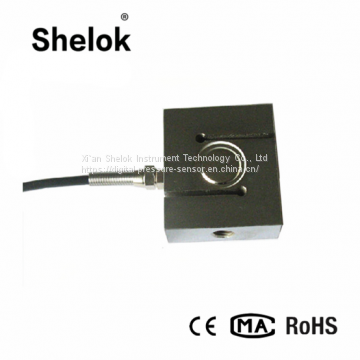

Description of stainless steel hanging push pull s load cell scale
The load cell adopts S-beam structure, and both tension and pressure can be used. Can be used for automated control equipment, weighing detection equipment.
Features of stainless steel hanging push pull s load cell scale
High measurement accuracy, good stability and good output symmetry.
Specification of stainless steel hanging push pull s load cell scale
Rated Load |
0.05-200kN |
||
Sensitivity |
2.0mv/v |
Safety overload |
150%F.S |
Overall accuracy |
0.05 |
Limit overload |
300%F.S |
Creep |
±0.05%F.S/30min |
Working temperature |
-20~65℃ |
Zero output |
±1%F.S |
Supply voltage |
10VDC |
Zero temperature influence |
≤0.05%FS/10℃ |
Output temperature drift |
≤0.05%FS/10℃ |
Input resistance |
380±30Ω |
Output Resistance |
350±3Ω |
Material |
Alloy steel/stainless steel |
Insulation Resistance |
≥5000MΩ |
Drawings of stainless steel hanging push pull s load cell scale
CLBSF
Applications of stainless steel hanging push pull s load cell scale
Widely used in belt scales, hopper scales, electromechanical combination scales, universal material testing machines, hook scales and various engineering devices.
