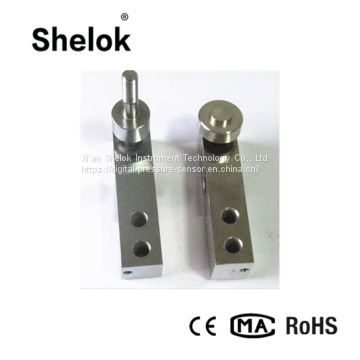

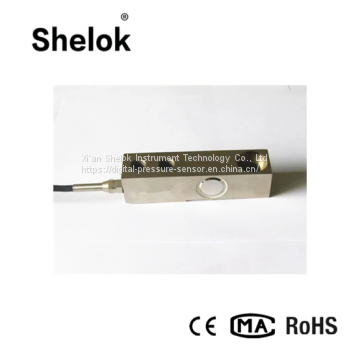

Low Cost Cantilever Beam 60 Ton Load Cell 50kg 300kg 500kg
US$ 15 - 55
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
SLK- CHBX
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
15 days
Related Products
-
4 20ma Rtd PT100 Temperature Probe TransmitterUS$ 50 - 175MOQ: 1 Piece -
Cheap Optical Steering Static Rotary Torque SensorUS$ 202 - 600MOQ: 1 Piece
-
Shaft Rotary Dynamic Torque Sensor PriceUS$ 600 - 900MOQ: 1 Piece
-
S-type Column Tension 0.7t 1t 5t 10t Load Cell SensorUS$ 6 - 70MOQ: 1 Piece
-
20t 30t 50t 100t Floor Scale Tension and Compression Load CellUS$ 6 - 70MOQ: 1 Piece
Brand Name
Shelok
Place of Origin
China
Model Number
SLK- CHBX
Description
The load sensor elastomer adopts a shearing or bending cantilever beam structure, one end is fixed, one end is stressed, the height is low, and the structural strength is high, and can be used for carrying and measuring various tensile or compressive forces.
Features
It has the characteristics of dustproof seal, wide measuring range, high precision, stable and reliable performance, convenient installation and use.
Specification
| Sensitivity | 2.0±0.05mV/V | Operating temperature | -20~80℃ |
| Nonlinearity | ±0.03%F.S | Input resistance | 350±20Ω |
| Hysteresis | ±0.03%F.S | Output resistance | 350±5Ω |
| Repeatability | ±0.02%F.S | Safe overload | 150%F.S |
| Creep | ±0.03%F.S/30min | Zero output | ±1%F.S |
| Insulation Resistance | ≥5000MΩ | Reference excitation voltage | 10-15V |
| Zero temperature coefficient | ±0.03%F.S/10℃ | Sensitivity temperature coefficient | ±0.03%F.S/10℃ |
Drawings of cantilever beam 60 ton load cell 50kg 300kg 500kg

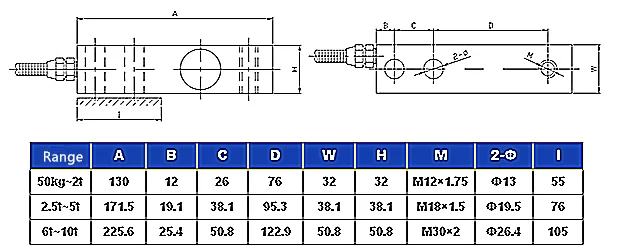

CHBX1

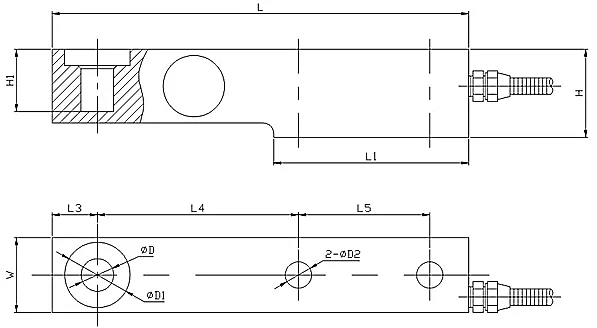

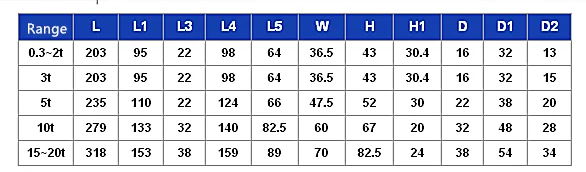

CHBX2
Application
It is applicable to industrial automatic measurement and control systems for various force measurement and weighing such as electronic scales and weighing instruments.
