Product Details
| Brand Name | CARE | Model Number | SW50A double head pipe/tube bending machine |
Product Description
SW50A Rotary double head pipe/tube bending machine, double head pipe bender, double-head pipe bending machine
Main specification:
Uses the single-chip computer control,operates easily, performance stable, double-end curving synchronization shapes work piece of the bended pipe opens, the angle is precise, Double-end curving angle may adjust from 0-180 degree, but must consider the material-taking problem. May establish two ases different angles to be curving .
1. According to different base frame, it can be divided into standard type and rotary type.
2. Hand-operated, auto, semi-circulation and other functions can be chosen.
3. Single-chip computer control, imported electric elements. The program can be stored forever, no losing.
4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.
5. Double head can be used separately.
6. Three pieces can be bended one times.
Main Technical Parameter
Item Model | SW38A | SW50A |
Main Power(Kw) | 5.5 | 7.5 |
Max. Steel, Tube O.D.(mm) | Φ38x1.8t | Φ50x2.0t |
Max. Stainless Steel, Tube O.D.(mm) | Φ32x1.8 | Φ48x2.5 |
Max. Bending Radius (mm) | 38-200 | 50-250 |
Center Distance between Two Shafts (mm) | 170-1700 | 170-1700 |
Max. Bending Angle (°) | 185 | 185 |
Bending-Pipes quantity once | Φ22x2 | Φ25x2 |
Motor power for Hydraulic (Mpa) | 14 | 14 |
Gross Weight | 1500 | 2500 |
Machine Dimension(cm) | 270x126x132 | 350x150x190 |

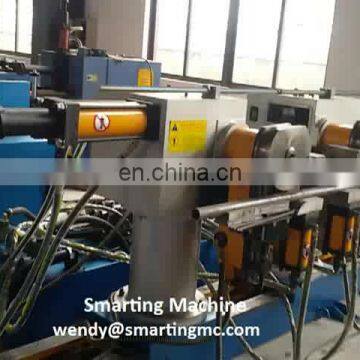

Machine photo
Bending molds

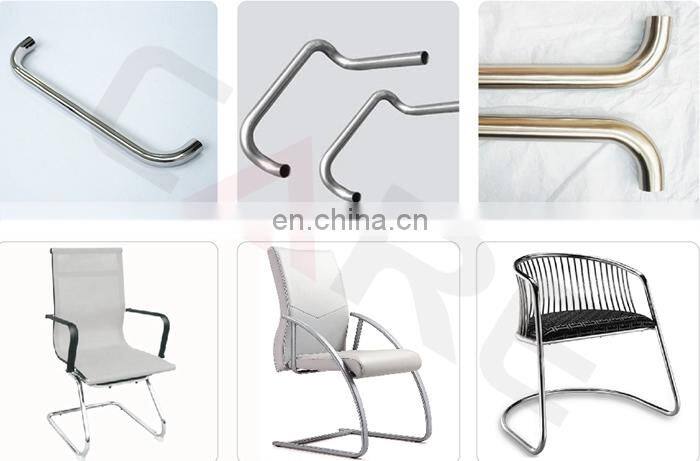

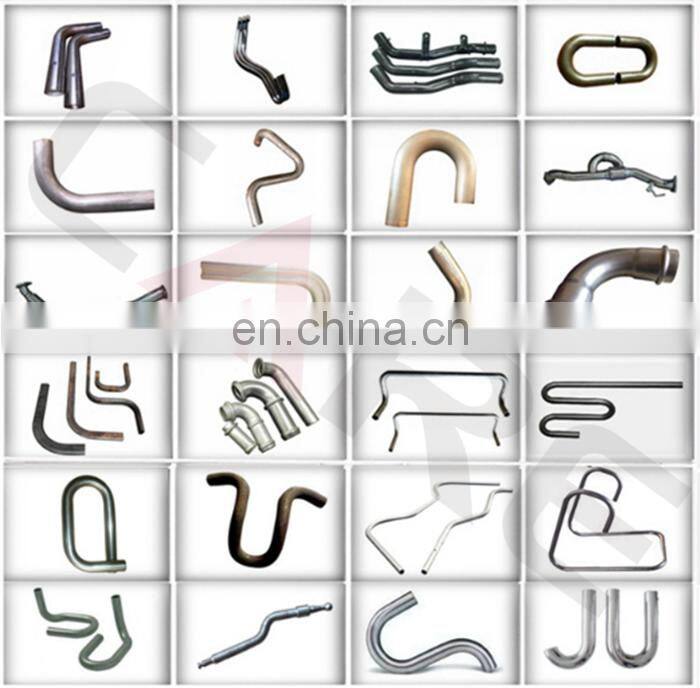

Pipe samples
More pipes bending can be customized
To know more information, please contact us.
