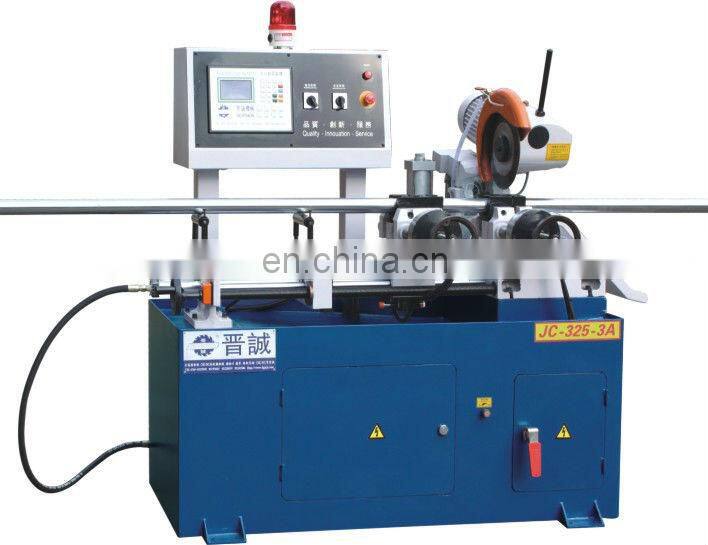

Fully automatic pneumatic metal circular sawing cut-off machine
Main features:
1.Vertical slideway cutting feed makes the cutting steady and the saw durable
2.Special design, many groups of tooth gearing, suit to heavy duty cutting, the accuracy is steady
3.Special designed feeding system, the feeding length set to 6-640m/mz(can feeding 3 times)
4.Use PLC controller, no connection point and easy repairing.
5.It stop automatic without material.
6.The sturcture is stable, low vibration and the machine is durable.
7.The cooling fluid circles automatic and makes the cutting section smoothy
8.The cutting scraps are treated together and the maintance is easy.
9.Servo motor feed is more accurate about feeding length
parameters:
| Model | JC-325-3A | |
| Head rotating angle | 90° | |
| Cutting capacity area | Solid bar | 55mm |
| Round tube | 110mm | |
| Angle steel | 100×100mm | |
| Square tube | 95×95mm | |
| Through-shaped steel | 100×100mm | |
| Retangular steel | 90×110mm | |
| Host motor | 2.4KW/2.0KW-2/4P | |
| Spindle speed | RPM 100/50 | |
| Cooling pump | 1/8HP | |
| Compressed air pressure | 4-6kgs/cm2 | |
| Circular saw blade(Diameter) | 250mm-350mm | |
| Feeding length | 3-650mm(Standard),can feed three times,total 1950mm | |
| Machine weight | 700kg | |
| Machine dimension(L×W×H) | 1000×1650×1700 | |
| Standard fittings | HSS Saw blade 275mm | |
| HSS Saw blade,one scale,one tool box,one set of clamping mould | ||
Machine photo and package:
