EF-AC/80 Single Side Rod Chamfering Machine With High Speed
- Shanghai China
- T/T Credit Card
You May Like
-
EF-AC/115 Pneumatic Pipe End Facing Machine With Promotion Price
-
EF-AC/115 Single Head Hydraulic Solid Bar Chamfering Machine
-
EF-AC/160 Single Head Thead Rod Chamfering Machine
-
DEF-FA/80 Automatic Thread Rod Facing Machine for Outside Angle Deburring
-
DEF-FA/80 Double End Hydraulic Control Automatic Steel Rod Chamfering Machine
-
EF-AC/230 Big Diameter Tube End Deburring Machine for Bevelling
Product Details
| Brand Name | CARE | Model Number | EF-AC/80 single side rod chamfering machine |
Product Description
EF-AC/80 single side rod chamfering machine with high speed
Application:
This machine is controlled by pneumatic. Feeding / retracting and clamping by pneumatic, loading by hand. It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutter head and clamp.
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Main parameter:
| Specification/Model | EF-PV/52 | EF-AC/80 |
| Main motor power | 1.5KW | 2.2kw |
| Main axis speed | According to the pipe material | |
| Processing diameter | 9-52mm | 30-82mm |
| Processing external angle | 9-25mm | 20-50mm |
| compressed air | 6-8GS/cm2 | 6-8GS/cm2 |
| Size | 450mmx 400mm x 800mm | 500mmx 400mm x 850mm |
| Weight | 300kg | 400kg |

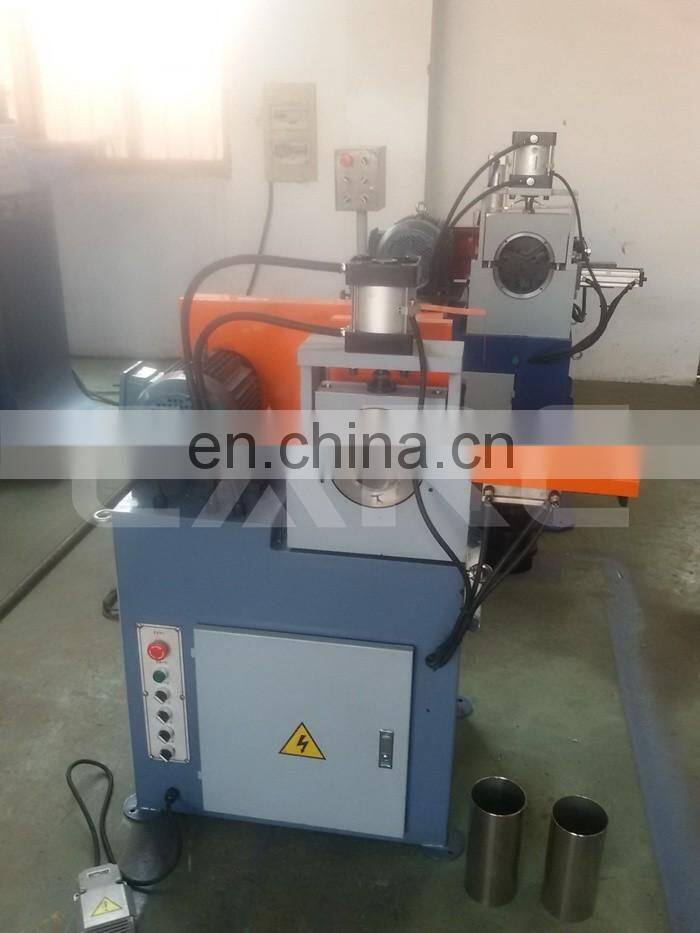

Machine photo

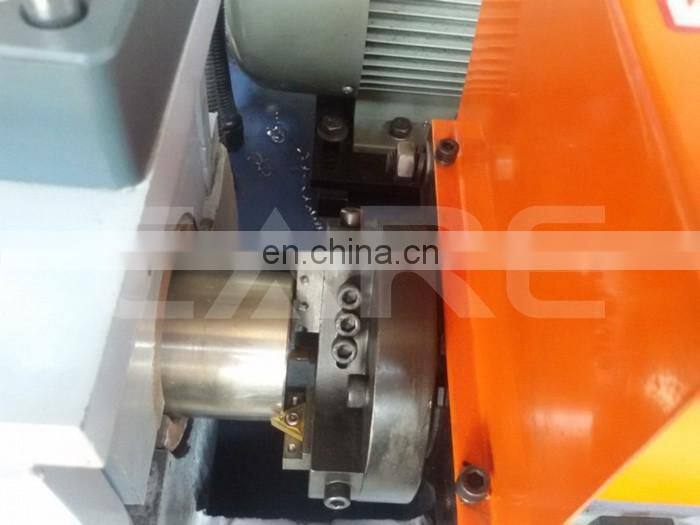

Chamfer outside angle

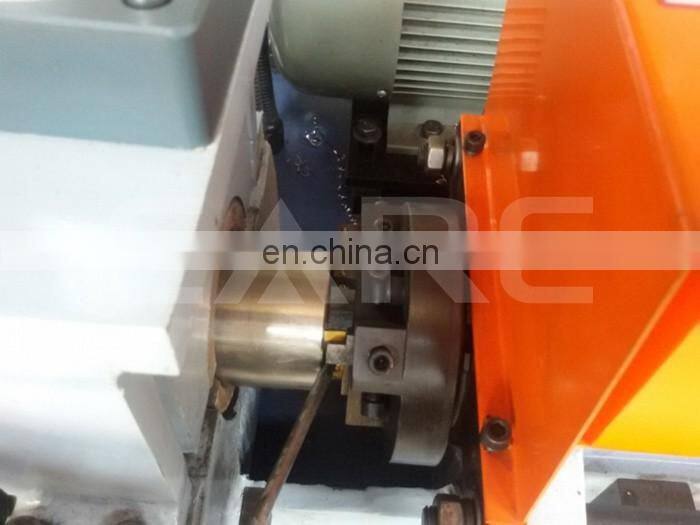

Chamfering inside angle

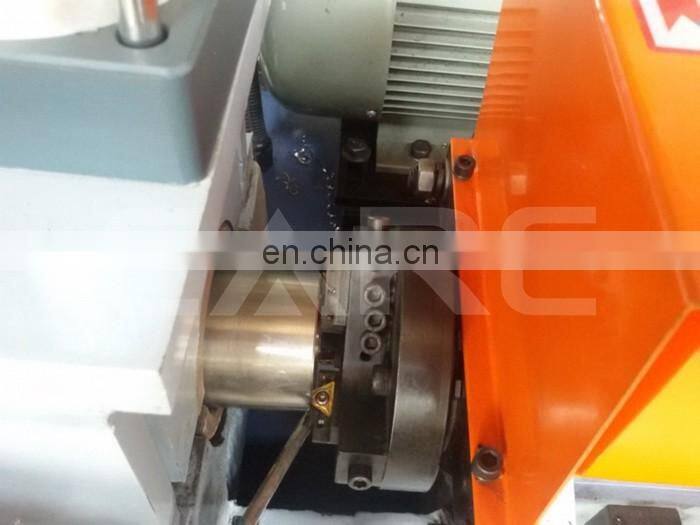

Chamfer facing angle

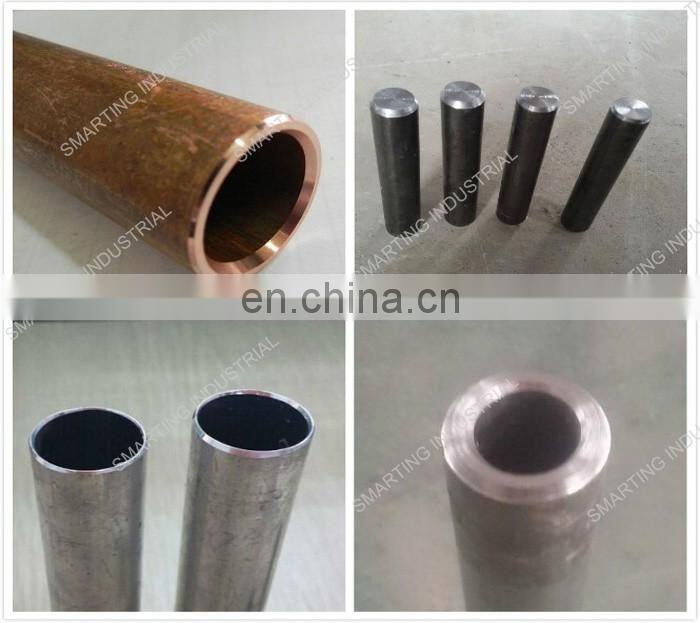

Pipe/rod sample
To know more information, please contact us at any time.
