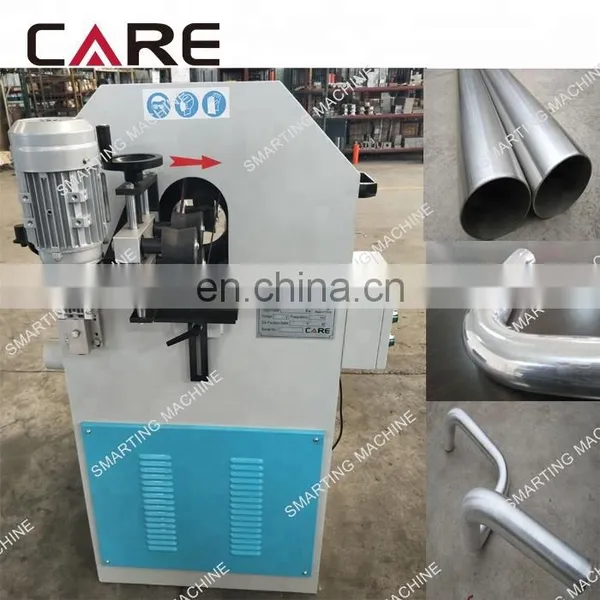

P-100 Automatic Grinding Belt Curved Pipe Polishing Machine for Max Stainless Steel Pipe 110mm photo-2
P-100 Automatic Grinding Belt Curved Pipe Polishing Machine for Max Stainless Steel Pipe 110mm photo-3
P-100 Automatic Grinding Belt Curved Pipe Polishing Machine for Max Stainless Steel Pipe 110mm photo-4
P-100 Automatic Grinding Belt Curved Pipe Polishing Machine for Max Stainless Steel Pipe 110mm photo-5
US$ 8,200 - 8,500 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
CARE
Contact Supplier Request Quote Chat Now
Smarting Import&Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CARE

P-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mm

Main features

1) Belt finishing machines for round or oval tube, straight or curved.

2) RT Planetary system: soft and perfect finishing in one step with great flexibility.

3) Automatic feeding with 2 units of 4 driving rollers.

4) Wide range of finishes with speed inverters on abrasive belts and feeding units.

5) Ergonomy, strength and high quality construction.

6) Innovative methods, greater productivity and improved quality.

Technical parameter

Polishing pipe range

10-110mm

Main power

4Kw

Grinding belt motor power

2.2Kw

Grinding belt motor rotating speed

1200-3300Rpm

Grinding belt speed

7.8-18m/s

Main wheel motor

1.5Kw

Grinding belt size

940x50mm

Voltage

380V/50Hz/3P

Electric current

<20A

Feeding speed

0.7-4m/Minute

Feeding motor

0.12KwX2

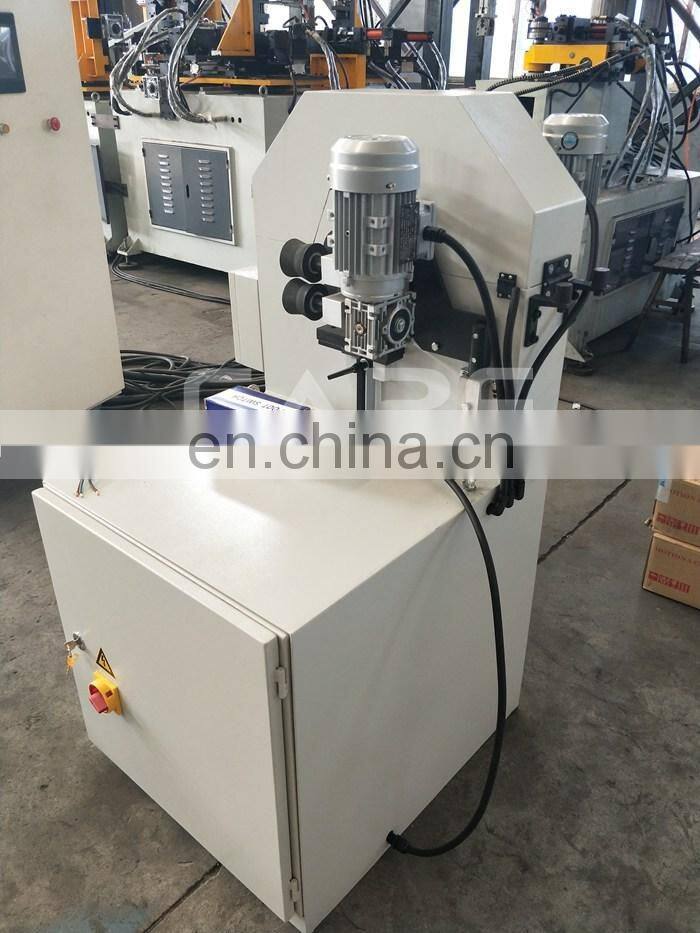

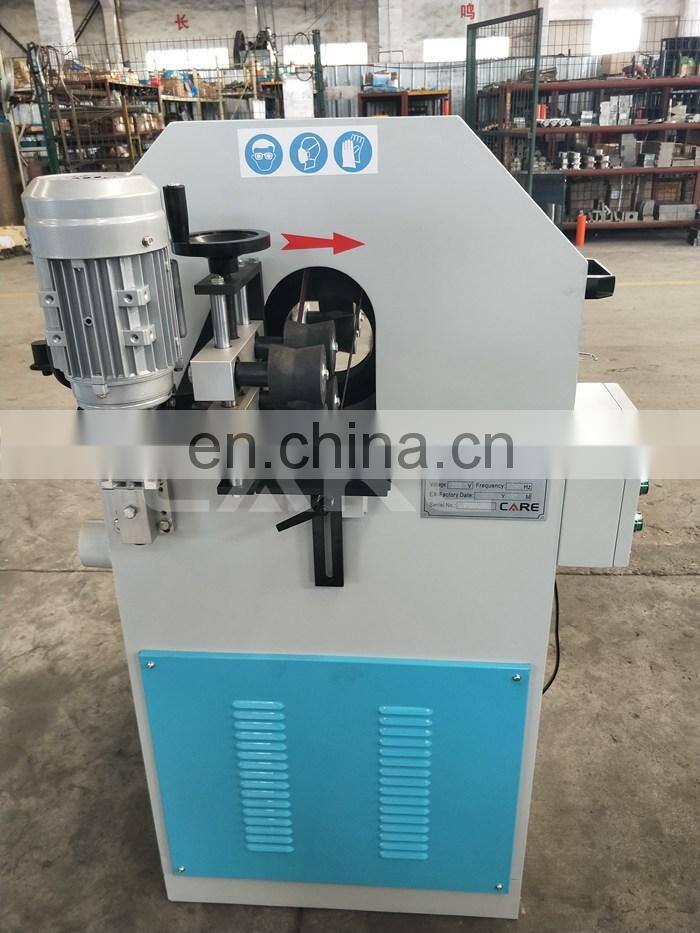

Machine photo

P-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mmP-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mm

P-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mm

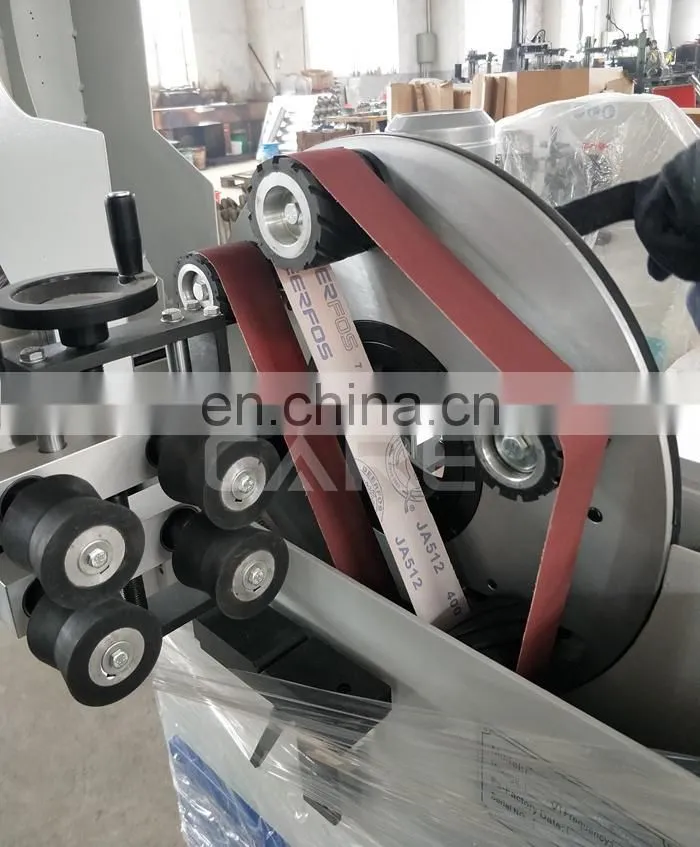

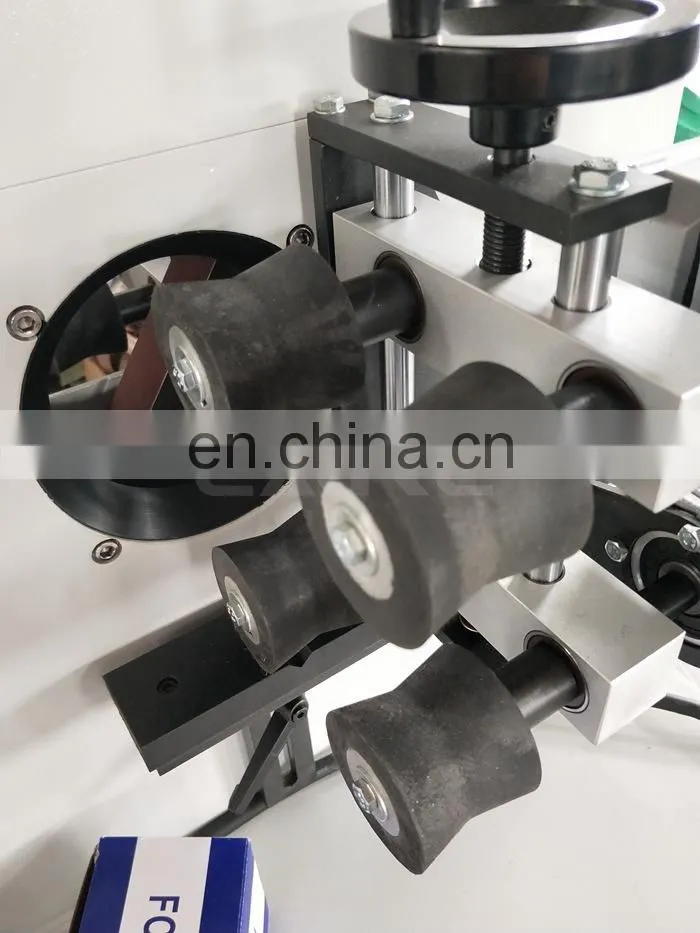

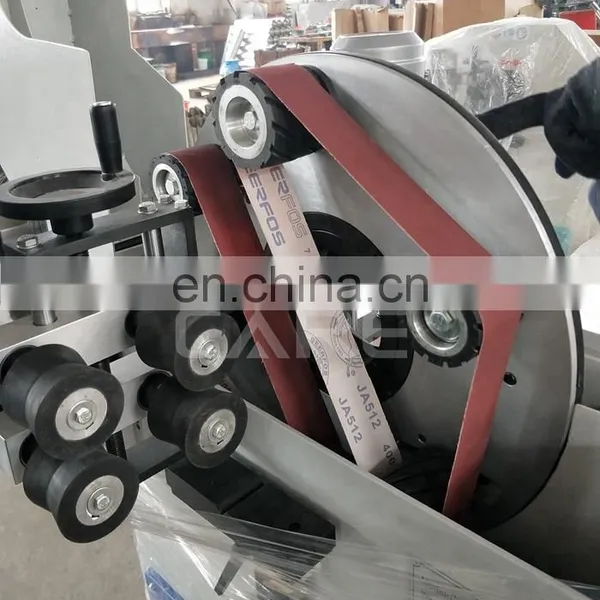

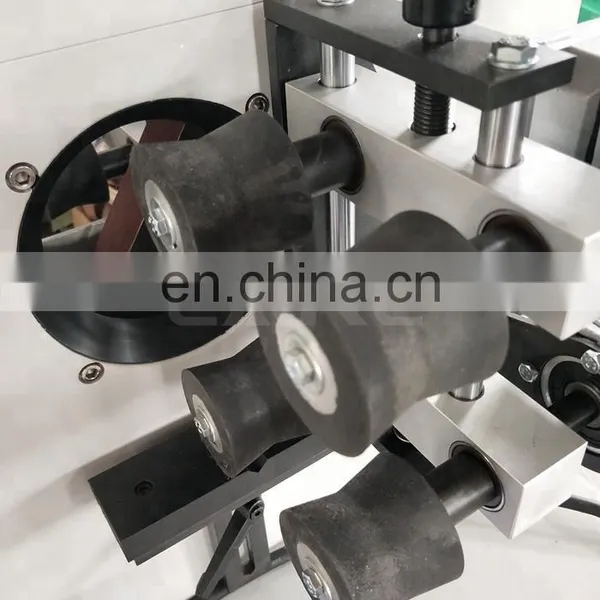

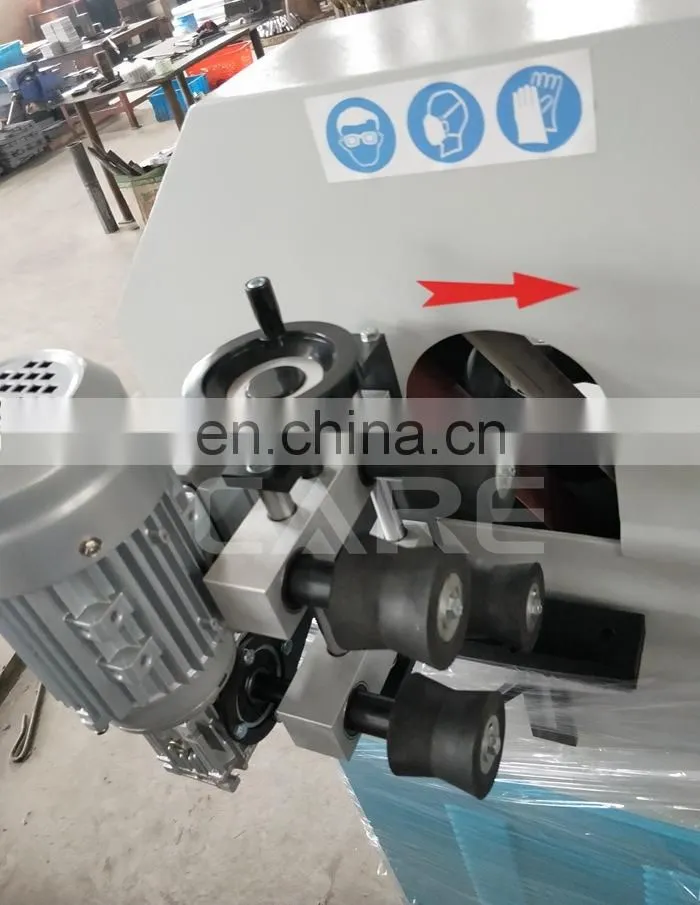

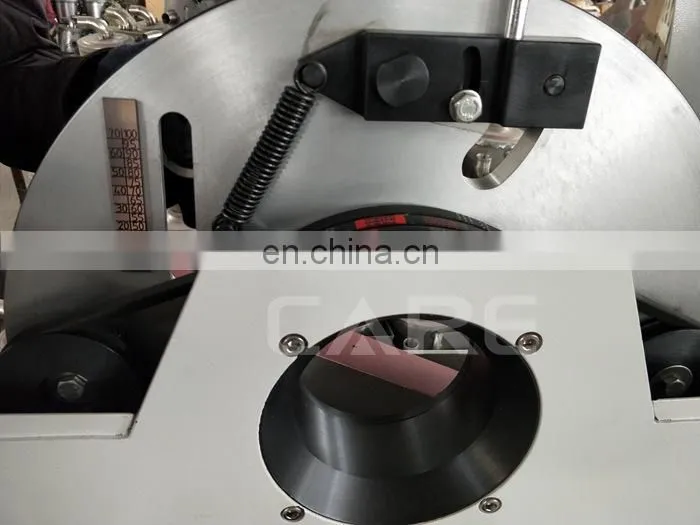

Main parts

P-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mmP-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mmP-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mmP-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mm

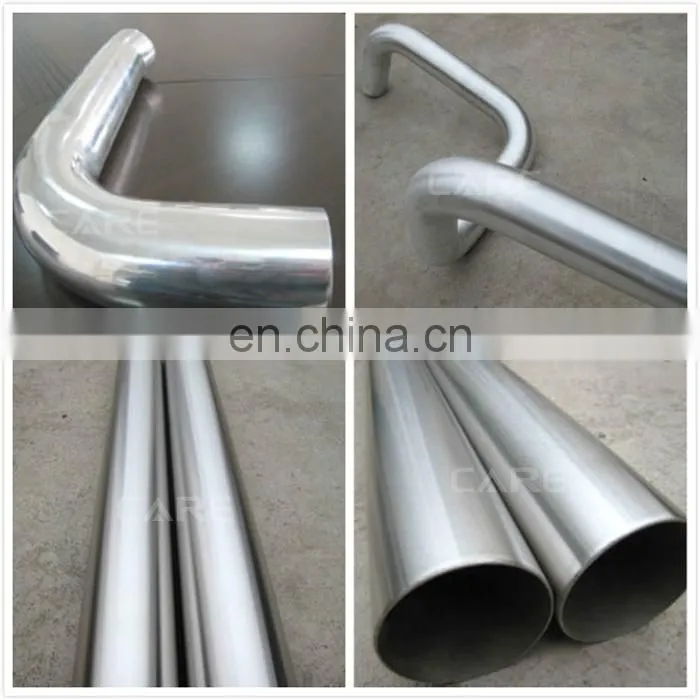

Pipe samples

P-100 Automatic grinding belt curved pipe polishing machine for max stainless steel pipe 110mm
