PH-125CNC Automatic hydraulic square pipe hole punching machine with PLC control
Machine features:
Steel Pipe Punching Machine Suitable for Material : can punch steel pipes, Aluminum Pipes, Zinc-iron Pipes, Galavized Pipes Ect for windon, door, security fence, Bed making .
1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes.
4. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
5. When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.
6. The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.
Technical parameter
No. |
Item |
Parameter |
1 |
Maximum punching force |
40-150T |
|
2
|
Max punching capacity |
150*150*6mm(Square pipe) |
50*120*6mm(Rectangle pipe, Cu profile steel, J angle steel) | ||
180*6mm(Round pipe) | ||
3 |
Maxinum punching thickness |
6mm(Q235) |
4 |
Feeding |
Servo motor |
5 |
Feeding speed |
Max 700mm/s adjustabe |
6 |
Feeding precision |
±0.1mm |
7 |
Angle rotating |
Manual |
8 |
Hydraulic pressure |
25Mpa |
9 |
Oil pump output |
21ml/r |
10 |
Oil pump motor |
7.5Kw |
11 |
Feeding servo motor |
1.5Kw |

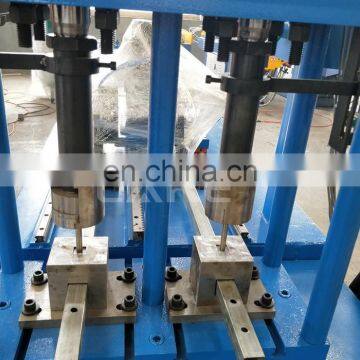

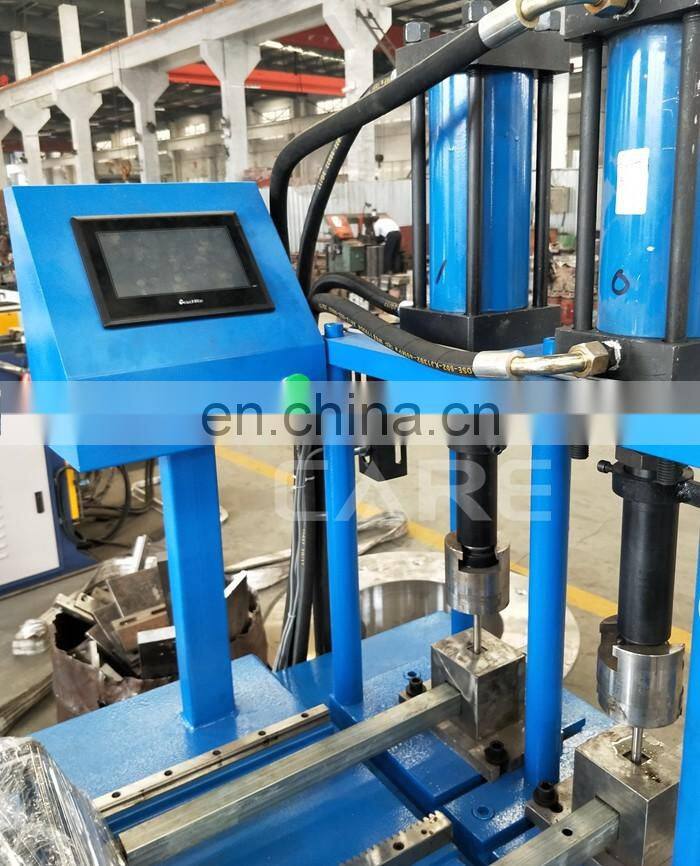

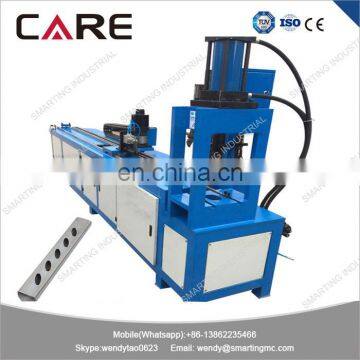

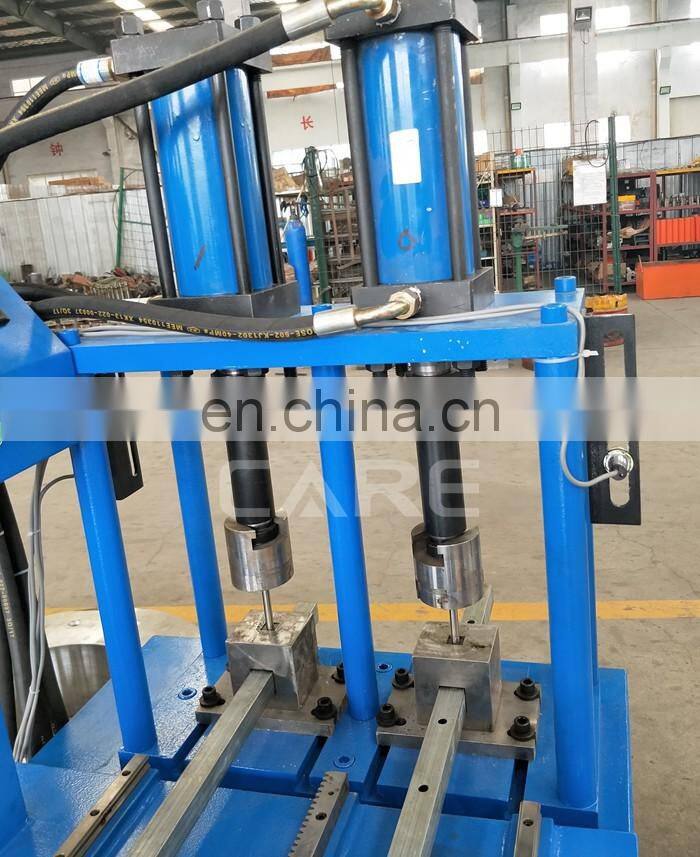

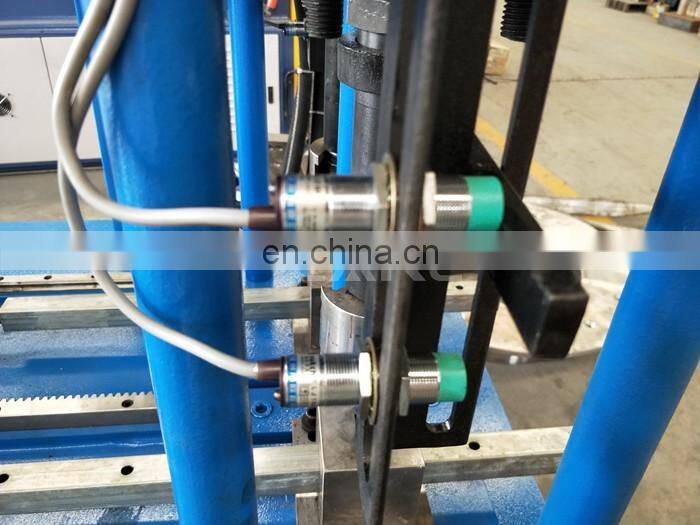

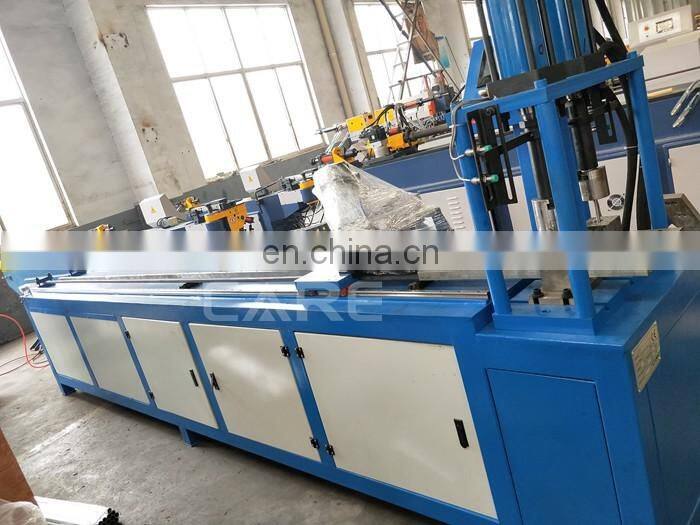

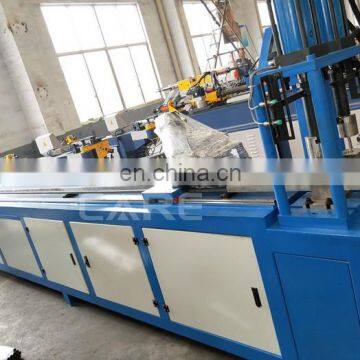

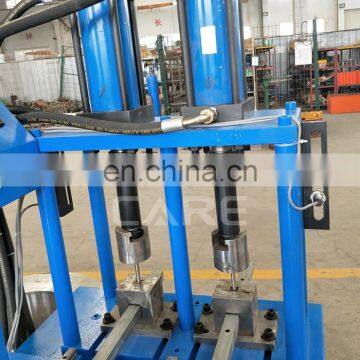

Machine photo

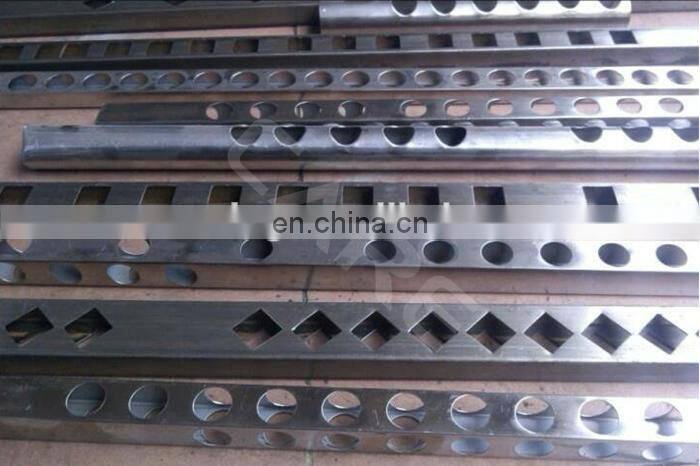

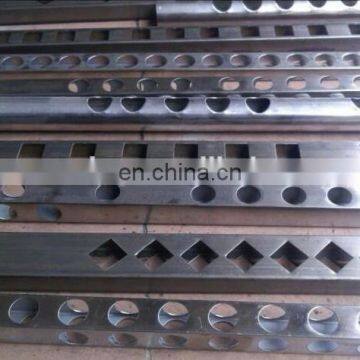

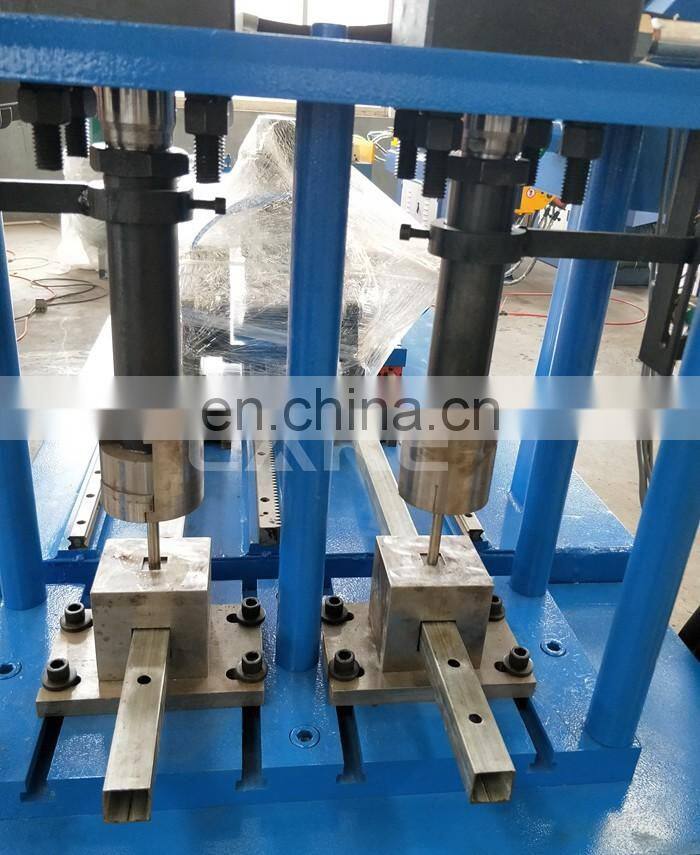

Pipe samples

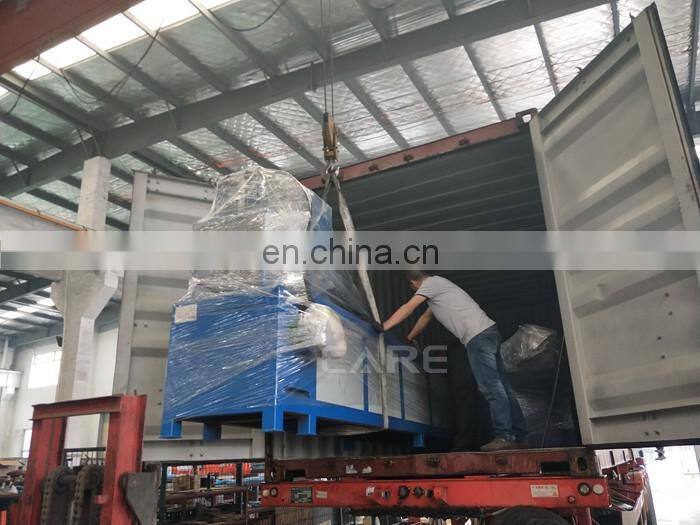

Delivery photo
