Servo Motor CJK6150B-1*750 CNC Lathe

FOB Price

US$ 7,500 - 12,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HaiShu		Place of Origin	Shandong, China
Model Number	CJK6150B-1*750 CNC Lathe		Condition	New

Packaging Details

it will be packed in one wooden case ,with packed size of 2050*1250*1600mm,packed weight according to your machine.

Product Description

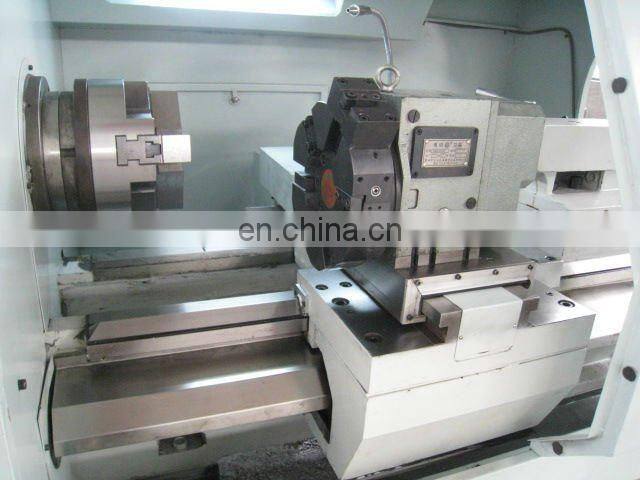

CJK6150B-1*750 CNC Lathe with Servo Motor

MAIN FEATURES
1 Spindle brake way by electric brake
2.Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor
3.Imported or homemade CNC system
4.Rotary various workpiece surface automatically turning,precision maching
5.The boby of the lathe has good rigidity,the guide is treated by super audio quenching with high hardness,grinding the surface with high accuracy.
6The carriage adopts plastic paste processing.wear small,high precision,long life.
7. Electronic hand wheel equipped,easy operation

SPECIFICATIONS

ITEMS	Specifications
Max.swim over bed	Φ500mm
Max.swim over carriage	Φ290mm
Max.length of work piece	750/1000/1500mm
Range of spindle speed	20-100 100-550 400-1600rpm
Spindle bore	Φ82mm
Taper of spindle bore	1:20
Stations of tool carrier	4/6/8/or gang-type tool carrier
Min.setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 10m/min,(X) cross 8 m/min
Taper of taikstock quill	MT5
Max.range of tailstock quill	150mm
Motor power	7.5KW
Packing size(lenght×width×height)	2600/2850/3350 mm×1300 mm×1750mm
Net weight	2600/2800/3200kg
