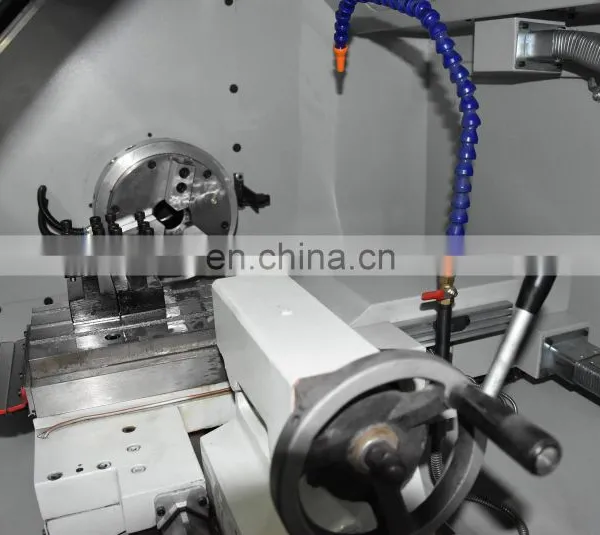

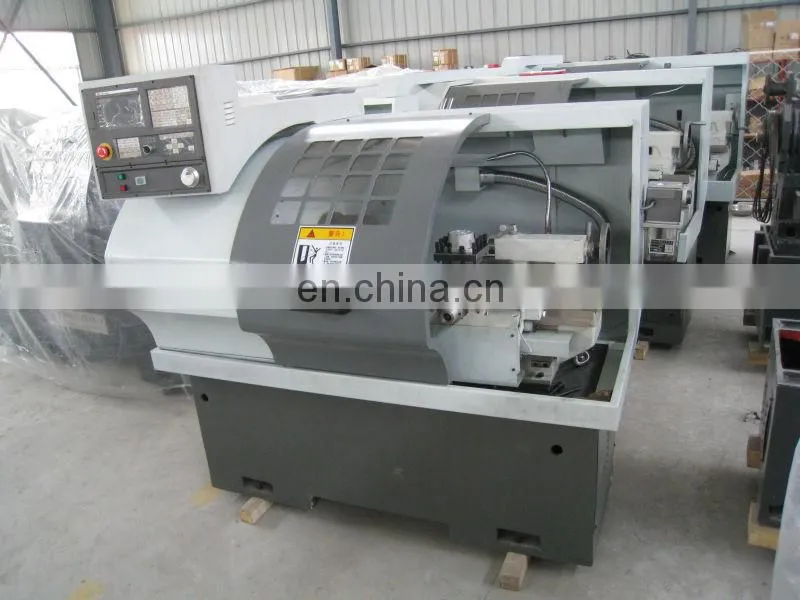

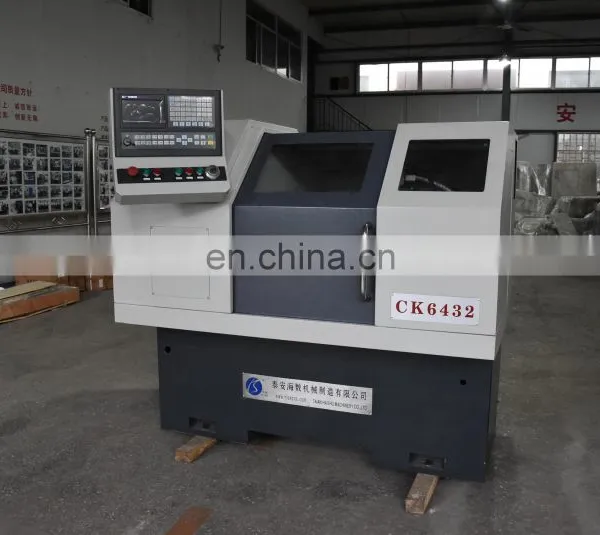

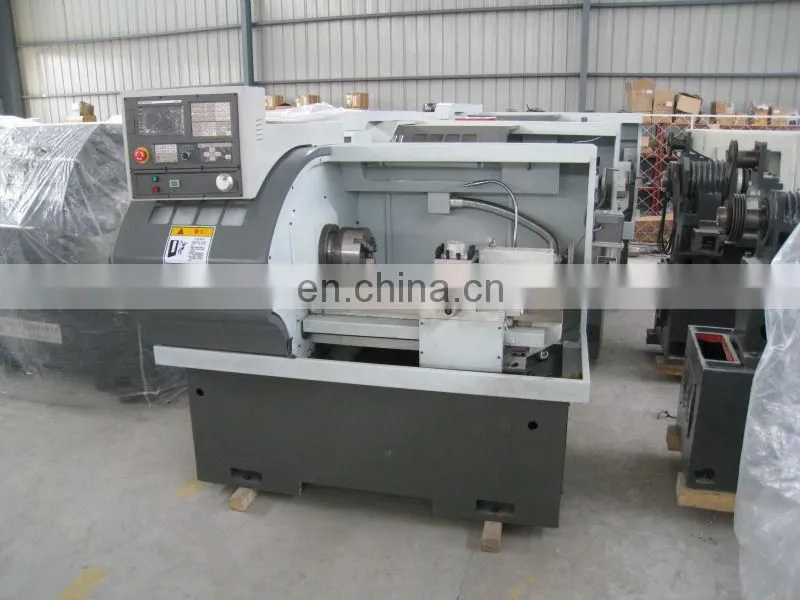

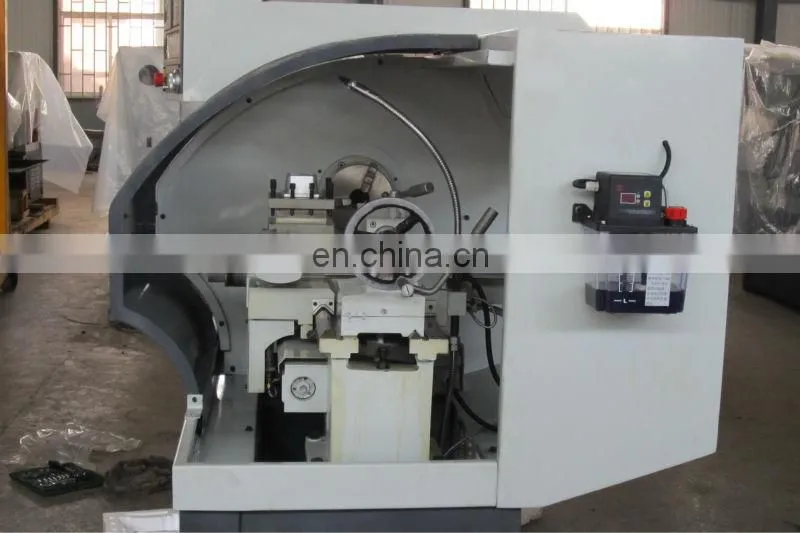

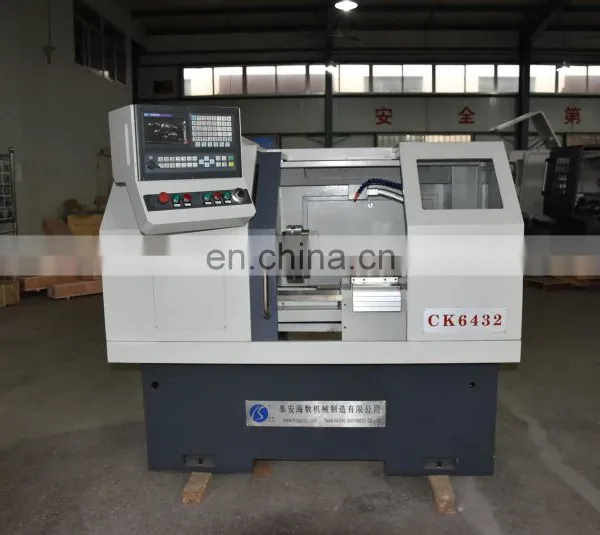

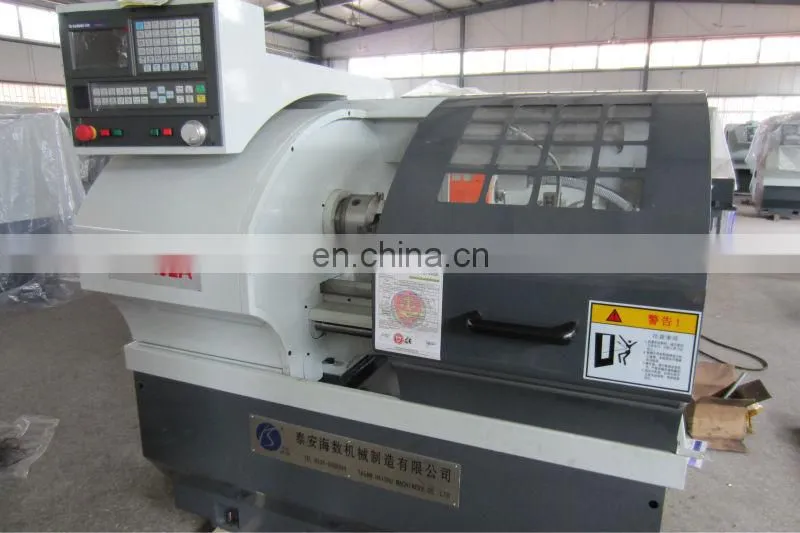

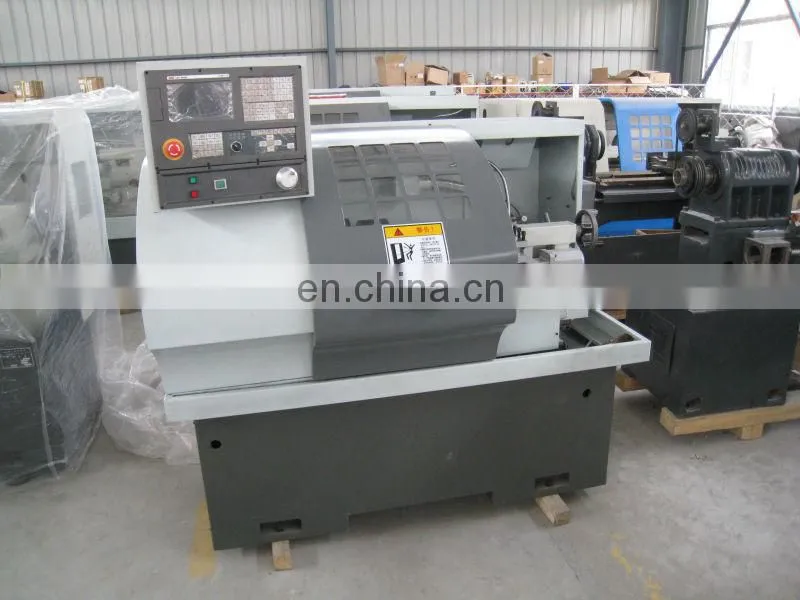

cnc lathe 6132 economic new horizontal type
Item |
Project name |
Technical paramaters |
CK6132A | ||
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ320 |
Max.swiming over pallet(mm) |
Φ140 |
|
Max.the workpiece length(mm) |
450 |
|
|
Main transmission |
Main transmission form |
Independent spindle, stepless frequency conversion timing |
Number of spindle speeds |
stepless |
|
Range of spindle speed(r/min) |
100~2000 |
|
Spindle centering axial taper |
MT5 |
|
Spindle bore(mm) |
42mm |
|
Chuck size(mm) |
160mm |
|
Main motor power(kw) |
3kw |
|
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:450 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
|
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
|
Workpiece accuracy |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
|
|
tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
100 |
|
Taper of tailstock quill |
MT4 |
|
|
Tool post |
Standard accessories |
4 electric tool post |
Opinional accessories |
gang-type tool camier |
|
Repeat positioning accuracy(mm) |
0.008 |
|
Section of turning tool(mm) |
16*16 |
|
|
Size and weight |
The size of the machine (length*width*height)(mm) |
1815*1165*1800 |
Net weight of the machine(kg) |
1200 |
Standard accessories |
optional accessories |
|
1. GSK 928 TE CNC controller 2. 3- jaw manual chuck 3. Electric Lubrication 4. 4 Positions tool post 5. Work light 6. Foundation pads 7. coolant 8. manual tailstock 9. User's Manual, Operational Manual |
1. GSK 980TDB, FANUC or SIEMENS CNC controller 2. Pneumatic chuck, hydraulic chuck 3. 6,8 positions tool post 4. pneumatic tailstock, hydraulic tailstock 5. other
|
